SDO HMI 2014-07-09 19:13:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.18 | 0.00 | 5.34 | -18.95 | 223.01 | 18.75 | 217.79 | 0.5221 | -472.8 | -470.3 | |
|
previous
or next observation for the same group /

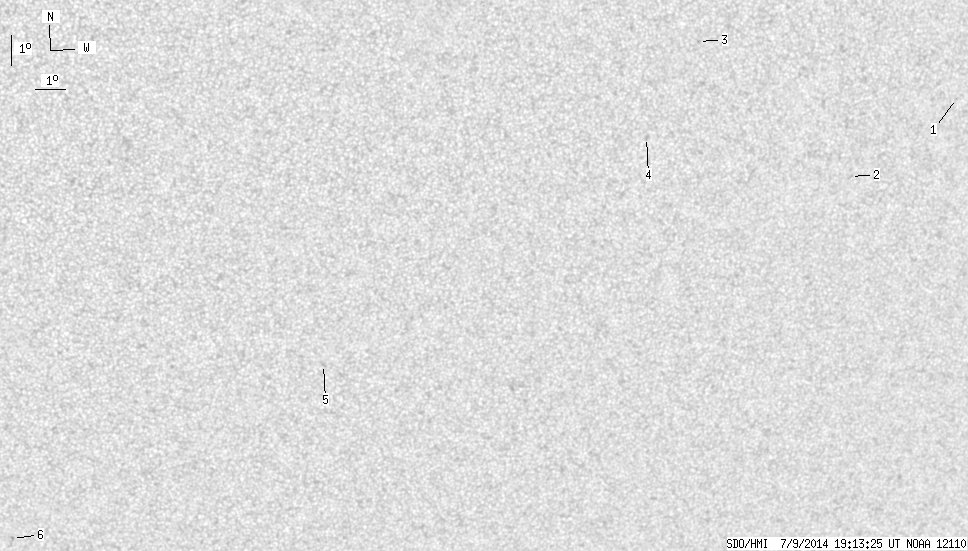

back to the solar disc SDO HMI 2014-07-09 19:13:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.56 | -14.37 | 236.55 | 32.29 | 239.76 | 0.6012 | 724.0 | 603.6 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -16.76 | 233.04 | 28.78 | 233.35 | 0.5768 | -595.0 | -539.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.25 | 227.15 | 22.89 | 234.51 | 0.4688 | -711.0 | -603.2 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -15.28 | 225.69 | 21.43 | 227.58 | 0.4794 | -665.0 | -552.3 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -22.57 | 215.53 | 11.27 | 202.19 | 0.4799 | -747.0 | -632.8 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -28.57 | 205.24 | 0.98 | 181.60 | 0.5373 | -843.0 | -678.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
