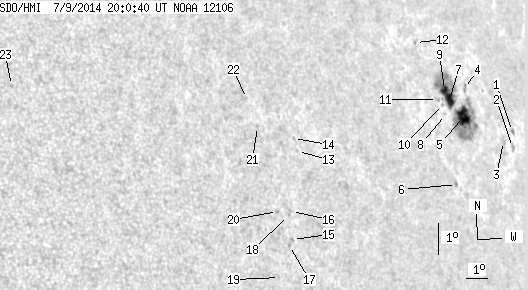

SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.22 | 146.26 | 32.35 | 136.39 | 14.61 | 261.54 | 57.71 | 284.92 | 0.8476 | -365.4 | -176.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 2.09 | 0.56 | 2.16 | 13.87 | 265.17 | 61.34 | 283.75 | 0.8790 | -358.5 | -279.9 | |
| 0.00 | 3.09 | 0.00 | 3.16 | 13.38 | 264.95 | 61.13 | 283.21 | 0.8770 | -489.0 | -407.9 | |
| 0.00 | 2.90 | 0.00 | 2.93 | 13.60 | 264.46 | 60.64 | 283.49 | 0.8731 | -361.0 | -353.6 | |
| 0.00 | 3.09 | 0.00 | 2.98 | 15.36 | 262.79 | 58.96 | 285.65 | 0.8601 | -272.0 | -187.1 | |
| 17.52 | 67.81 | 16.67 | 64.55 | 14.50 | 262.35 | 58.52 | 284.69 | 0.8556 | -632.9 | -174.7 | |
| 0.00 | 1.72 | 0.00 | 1.58 | 12.45 | 261.13 | 57.31 | 282.37 | 0.8434 | -554.0 | -481.9 | |
| 10.44 | 48.84 | 9.78 | 45.75 | 15.07 | 261.75 | 57.92 | 285.41 | 0.8508 | -686.2 | -264.0 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 14.62 | 261.32 | 57.49 | 284.93 | 0.8466 | -636.0 | -588.9 | |
| 5.72 | -7.00 | 5.34 | -7.00 | 15.39 | 261.59 | 57.76 | 285.81 | 0.8496 | -764.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.84 | 14.94 | 261.27 | 57.45 | 285.31 | 0.8465 | -547.0 | -504.1 | |
| 0.00 | 1.91 | 0.00 | 1.75 | 15.11 | 261.05 | 57.23 | 285.53 | 0.8446 | -609.0 | -575.0 | |
| 0.00 | 1.45 | 0.00 | 1.33 | 16.93 | 260.58 | 56.75 | 287.74 | 0.8421 | 327.0 | 219.1 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 13.89 | 253.20 | 49.37 | 285.03 | 0.7652 | 529.0 | 447.6 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 14.30 | 253.13 | 49.30 | 285.58 | 0.7649 | 435.0 | 425.5 | |
| 0.00 | 1.45 | 0.00 | 1.09 | 11.21 | 252.27 | 48.44 | 281.62 | 0.7517 | 586.0 | 480.2 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 12.06 | 252.42 | 48.60 | 282.75 | 0.7543 | 432.0 | 406.5 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 11.03 | 252.09 | 48.26 | 281.41 | 0.7494 | 620.0 | 517.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 11.95 | 252.25 | 48.43 | 282.61 | 0.7523 | 521.0 | 487.7 | |
| 0.00 | 0.64 | 0.00 | 0.47 | 10.07 | 251.42 | 47.60 | 280.20 | 0.7410 | 599.0 | 542.9 | |
| 0.00 | 1.18 | 0.00 | 0.88 | 12.10 | 251.77 | 47.95 | 282.87 | 0.7470 | 516.0 | 375.8 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 14.75 | 251.54 | 47.72 | 286.45 | 0.7482 | 554.0 | 487.5 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 15.64 | 251.29 | 47.47 | 287.67 | 0.7470 | 502.0 | 438.9 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 16.49 | 241.36 | 37.54 | 291.75 | 0.6312 | 623.0 | 490.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
