SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.06 | 1608.71 | 147.09 | 851.53 | -7.70 | 220.93 | 17.10 | 235.87 | 0.3534 | 874.5 | 302.8 | |
|
previous
or next observation for the same group /

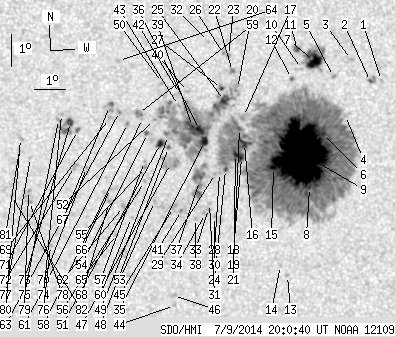

back to the solar disc SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.88 | -5.72 | 224.41 | 20.59 | 245.31 | 0.3867 | 668.0 | 572.1 | |
| 0.82 | 4.63 | 0.44 | 2.48 | -5.74 | 224.05 | 20.23 | 244.87 | 0.3816 | 878.0 | 711.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.05 | 223.41 | 19.59 | 245.86 | 0.3675 | -830.0 | -710.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -6.77 | 223.28 | 19.45 | 241.51 | 0.3779 | -89.0 | -45.2 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -5.56 | 222.84 | 19.02 | 243.93 | 0.3626 | -872.0 | -728.3 | |
| 1.91 | 1169.75 | 1.02 | 622.32 | -7.32 | 222.58 | 18.76 | 239.35 | 0.3724 | 1000.0 | 464.9 | |
| 13.07 | 39.58 | 6.91 | 20.91 | -5.08 | 222.21 | 18.39 | 244.38 | 0.3500 | 1155.0 | 576.1 | |
| 0.27 | -6.00 | 0.15 | -6.00 | -8.99 | 222.21 | 18.38 | 235.05 | 0.3817 | 1060.0 | 999999 | |
| 215.96 | -6.00 | 115.00 | -6.00 | -7.92 | 221.90 | 18.07 | 236.99 | 0.3680 | 1715.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.29 | 221.80 | 17.98 | 243.32 | 0.3454 | 563.0 | 486.4 | |
| 1.72 | 3.81 | 0.91 | 2.01 | -4.70 | 221.66 | 17.83 | 244.69 | 0.3391 | 1007.5 | 742.8 | |
| 0.36 | 1.72 | 0.19 | 0.91 | -5.59 | 221.49 | 17.66 | 242.13 | 0.3431 | 1096.2 | 847.5 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -11.74 | 221.65 | 17.83 | 228.58 | 0.4015 | -776.0 | -592.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.42 | 221.40 | 17.58 | 228.80 | 0.3951 | -772.0 | -663.3 | |
| 2.45 | -6.00 | 1.30 | -6.00 | -8.34 | 221.01 | 17.19 | 234.70 | 0.3598 | 1453.5 | 999999 | |
| 5.54 | -6.00 | 2.92 | -6.00 | -7.57 | 220.05 | 16.22 | 234.95 | 0.3398 | 1238.7 | 999999 | |
| 0.00 | 5.90 | 0.00 | 3.10 | -6.73 | 219.99 | 16.16 | 236.95 | 0.3313 | 278.0 | 298.0 | |
| 3.18 | -6.00 | 1.67 | -6.00 | -8.01 | 219.97 | 16.14 | 233.78 | 0.3428 | 1290.6 | 999999 | |
| 0.91 | -6.00 | 0.48 | -6.00 | -7.10 | 219.87 | 16.05 | 235.82 | 0.3330 | 888.4 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.61 | -5.86 | 219.77 | 15.94 | 238.88 | 0.3206 | -443.0 | -360.0 | |
| 3.63 | -6.00 | 1.91 | -6.00 | -7.91 | 219.77 | 15.95 | 233.68 | 0.3393 | 1431.4 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -5.33 | 219.59 | 15.77 | 240.04 | 0.3137 | -933.0 | -714.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -4.84 | 219.46 | 15.63 | 241.23 | 0.3077 | -1002.0 | -792.7 | |
| 1.09 | -6.00 | 0.57 | -6.00 | -8.37 | 219.47 | 15.65 | 232.05 | 0.3398 | 1180.9 | 999999 | |
| 5.63 | 195.72 | 2.94 | 102.01 | -6.23 | 219.36 | 15.54 | 237.24 | 0.3181 | -532.2 | 81.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -4.77 | 219.30 | 15.47 | 241.16 | 0.3048 | -845.0 | -729.6 | |
| 1.00 | 2.18 | 0.52 | 1.14 | -5.85 | 219.26 | 15.43 | 238.07 | 0.3133 | -907.7 | -729.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.46 | 219.28 | 15.46 | 231.51 | 0.3383 | 859.0 | 623.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.49 | 219.16 | 15.33 | 231.21 | 0.3370 | 930.0 | 718.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.83 | 219.18 | 15.36 | 228.23 | 0.3514 | -619.0 | -433.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.42 | 219.00 | 15.18 | 228.80 | 0.3448 | -402.0 | -220.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -4.40 | 218.81 | 14.99 | 241.50 | 0.2947 | -745.0 | -601.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -9.58 | 218.98 | 15.15 | 228.41 | 0.3462 | -115.0 | -144.2 | |
| 0.00 | 2.81 | 0.00 | 1.49 | -9.73 | 218.89 | 15.07 | 227.90 | 0.3467 | -534.0 | -500.0 | |
| 5.63 | -25.00 | 2.94 | -25.00 | -7.49 | 218.77 | 14.94 | 232.93 | 0.3218 | 1159.0 | 999999 | |
| 4.81 | -25.00 | 2.51 | -25.00 | -7.11 | 218.60 | 14.77 | 233.57 | 0.3159 | 1395.4 | 999999 | |
| 0.00 | 31.41 | 0.00 | 16.49 | -8.70 | 218.65 | 14.83 | 229.79 | 0.3327 | 780.0 | 290.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -9.88 | 218.58 | 14.75 | 226.98 | 0.3446 | -665.0 | -488.8 | |
| 1.36 | -25.00 | 0.71 | -25.00 | -7.01 | 218.37 | 14.55 | 233.40 | 0.3119 | 1175.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -5.93 | 218.18 | 14.36 | 235.97 | 0.2989 | -615.0 | -475.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.63 | 218.12 | 14.29 | 226.64 | 0.3362 | -889.0 | -769.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.98 | 217.93 | 14.11 | 235.34 | 0.2960 | -846.0 | -616.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.35 | 217.91 | 14.09 | 234.27 | 0.2993 | -688.0 | -535.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.62 | 218.04 | 14.22 | 220.52 | 0.3704 | -730.0 | -663.4 | |
| 0.00 | 4.63 | 0.00 | 2.43 | -9.53 | 217.86 | 14.03 | 226.34 | 0.3320 | -775.0 | -637.5 | |
| 0.00 | 2.81 | 0.00 | 1.50 | -12.30 | 217.99 | 14.17 | 221.00 | 0.3660 | -766.0 | -595.7 | |
| 0.00 | 19.79 | 0.00 | 10.32 | -8.15 | 217.71 | 13.89 | 229.23 | 0.3151 | -62.0 | -102.1 | |
| 0.45 | 1.54 | 0.24 | 0.80 | -7.65 | 217.63 | 13.81 | 230.31 | 0.3087 | -708.0 | -556.9 | |
| 0.00 | 4.45 | 0.00 | 2.31 | -7.28 | 217.62 | 13.80 | 231.24 | 0.3047 | -530.0 | -509.0 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -5.63 | 217.39 | 13.56 | 235.27 | 0.2852 | -814.0 | -666.8 | |
| 3.63 | 5.45 | 1.89 | 2.83 | -7.52 | 217.37 | 13.55 | 230.10 | 0.3041 | -964.8 | -710.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -6.77 | 217.16 | 13.34 | 231.62 | 0.2935 | -861.0 | -752.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.33 | 217.25 | 13.42 | 225.51 | 0.3225 | -873.0 | -682.3 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -7.21 | 216.95 | 13.13 | 230.04 | 0.2953 | -914.0 | -783.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.26 | 216.92 | 13.10 | 227.30 | 0.3065 | -783.0 | -624.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.70 | 216.91 | 13.08 | 226.22 | 0.3112 | -781.0 | -513.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.07 | 216.89 | 13.06 | 227.68 | 0.3040 | -790.0 | -695.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.74 | 216.78 | 12.96 | 230.92 | 0.2882 | -552.0 | -532.5 | |
| 0.00 | 4.72 | 0.00 | 2.44 | -6.58 | 216.65 | 12.83 | 231.06 | 0.2848 | -1028.0 | -823.4 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -9.82 | 216.54 | 12.71 | 222.88 | 0.3200 | -726.0 | -615.0 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -6.88 | 216.32 | 12.49 | 229.48 | 0.2837 | -913.0 | -705.3 | |
| 0.00 | 2.81 | 0.00 | 1.47 | -9.47 | 216.27 | 12.45 | 223.04 | 0.3128 | -847.0 | -731.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -6.51 | 216.06 | 12.23 | 229.92 | 0.2763 | -1041.0 | -861.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -4.93 | 215.99 | 12.17 | 234.46 | 0.2592 | -856.0 | -648.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -10.34 | 216.08 | 12.26 | 220.73 | 0.3215 | -701.0 | -600.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.90 | 215.84 | 12.02 | 223.32 | 0.3011 | -784.0 | -613.3 | |
| 0.00 | 7.17 | 0.00 | 3.69 | -6.35 | 215.74 | 11.91 | 229.62 | 0.2705 | -811.0 | -859.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.31 | 215.82 | 12.00 | 222.35 | 0.3058 | -916.0 | -763.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.72 | 215.75 | 11.92 | 228.60 | 0.2747 | -760.0 | -646.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.23 | 215.06 | 11.24 | 223.00 | 0.2841 | -828.0 | -619.2 | |
| 0.64 | 2.63 | 0.33 | 1.35 | -7.08 | 214.75 | 10.93 | 225.14 | 0.2666 | -929.9 | -660.2 | |
| 0.00 | 4.18 | 0.00 | 2.15 | -8.20 | 214.69 | 10.86 | 222.11 | 0.2794 | -1032.0 | -794.7 | |
| 3.00 | 15.61 | 1.54 | 8.01 | -6.83 | 214.53 | 10.70 | 225.23 | 0.2609 | -1074.0 | -900.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.58 | 214.24 | 10.42 | 225.15 | 0.2545 | -975.0 | -755.4 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -6.73 | 214.15 | 10.33 | 224.47 | 0.2553 | -1065.0 | -843.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -10.66 | 214.01 | 10.18 | 214.97 | 0.3044 | -871.0 | -687.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.90 | 213.30 | 9.48 | 218.99 | 0.2604 | -783.0 | -528.0 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -9.27 | 213.31 | 9.48 | 215.86 | 0.2788 | -930.0 | -764.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.93 | 213.27 | 9.44 | 216.49 | 0.2737 | -957.0 | -906.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -7.30 | 212.98 | 9.16 | 219.51 | 0.2492 | -843.0 | -634.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.65 | 212.96 | 9.13 | 218.57 | 0.2534 | -877.0 | -682.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.08 | 212.74 | 8.91 | 214.61 | 0.2706 | -802.0 | -643.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
