SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.91 | 0.00 | 10.45 | -20.64 | 219.98 | 16.15 | 211.46 | 0.5268 | -464.6 | -411.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

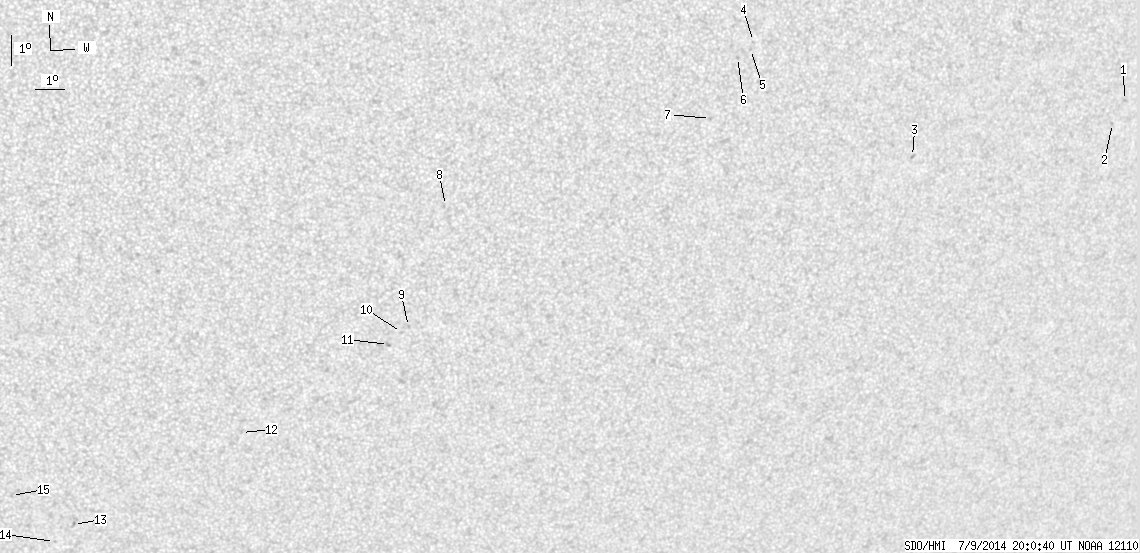

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.54 | -15.26 | 240.77 | 36.95 | 241.60 | 0.6615 | 657.0 | 650.9 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -15.99 | 240.45 | 36.62 | 240.41 | 0.6618 | 721.0 | 620.4 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -16.77 | 233.01 | 29.18 | 233.69 | 0.5815 | -640.0 | -540.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -12.89 | 226.91 | 23.09 | 233.61 | 0.4767 | -521.0 | -475.2 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -13.14 | 226.83 | 23.01 | 233.09 | 0.4780 | -594.0 | -485.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.38 | 226.41 | 22.59 | 232.17 | 0.4751 | -829.0 | -664.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -15.32 | 225.70 | 21.87 | 228.08 | 0.4848 | -825.0 | -656.9 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -17.95 | 217.09 | 13.27 | 210.63 | 0.4302 | -441.0 | -502.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.97 | 216.19 | 12.36 | 204.63 | 0.4783 | -690.0 | -519.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.17 | 215.97 | 12.14 | 204.07 | 0.4797 | -626.0 | -492.2 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -22.57 | 215.57 | 11.74 | 203.00 | 0.4828 | -670.0 | -639.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -25.54 | 210.81 | 6.98 | 192.63 | 0.5035 | -762.0 | -631.8 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -28.78 | 205.15 | 1.32 | 182.15 | 0.5407 | -662.0 | -590.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -29.40 | 204.49 | 0.67 | 181.06 | 0.5495 | -436.0 | -355.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -27.73 | 203.00 | -0.82 | 178.61 | 0.5249 | -651.0 | -535.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
