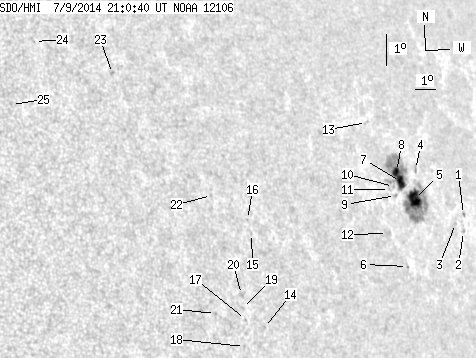

SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.05 | 145.07 | 29.75 | 136.32 | 14.67 | 261.28 | 58.01 | 284.96 | 0.8503 | -325.7 | -175.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.53 | 13.84 | 265.20 | 61.93 | 283.68 | 0.8837 | -293.0 | -296.5 | |
| 0.00 | 1.27 | 0.00 | 1.32 | 13.32 | 264.97 | 61.70 | 283.11 | 0.8816 | -524.0 | -428.8 | |
| 0.00 | 0.91 | 0.00 | 0.93 | 13.60 | 264.56 | 61.29 | 283.44 | 0.8784 | -572.0 | -559.5 | |
| 0.00 | 2.45 | 0.00 | 2.40 | 15.39 | 262.81 | 59.54 | 285.63 | 0.8650 | -149.0 | -134.4 | |
| 15.89 | 63.82 | 15.35 | 61.70 | 14.51 | 262.35 | 59.08 | 284.65 | 0.8604 | -622.1 | -191.1 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 12.45 | 261.11 | 57.84 | 282.34 | 0.8483 | -540.0 | -510.0 | |
| 9.35 | 51.11 | 8.89 | 48.53 | 15.07 | 261.74 | 58.47 | 285.36 | 0.8556 | -671.1 | -295.3 | |
| 5.81 | -7.00 | 5.51 | -7.00 | 15.39 | 261.64 | 58.37 | 285.75 | 0.8550 | -744.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.36 | 14.66 | 261.26 | 57.99 | 284.92 | 0.8510 | -639.0 | -588.5 | |
| 0.00 | 0.91 | 0.00 | 0.85 | 14.94 | 261.26 | 57.99 | 285.26 | 0.8513 | -554.0 | -578.2 | |
| 0.00 | 0.82 | 0.00 | 0.76 | 14.86 | 260.99 | 57.72 | 285.19 | 0.8488 | -578.0 | -493.9 | |
| 0.00 | 4.81 | 0.00 | 4.39 | 13.52 | 260.33 | 57.06 | 283.67 | 0.8419 | -66.0 | -130.4 | |
| 0.00 | 2.00 | 0.00 | 1.85 | 17.00 | 260.59 | 57.32 | 287.74 | 0.8472 | 335.0 | 241.3 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 10.99 | 253.09 | 49.82 | 281.19 | 0.7669 | 193.0 | 215.4 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 13.90 | 253.23 | 49.96 | 284.95 | 0.7715 | 523.0 | 453.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 14.34 | 253.17 | 49.90 | 285.52 | 0.7714 | 515.0 | 466.3 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 11.28 | 252.25 | 48.98 | 281.65 | 0.7578 | 592.0 | 486.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 10.45 | 252.02 | 48.75 | 280.59 | 0.7544 | 553.0 | 498.1 | |
| 0.00 | 1.27 | 0.00 | 0.96 | 11.65 | 252.20 | 48.93 | 282.15 | 0.7575 | 572.0 | 464.6 | |
| 0.00 | 3.00 | 0.00 | 2.27 | 12.05 | 252.25 | 48.98 | 282.67 | 0.7585 | 525.0 | 396.8 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 11.53 | 250.90 | 47.63 | 282.15 | 0.7428 | 591.0 | 553.3 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 15.16 | 251.68 | 48.41 | 286.85 | 0.7566 | 535.0 | 387.9 | |
| 0.00 | 1.45 | 0.00 | 1.05 | 19.17 | 248.38 | 45.11 | 292.97 | 0.7291 | 691.0 | 630.1 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 20.33 | 245.28 | 42.01 | 295.60 | 0.6982 | 517.0 | 462.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 18.39 | 243.69 | 40.42 | 293.47 | 0.6730 | 537.0 | 490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
