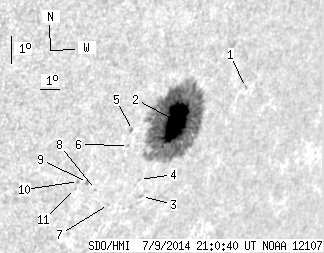

SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.83 | 335.80 | 46.60 | 290.35 | -19.13 | 254.19 | 50.92 | 243.46 | 0.8220 | 833.3 | 246.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.27 | -18.15 | 257.52 | 54.25 | 245.74 | 0.8479 | -377.0 | -357.7 | |
| 53.83 | 325.35 | 46.60 | 281.58 | -19.09 | 254.25 | 50.98 | 243.53 | 0.8224 | 1017.6 | 260.3 | |
| 0.00 | 0.91 | 0.00 | 0.79 | -21.53 | 253.56 | 50.29 | 240.46 | 0.8246 | 489.0 | 417.6 | |
| 0.00 | 0.73 | 0.00 | 0.62 | -20.95 | 253.18 | 49.91 | 240.98 | 0.8193 | 153.0 | 225.4 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -19.27 | 252.11 | 48.84 | 242.48 | 0.8036 | 623.0 | 585.8 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -19.76 | 252.11 | 48.84 | 241.90 | 0.8054 | 439.0 | 400.8 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -21.72 | 251.97 | 48.70 | 239.58 | 0.8115 | 516.0 | 483.2 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -21.17 | 251.08 | 47.81 | 239.83 | 0.8014 | -369.0 | -295.5 | |
| 0.00 | 2.27 | 0.00 | 1.85 | -20.91 | 250.58 | 47.32 | 239.91 | 0.7959 | -552.0 | -445.4 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -20.85 | 250.13 | 46.86 | 239.77 | 0.7914 | -649.0 | -574.9 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -21.08 | 250.08 | 46.81 | 239.47 | 0.7920 | -529.0 | -498.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
