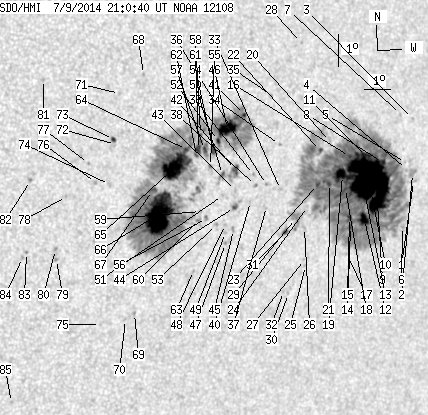

SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 350.50 | 1755.81 | 223.78 | 1118.71 | -6.98 | 240.82 | 37.55 | 253.89 | 0.6305 | 106.8 | 63.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.19 | -7.13 | 245.96 | 42.69 | 255.66 | 0.6967 | 273.0 | 246.3 | |
| 0.00 | 6.35 | 0.00 | 4.37 | -6.88 | 245.89 | 42.62 | 255.99 | 0.6952 | -138.0 | -92.5 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -5.17 | 245.72 | 42.45 | 258.36 | 0.6887 | -190.0 | -200.6 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -6.74 | 245.62 | 42.35 | 256.09 | 0.6915 | 401.0 | 297.9 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -6.52 | 245.56 | 42.29 | 256.38 | 0.6901 | 322.0 | 247.7 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -8.52 | 245.67 | 42.40 | 253.62 | 0.6974 | -219.0 | -174.9 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -5.03 | 245.21 | 41.95 | 258.43 | 0.6820 | 632.0 | 536.2 | |
| 4.18 | 913.68 | 2.81 | 606.40 | -6.48 | 244.60 | 41.33 | 256.14 | 0.6782 | 673.8 | 400.7 | |
| 26.96 | -8.00 | 18.20 | -8.00 | -7.72 | 244.53 | 41.26 | 254.34 | 0.6810 | 774.1 | 999999 | |
| 110.66 | -8.00 | 73.90 | -8.00 | -6.95 | 244.08 | 40.81 | 255.28 | 0.6730 | 1277.5 | 999999 | |
| 5.99 | -8.00 | 3.98 | -8.00 | -6.26 | 243.93 | 40.66 | 256.23 | 0.6691 | 986.9 | 999999 | |
| 7.63 | -8.00 | 5.12 | -8.00 | -8.22 | 244.06 | 40.79 | 253.44 | 0.6769 | 982.4 | 999999 | |
| 3.99 | -8.00 | 2.64 | -8.00 | -6.25 | 243.56 | 40.30 | 256.14 | 0.6645 | 1064.9 | 999999 | |
| 2.81 | -8.00 | 1.87 | -8.00 | -8.42 | 243.52 | 40.25 | 252.96 | 0.6708 | 765.9 | 999999 | |
| 2.00 | -8.00 | 1.33 | -8.00 | -8.13 | 243.44 | 40.17 | 253.34 | 0.6689 | 1016.7 | 999999 | |
| 1.91 | -8.00 | 1.26 | -8.00 | -6.23 | 243.24 | 39.97 | 256.05 | 0.6603 | 1208.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -9.26 | 243.46 | 40.20 | 251.73 | 0.6731 | 318.0 | 297.2 | |
| 0.91 | -8.00 | 0.60 | -8.00 | -7.22 | 243.18 | 39.91 | 254.57 | 0.6626 | 1231.6 | 999999 | |
| 14.34 | -8.00 | 9.43 | -8.00 | -6.81 | 243.02 | 39.75 | 255.11 | 0.6592 | 1319.5 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.18 | -5.74 | 242.44 | 39.17 | 256.52 | 0.6486 | 603.0 | 509.2 | |
| 1.91 | -8.00 | 1.24 | -8.00 | -7.04 | 242.52 | 39.25 | 254.60 | 0.6536 | 1060.3 | 999999 | |
| 1.36 | -8.00 | 0.88 | -8.00 | -6.00 | 242.07 | 38.80 | 255.99 | 0.6445 | 820.3 | 999999 | |
| 1.82 | -8.00 | 1.18 | -8.00 | -7.05 | 242.04 | 38.78 | 254.40 | 0.6476 | 1074.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -7.72 | 241.72 | 38.45 | 253.27 | 0.6457 | 652.0 | 557.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -9.56 | 241.86 | 38.59 | 250.60 | 0.6544 | 693.0 | 566.1 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -8.37 | 241.67 | 38.40 | 252.28 | 0.6475 | 879.0 | 716.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -9.37 | 241.80 | 38.53 | 250.85 | 0.6529 | 776.0 | 621.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -2.63 | 241.13 | 37.86 | 260.92 | 0.6231 | 558.0 | 451.8 | |
| 0.00 | 15.52 | 0.00 | 10.00 | -8.07 | 241.29 | 38.02 | 252.56 | 0.6415 | 438.0 | 433.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -10.41 | 241.31 | 38.04 | 249.09 | 0.6510 | 689.0 | 624.5 | |
| 1.63 | 3.81 | 1.05 | 2.45 | -8.49 | 240.94 | 37.67 | 251.77 | 0.6386 | -452.0 | -322.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -10.34 | 241.10 | 37.83 | 249.10 | 0.6482 | 721.0 | 545.5 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -7.14 | 240.61 | 37.34 | 253.68 | 0.6293 | 217.0 | 192.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -5.74 | 240.45 | 37.18 | 255.79 | 0.6225 | -445.0 | -414.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -4.22 | 240.04 | 36.77 | 258.07 | 0.6124 | 749.0 | 615.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -6.96 | 240.05 | 36.78 | 253.73 | 0.6214 | -645.0 | -537.5 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -7.65 | 240.12 | 36.85 | 252.69 | 0.6248 | -269.0 | -369.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -6.98 | 239.63 | 36.36 | 253.53 | 0.6159 | 727.0 | 663.5 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -6.63 | 239.52 | 36.25 | 254.03 | 0.6132 | -123.0 | -148.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -7.47 | 239.48 | 36.22 | 252.69 | 0.6158 | -447.0 | -253.0 | |
| 1.27 | 721.96 | 0.79 | 436.98 | -4.76 | 239.05 | 35.78 | 256.84 | 0.6006 | 751.0 | -383.3 | |
| 3.54 | 11.62 | 2.19 | 7.20 | -6.45 | 238.83 | 35.56 | 254.02 | 0.6033 | -613.1 | -218.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -7.10 | 238.88 | 35.61 | 253.00 | 0.6064 | 267.0 | 252.1 | |
| 1.09 | 5.27 | 0.68 | 3.28 | -7.63 | 238.89 | 35.62 | 252.17 | 0.6086 | 868.6 | 573.5 | |
| 0.00 | 2.09 | 0.00 | 1.30 | -8.31 | 238.92 | 35.65 | 251.10 | 0.6118 | -457.0 | -386.8 | |
| 19.61 | -41.00 | 12.04 | -41.00 | -5.17 | 238.43 | 35.16 | 255.94 | 0.5935 | -1000.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -8.74 | 238.66 | 35.39 | 250.31 | 0.6102 | -356.0 | -257.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -8.15 | 238.60 | 35.33 | 251.21 | 0.6069 | -481.0 | -413.7 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -8.40 | 238.63 | 35.36 | 250.83 | 0.6083 | -625.0 | -457.8 | |
| 1.36 | 6.08 | 0.84 | 3.75 | -6.58 | 238.35 | 35.08 | 253.59 | 0.5973 | -681.9 | -505.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -7.24 | 238.40 | 35.13 | 252.56 | 0.6006 | -302.0 | -153.4 | |
| 1.91 | -41.00 | 1.17 | -41.00 | -5.53 | 238.12 | 34.85 | 255.22 | 0.5904 | -821.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -8.13 | 238.26 | 34.99 | 251.07 | 0.6023 | -659.0 | -538.2 | |
| 3.18 | -41.00 | 1.94 | -41.00 | -5.83 | 237.95 | 34.68 | 254.65 | 0.5892 | -718.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -6.32 | 237.88 | 34.61 | 253.81 | 0.5900 | -627.0 | -422.7 | |
| 0.00 | 2.36 | 0.00 | 1.45 | -7.93 | 237.86 | 34.60 | 251.19 | 0.5963 | -548.0 | -454.1 | |
| 2.18 | -41.00 | 1.33 | -41.00 | -5.78 | 237.61 | 34.35 | 254.58 | 0.5844 | -774.0 | 999999 | |
| 0.36 | -41.00 | 0.22 | -41.00 | -5.31 | 237.43 | 34.17 | 255.29 | 0.5803 | -784.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -7.70 | 237.62 | 34.35 | 251.43 | 0.5920 | 387.0 | 146.1 | |
| 0.00 | 2.72 | 0.00 | 1.67 | -7.95 | 237.60 | 34.34 | 251.03 | 0.5929 | -490.0 | -434.7 | |
| 4.09 | -41.00 | 2.48 | -41.00 | -5.77 | 237.39 | 34.12 | 254.50 | 0.5813 | -892.9 | 999999 | |
| 0.73 | -41.00 | 0.44 | -41.00 | -5.96 | 237.33 | 34.06 | 254.17 | 0.5812 | -812.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -9.54 | 237.55 | 34.28 | 248.46 | 0.5993 | -412.0 | -430.2 | |
| 1.36 | -41.00 | 0.82 | -41.00 | -5.76 | 236.95 | 33.68 | 254.33 | 0.5752 | -855.3 | 999999 | |
| 41.39 | -41.00 | 24.96 | -41.00 | -6.27 | 236.58 | 33.31 | 253.29 | 0.5720 | -1070.0 | 999999 | |
| 75.89 | -41.00 | 45.75 | -41.00 | -7.71 | 236.10 | 32.83 | 250.64 | 0.5717 | -1154.9 | 999999 | |
| 2.90 | -41.00 | 1.74 | -41.00 | -6.98 | 235.79 | 32.52 | 251.69 | 0.5642 | -1098.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -3.39 | 235.26 | 31.99 | 257.75 | 0.5432 | -572.0 | -498.7 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -10.81 | 235.51 | 32.24 | 245.21 | 0.5793 | -734.0 | -572.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -10.99 | 235.20 | 31.93 | 244.72 | 0.5763 | -574.0 | -468.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -3.94 | 234.42 | 31.15 | 256.39 | 0.5330 | -471.0 | -355.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -5.51 | 234.35 | 31.08 | 253.52 | 0.5380 | -526.0 | -530.5 | |
| 1.54 | 2.36 | 0.90 | 1.38 | -5.35 | 234.27 | 31.00 | 253.76 | 0.5362 | -777.8 | -633.9 | |
| 0.00 | 2.36 | 0.00 | 1.39 | -6.74 | 234.21 | 30.95 | 251.25 | 0.5414 | -662.0 | -386.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -11.11 | 234.30 | 31.03 | 243.90 | 0.5654 | -662.0 | -524.8 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -6.66 | 233.71 | 30.44 | 251.10 | 0.5340 | -761.0 | -677.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -6.06 | 233.42 | 30.15 | 252.01 | 0.5272 | -750.0 | -670.5 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -7.06 | 232.71 | 29.44 | 249.78 | 0.5218 | -742.0 | -591.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -9.01 | 232.51 | 29.24 | 246.16 | 0.5295 | -822.0 | -695.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -8.70 | 232.44 | 29.18 | 246.67 | 0.5269 | -912.0 | -746.2 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -3.42 | 231.72 | 28.45 | 256.13 | 0.4918 | -690.0 | -533.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -6.52 | 231.41 | 28.14 | 249.94 | 0.5009 | -857.0 | -762.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -8.76 | 231.43 | 28.16 | 245.82 | 0.5133 | -812.0 | -708.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -8.91 | 231.30 | 28.03 | 245.45 | 0.5125 | -841.0 | -636.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -13.48 | 231.39 | 28.12 | 237.75 | 0.5441 | -707.0 | -568.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
