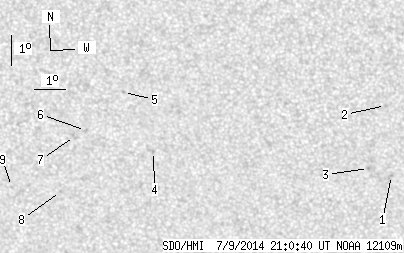

SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.35 | 0.00 | 6.82 | -21.04 | 196.78 | -6.49 | 166.24 | 0.4402 | -182.4 | -244.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.06 | 204.04 | 0.77 | 181.63 | 0.4379 | 855.0 | 691.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.71 | 203.83 | 0.56 | 181.33 | 0.4005 | 733.0 | 560.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.82 | 203.28 | 0.01 | 180.03 | 0.4340 | 846.0 | 660.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.27 | 196.23 | -7.04 | 164.90 | 0.4400 | -778.0 | -584.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.30 | 195.35 | -7.92 | 161.63 | 0.4144 | -864.0 | -643.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.58 | 194.03 | -9.24 | 159.95 | 0.4402 | -781.0 | -686.5 | |
| 0.00 | 3.18 | 0.00 | 1.76 | -20.79 | 193.65 | -9.61 | 159.38 | 0.4452 | -538.0 | -630.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.65 | 193.06 | -10.21 | 159.78 | 0.4754 | -700.0 | -576.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.50 | 191.42 | -11.85 | 156.75 | 0.4826 | -415.0 | -435.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
