SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.25 | 0.00 | 5.80 | 18.19 | 199.19 | -4.08 | 13.66 | 0.2646 | -404.9 | -424.5 | |
|
previous
or next observation for the same group /

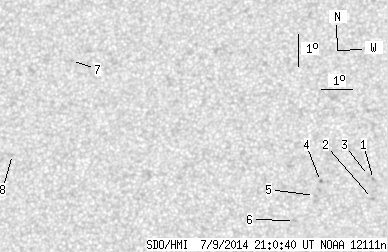

back to the solar disc SDO HMI 2014-07-09 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.88 | 18.11 | 202.14 | -1.12 | 4.31 | 0.2492 | -810.0 | -674.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 17.51 | 202.12 | -1.15 | 4.62 | 0.2392 | -930.0 | -729.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.24 | 201.98 | -1.29 | 4.88 | 0.2516 | -702.0 | -602.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 18.05 | 200.45 | -2.82 | 10.76 | 0.2519 | -897.0 | -800.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.61 | 200.26 | -3.01 | 11.82 | 0.2452 | -616.0 | -527.0 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.82 | 199.63 | -3.63 | 15.05 | 0.2347 | -886.0 | -649.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 21.83 | 192.14 | -11.13 | 29.95 | 0.3604 | 809.0 | 624.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.82 | 190.41 | -12.86 | 38.90 | 0.3368 | 793.0 | 544.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
