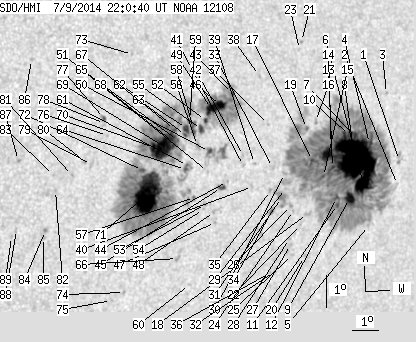

SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 358.40 | 1719.79 | 230.75 | 1104.25 | -6.99 | 240.82 | 38.10 | 254.10 | 0.6378 | 121.6 | 64.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.39 | -7.12 | 245.95 | 43.24 | 255.83 | 0.7034 | 400.0 | 263.4 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -7.87 | 245.96 | 43.25 | 254.80 | 0.7056 | 184.0 | 106.9 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -5.02 | 245.20 | 42.49 | 258.58 | 0.6887 | 518.0 | 498.3 | |
| 4.54 | 897.93 | 3.08 | 601.04 | -6.54 | 244.63 | 41.92 | 256.24 | 0.6856 | 527.4 | 401.1 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -9.10 | 244.91 | 42.19 | 252.73 | 0.6968 | -67.0 | -42.1 | |
| 27.78 | -4.00 | 18.92 | -4.00 | -7.77 | 244.52 | 41.81 | 254.45 | 0.6879 | 715.6 | 999999 | |
| 3.54 | -4.00 | 2.38 | -4.00 | -6.29 | 244.03 | 41.32 | 256.40 | 0.6775 | 953.8 | 999999 | |
| 110.21 | -4.00 | 74.25 | -4.00 | -6.94 | 244.06 | 41.34 | 255.47 | 0.6797 | 1220.9 | 999999 | |
| 8.35 | -4.00 | 5.65 | -4.00 | -8.21 | 244.00 | 41.29 | 253.64 | 0.6829 | 956.3 | 999999 | |
| 5.36 | -4.00 | 3.58 | -4.00 | -6.25 | 243.78 | 41.07 | 256.38 | 0.6742 | 934.5 | 999999 | |
| 2.36 | -4.00 | 1.59 | -4.00 | -8.38 | 243.53 | 40.82 | 253.22 | 0.6777 | 782.0 | 999999 | |
| 3.18 | -4.00 | 2.13 | -4.00 | -8.16 | 243.46 | 40.75 | 253.51 | 0.6761 | 972.4 | 999999 | |
| 2.54 | -4.00 | 1.69 | -4.00 | -7.21 | 243.19 | 40.48 | 254.78 | 0.6697 | 1139.6 | 999999 | |
| 21.70 | -4.00 | 14.40 | -4.00 | -6.84 | 243.11 | 40.40 | 255.30 | 0.6675 | 1279.0 | 999999 | |
| 1.45 | -4.00 | 0.96 | -4.00 | -7.48 | 242.86 | 40.14 | 254.27 | 0.6663 | 796.9 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.72 | -5.75 | 242.37 | 39.65 | 256.65 | 0.6549 | 557.0 | 489.9 | |
| 1.63 | -4.00 | 1.07 | -4.00 | -6.96 | 242.36 | 39.64 | 254.85 | 0.6584 | 1115.9 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.22 | -8.61 | 242.34 | 39.63 | 252.43 | 0.6638 | 531.0 | 454.9 | |
| 0.54 | -4.00 | 0.35 | -4.00 | -5.96 | 242.03 | 39.31 | 256.23 | 0.6511 | 848.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -9.95 | 242.41 | 39.69 | 250.51 | 0.6695 | -50.0 | -70.0 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -3.26 | 241.66 | 38.94 | 260.22 | 0.6390 | 484.0 | 449.4 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -8.94 | 242.11 | 39.39 | 251.85 | 0.6620 | -188.0 | -156.3 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -3.50 | 241.59 | 38.87 | 259.83 | 0.6387 | 656.0 | 513.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -8.49 | 241.77 | 39.06 | 252.37 | 0.6562 | 721.0 | 591.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -9.87 | 241.91 | 39.20 | 250.42 | 0.6631 | 610.0 | 503.5 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -8.33 | 241.63 | 38.92 | 252.55 | 0.6538 | 759.0 | 716.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -9.55 | 241.79 | 39.07 | 250.82 | 0.6604 | 682.0 | 585.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -9.36 | 241.72 | 39.01 | 251.07 | 0.6588 | 553.0 | 532.1 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -7.79 | 241.37 | 38.66 | 253.24 | 0.6486 | 370.0 | 395.8 | |
| 0.00 | 2.36 | 0.00 | 1.53 | -7.32 | 241.28 | 38.57 | 253.91 | 0.6459 | 433.0 | 413.9 | |
| 0.00 | 14.62 | 0.00 | 9.48 | -8.06 | 241.25 | 38.53 | 252.78 | 0.6480 | 420.0 | 368.9 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -10.37 | 241.27 | 38.55 | 249.39 | 0.6572 | 588.0 | 593.4 | |
| 0.00 | 3.36 | 0.00 | 2.16 | -7.11 | 240.79 | 38.08 | 254.03 | 0.6388 | 464.0 | 431.9 | |
| 0.82 | 1.82 | 0.53 | 1.17 | -8.48 | 240.90 | 38.18 | 252.01 | 0.6451 | -536.0 | -382.1 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -7.82 | 240.79 | 38.07 | 252.94 | 0.6413 | -515.0 | -368.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -10.40 | 241.11 | 38.40 | 249.28 | 0.6554 | 739.0 | 564.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -5.77 | 240.52 | 37.80 | 255.98 | 0.6308 | -544.0 | -397.5 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -4.24 | 240.07 | 37.35 | 258.22 | 0.6203 | 621.0 | 566.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -6.95 | 240.08 | 37.36 | 253.97 | 0.6290 | -567.0 | -514.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -7.67 | 240.07 | 37.35 | 252.88 | 0.6315 | -450.0 | -344.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -7.00 | 239.66 | 36.94 | 253.73 | 0.6236 | 692.0 | 588.3 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -6.69 | 239.63 | 36.91 | 254.20 | 0.6222 | -309.0 | -239.5 | |
| 1.09 | 674.15 | 0.68 | 410.66 | -4.75 | 239.06 | 36.35 | 257.06 | 0.6083 | 682.0 | -391.9 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -7.47 | 239.09 | 36.37 | 252.75 | 0.6179 | 557.0 | 499.0 | |
| 2.27 | 3.90 | 1.42 | 2.45 | -7.65 | 238.87 | 36.16 | 252.38 | 0.6158 | 777.3 | 649.3 | |
| 7.99 | -43.00 | 4.95 | -43.00 | -5.10 | 238.63 | 35.92 | 256.33 | 0.6035 | -855.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -8.73 | 238.76 | 36.04 | 250.64 | 0.6187 | -376.0 | -258.4 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -8.39 | 238.68 | 35.97 | 251.14 | 0.6162 | -589.0 | -493.7 | |
| 9.71 | -43.00 | 6.00 | -43.00 | -5.18 | 238.30 | 35.58 | 256.07 | 0.5992 | -1056.0 | 999999 | |
| 1.63 | 22.60 | 1.01 | 14.08 | -6.51 | 238.32 | 35.60 | 253.93 | 0.6041 | -723.4 | -323.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -7.13 | 238.29 | 35.58 | 252.93 | 0.6061 | -125.0 | -220.8 | |
| 1.72 | -43.00 | 1.06 | -43.00 | -5.54 | 238.09 | 35.38 | 255.40 | 0.5977 | -843.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -8.15 | 238.32 | 35.60 | 251.32 | 0.6105 | -661.0 | -494.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -8.31 | 238.26 | 35.54 | 251.05 | 0.6103 | -485.0 | -438.1 | |
| 3.09 | -43.00 | 1.90 | -43.00 | -5.82 | 237.96 | 35.25 | 254.90 | 0.5969 | -720.6 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.80 | -6.31 | 237.85 | 35.13 | 254.06 | 0.5971 | -630.0 | -444.4 | |
| 0.45 | 16.70 | 0.28 | 10.33 | -7.92 | 237.88 | 35.16 | 251.48 | 0.6037 | -567.0 | -224.4 | |
| 4.27 | -43.00 | 2.62 | -43.00 | -5.77 | 237.66 | 34.94 | 254.85 | 0.5926 | -726.1 | 999999 | |
| 1.18 | -43.00 | 0.72 | -43.00 | -5.55 | 237.49 | 34.78 | 255.14 | 0.5896 | -752.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -10.64 | 238.00 | 35.28 | 247.31 | 0.6175 | -544.0 | -369.8 | |
| 0.27 | 15.16 | 0.17 | 9.33 | -6.91 | 237.52 | 34.81 | 252.93 | 0.5950 | -728.0 | -373.8 | |
| 3.72 | -43.00 | 2.28 | -43.00 | -5.76 | 237.40 | 34.68 | 254.75 | 0.5890 | -877.8 | 999999 | |
| 0.91 | -43.00 | 0.56 | -43.00 | -5.98 | 237.37 | 34.66 | 254.39 | 0.5895 | -780.3 | 999999 | |
| 1.36 | -61.00 | 0.84 | -61.00 | -7.03 | 237.46 | 34.74 | 252.70 | 0.5946 | -685.5 | 999999 | |
| 1.72 | -43.00 | 1.05 | -43.00 | -6.12 | 237.09 | 34.37 | 254.02 | 0.5861 | -653.6 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.86 | -9.80 | 237.44 | 34.72 | 248.29 | 0.6064 | -663.0 | -586.9 | |
| 1.82 | -43.00 | 1.11 | -43.00 | -5.78 | 236.95 | 34.24 | 254.54 | 0.5829 | -818.9 | 999999 | |
| 5.81 | -43.00 | 3.54 | -43.00 | -6.18 | 236.94 | 34.23 | 253.87 | 0.5843 | -751.5 | 999999 | |
| 36.22 | -43.00 | 21.98 | -43.00 | -6.29 | 236.58 | 33.86 | 253.52 | 0.5798 | -1070.6 | 999999 | |
| 5.45 | -43.00 | 3.29 | -43.00 | -6.30 | 236.21 | 33.50 | 253.31 | 0.5748 | -1409.0 | 999999 | |
| 70.45 | -43.00 | 42.75 | -43.00 | -7.73 | 236.10 | 33.39 | 250.90 | 0.5793 | -1148.1 | 999999 | |
| 2.27 | -43.00 | 1.37 | -43.00 | -7.00 | 235.86 | 33.14 | 251.97 | 0.5729 | -1096.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -3.40 | 235.29 | 32.57 | 257.93 | 0.5517 | -680.0 | -505.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -10.80 | 235.58 | 32.86 | 245.62 | 0.5874 | -728.0 | -567.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -11.03 | 235.13 | 32.41 | 244.96 | 0.5829 | -506.0 | -460.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -5.87 | 234.50 | 31.79 | 253.22 | 0.5494 | -535.0 | -436.5 | |
| 1.00 | 2.54 | 0.59 | 1.50 | -5.34 | 234.36 | 31.65 | 254.09 | 0.5454 | -796.5 | -607.2 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -5.49 | 234.37 | 31.66 | 253.82 | 0.5461 | -462.0 | -551.0 | |
| 0.00 | 3.09 | 0.00 | 1.82 | -6.75 | 233.99 | 31.27 | 251.41 | 0.5460 | -362.0 | -298.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -6.65 | 233.73 | 31.01 | 251.44 | 0.5419 | -830.0 | -780.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.06 | 233.33 | 30.61 | 250.47 | 0.5383 | -718.0 | -548.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -7.51 | 232.76 | 30.04 | 249.33 | 0.5325 | -728.0 | -558.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.04 | 232.65 | 29.94 | 250.11 | 0.5287 | -726.0 | -589.0 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -8.75 | 232.50 | 29.79 | 246.99 | 0.5355 | -896.0 | -748.0 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -8.96 | 232.45 | 29.73 | 246.58 | 0.5360 | -739.0 | -751.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -3.43 | 231.69 | 28.98 | 256.34 | 0.4996 | -672.0 | -486.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.53 | 231.38 | 28.67 | 250.24 | 0.5084 | -798.0 | -704.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.68 | 231.47 | 28.75 | 246.38 | 0.5210 | -678.0 | -527.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -8.89 | 231.31 | 28.59 | 245.89 | 0.5201 | -663.0 | -591.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
