SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.71 | 0.00 | 5.90 | -20.99 | 196.09 | -6.63 | 165.83 | 0.4395 | -204.5 | -332.4 | |
|
previous
or next observation for the same group /

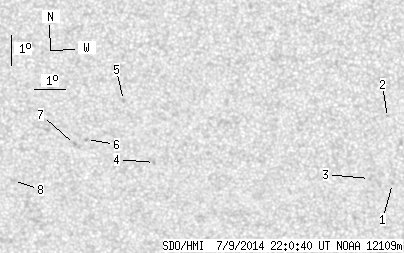

back to the solar disc SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | -22.02 | 204.04 | 1.33 | 182.82 | 0.4378 | 861.0 | 699.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -19.81 | 203.86 | 1.15 | 182.70 | 0.4025 | 561.0 | 616.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.85 | 203.29 | 0.57 | 181.23 | 0.4347 | 770.0 | 700.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.33 | 196.24 | -6.48 | 166.09 | 0.4388 | -845.0 | -677.1 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -19.26 | 195.32 | -7.40 | 162.74 | 0.4113 | -753.0 | -630.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.57 | 194.04 | -8.68 | 161.07 | 0.4372 | -796.0 | -677.7 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -20.74 | 193.63 | -9.08 | 160.40 | 0.4419 | -859.0 | -692.7 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -21.98 | 191.52 | -11.20 | 157.45 | 0.4715 | -575.0 | -525.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
