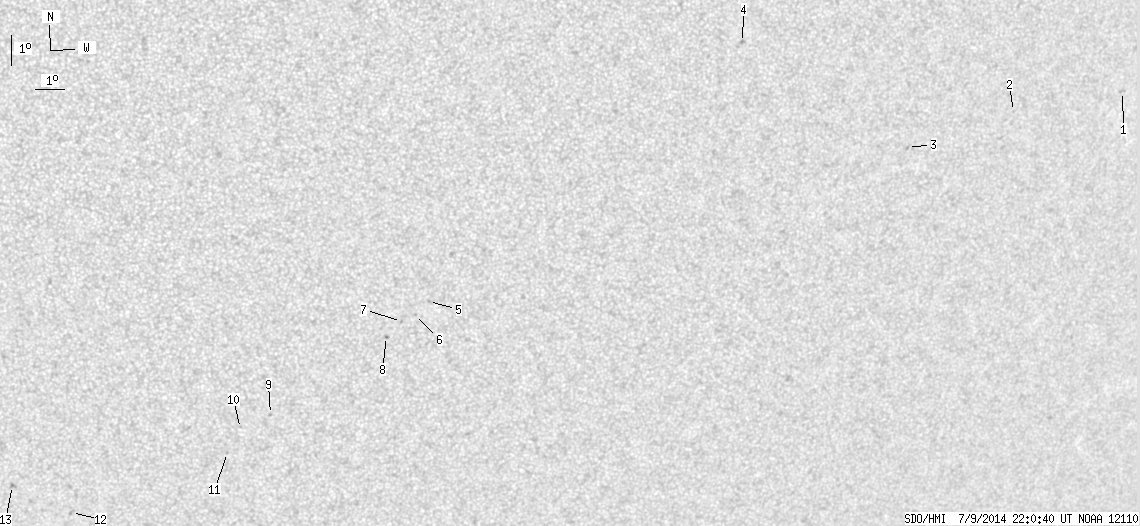

SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.06 | 0.00 | 10.10 | -22.02 | 218.45 | 15.73 | 208.60 | 0.5446 | -478.2 | -390.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.58 | -15.31 | 240.96 | 38.24 | 242.29 | 0.6766 | 691.0 | 564.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -15.78 | 236.77 | 34.05 | 238.98 | 0.6311 | 626.0 | 534.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -16.80 | 232.97 | 30.26 | 234.58 | 0.5942 | -679.0 | -597.3 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.22 | 226.62 | 23.91 | 233.96 | 0.4899 | -799.0 | -641.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.45 | 216.85 | 14.14 | 208.17 | 0.4836 | -693.0 | -632.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.88 | 216.46 | 13.74 | 207.06 | 0.4865 | -720.0 | -611.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.11 | 216.00 | 13.29 | 206.07 | 0.4865 | -723.0 | -654.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.61 | 215.54 | 12.83 | 204.82 | 0.4903 | -711.0 | -641.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -25.24 | 211.83 | 9.11 | 196.47 | 0.5074 | -787.0 | -681.6 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -25.72 | 210.84 | 8.12 | 194.50 | 0.5103 | -397.0 | -499.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -26.56 | 210.45 | 7.73 | 193.41 | 0.5210 | -410.0 | -385.2 | |
| 0.00 | 2.45 | 0.00 | 1.44 | -28.67 | 205.15 | 2.44 | 183.98 | 0.5401 | -806.0 | -655.7 | |
| 0.00 | 2.45 | 0.00 | 1.42 | -27.69 | 203.10 | 0.39 | 180.65 | 0.5243 | -809.0 | -632.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
