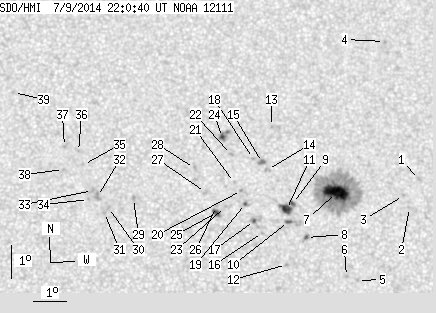

SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.42 | 247.64 | 19.57 | 122.96 | 6.02 | 204.18 | 1.47 | 299.15 | 0.0598 | -314.8 | -264.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.31 | 6.40 | 207.95 | 5.23 | 296.77 | 0.1020 | -781.0 | -471.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.55 | 207.63 | 4.92 | 289.88 | 0.0911 | -853.0 | -648.0 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.92 | 207.45 | 4.74 | 294.39 | 0.0906 | -915.0 | -723.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.63 | 206.92 | 4.21 | 328.80 | 0.1399 | -793.0 | -658.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 3.33 | 206.02 | 3.31 | 262.17 | 0.0584 | -877.0 | -598.7 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 3.46 | 205.69 | 2.97 | 263.62 | 0.0523 | -807.0 | -706.4 | |
| 23.97 | 151.79 | 11.90 | 75.34 | 6.02 | 205.40 | 2.68 | 309.89 | 0.0609 | -1449.8 | -457.8 | |
| 0.82 | 2.72 | 0.41 | 1.35 | 4.65 | 204.47 | 1.76 | 296.12 | 0.0342 | -1148.1 | -857.0 | |
| 1.18 | 13.07 | 0.59 | 6.48 | 5.69 | 204.05 | 1.33 | 325.03 | 0.0405 | -1005.5 | -765.9 | |
| 1.00 | 7.26 | 0.49 | 3.60 | 5.14 | 203.92 | 1.21 | 318.23 | 0.0316 | -1053.2 | -794.7 | |
| 6.45 | -9.00 | 3.20 | -9.00 | 5.51 | 203.86 | 1.15 | 326.30 | 0.0361 | -1184.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 3.83 | 203.86 | 1.14 | 271.81 | 0.0200 | -1012.0 | -768.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.04 | 203.41 | 0.69 | 350.79 | 0.0753 | -875.0 | -651.6 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 6.73 | 203.28 | 0.57 | 349.10 | 0.0523 | -877.0 | -748.1 | |
| 0.00 | 3.81 | 0.00 | 1.89 | 6.94 | 203.13 | 0.42 | 352.53 | 0.0556 | -1181.0 | -982.9 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 4.81 | 203.13 | 0.41 | 337.96 | 0.0191 | 654.0 | 584.2 | |
| 0.91 | 8.62 | 0.45 | 4.27 | 5.17 | 202.88 | 0.17 | 353.11 | 0.0243 | 877.5 | 402.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.06 | 202.85 | 0.14 | 357.58 | 0.0573 | -966.0 | -739.1 | |
| 0.64 | 2.09 | 0.32 | 1.04 | 5.69 | 202.61 | -0.11 | 3.24 | 0.0333 | 841.4 | 372.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.09 | 202.48 | -0.23 | 5.69 | 0.0404 | 867.0 | 739.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.33 | 202.27 | -0.44 | 9.88 | 0.0451 | -822.0 | -593.8 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.18 | 202.18 | -0.54 | 8.92 | 0.0601 | -898.0 | -639.3 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 5.60 | 201.99 | -0.72 | 21.65 | 0.0340 | 932.0 | 776.5 | |
| 1.91 | 6.45 | 0.95 | 3.20 | 7.70 | 201.90 | -0.81 | 11.65 | 0.0699 | 1166.0 | 933.6 | |
| 2.54 | 4.36 | 1.26 | 2.16 | 5.42 | 201.72 | -1.00 | 31.41 | 0.0333 | 1210.7 | 890.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.60 | 201.72 | -1.00 | 28.75 | 0.0361 | 699.0 | 531.8 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 6.03 | 201.38 | -1.33 | 30.70 | 0.0455 | 839.0 | 611.3 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 6.76 | 201.04 | -1.67 | 29.24 | 0.0596 | 792.0 | 697.5 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 5.84 | 199.18 | -3.54 | 59.75 | 0.0714 | 1079.0 | 838.2 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 5.56 | 198.41 | -4.30 | 67.43 | 0.0813 | 997.0 | 720.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.41 | 198.29 | -4.43 | 69.72 | 0.0823 | 773.0 | 714.9 | |
| 0.00 | 4.72 | 0.00 | 2.35 | 5.90 | 198.07 | -4.64 | 65.38 | 0.0890 | 1042.0 | 854.9 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 6.08 | 197.92 | -4.80 | 64.27 | 0.0928 | 981.0 | 767.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.80 | 197.79 | -4.92 | 67.52 | 0.0928 | 797.0 | 605.4 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.87 | 197.63 | -5.08 | 58.49 | 0.1036 | 803.0 | 643.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.27 | 197.47 | -5.24 | 56.12 | 0.1096 | 876.0 | 733.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.42 | 197.04 | -5.67 | 57.07 | 0.1174 | 843.0 | 598.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.72 | 197.02 | -5.70 | 62.52 | 0.1116 | 914.0 | 715.2 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 9.06 | 195.43 | -7.28 | 53.60 | 0.1562 | 714.0 | 479.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
