SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.95 | 203.46 | 42.22 | 189.21 | -19.77 | 149.31 | -53.40 | 116.38 | 0.8452 | 360.5 | 61.9 | |
|
previous
or next observation for the same group /

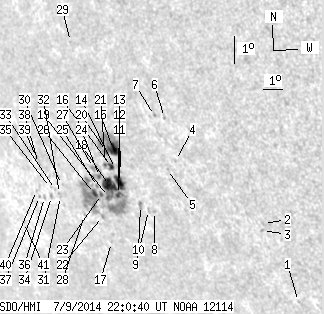

back to the solar disc SDO HMI 2014-07-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.51 | -23.44 | 157.18 | -45.54 | 123.87 | 0.7909 | 454.0 | 357.0 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -20.84 | 156.62 | -46.10 | 120.58 | 0.7844 | 662.0 | 608.3 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -21.08 | 156.47 | -46.24 | 120.79 | 0.7868 | 657.0 | 599.3 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -18.94 | 153.12 | -49.60 | 116.83 | 0.8094 | 184.0 | 229.4 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -19.26 | 152.58 | -50.14 | 117.00 | 0.8154 | 515.0 | 482.4 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -17.53 | 153.12 | -49.59 | 115.18 | 0.8046 | 586.0 | 529.9 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -17.49 | 152.64 | -50.08 | 114.95 | 0.8090 | 643.0 | 560.6 | |
| 0.00 | 1.36 | 0.00 | 1.21 | -20.72 | 151.25 | -51.46 | 118.16 | 0.8319 | 549.0 | 433.1 | |
| 0.00 | 1.82 | 0.00 | 1.62 | -20.70 | 150.94 | -51.77 | 118.02 | 0.8345 | 532.0 | 429.2 | |
| 0.00 | 3.36 | 0.00 | 3.02 | -20.55 | 150.59 | -52.13 | 117.72 | 0.8370 | 478.0 | 326.2 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -19.46 | 150.04 | -52.67 | 116.28 | 0.8383 | 705.0 | 612.9 | |
| 8.26 | 118.47 | 7.53 | 111.10 | -19.84 | 149.81 | -52.90 | 116.62 | 0.8414 | 803.6 | -16.1 | |
| 2.27 | -12.00 | 2.09 | -12.00 | -20.25 | 149.55 | -53.16 | 117.00 | 0.8448 | 531.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.58 | -19.37 | 149.81 | -52.90 | 116.10 | 0.8400 | 623.0 | 550.0 | |
| 8.81 | 38.95 | 7.92 | 35.15 | -18.74 | 150.00 | -52.72 | 115.45 | 0.8365 | 913.6 | 264.4 | |
| 3.00 | 6.63 | 2.73 | 6.06 | -19.32 | 149.62 | -53.09 | 115.97 | 0.8414 | 752.5 | 477.6 | |
| 0.00 | 0.54 | 0.00 | 0.53 | -21.92 | 148.27 | -54.44 | 118.40 | 0.8600 | -346.0 | -326.7 | |
| 14.80 | -12.00 | 13.70 | -12.00 | -19.97 | 149.20 | -53.51 | 116.56 | 0.8469 | 506.3 | 999999 | |
| 1.63 | -12.00 | 1.53 | -12.00 | -20.35 | 148.96 | -53.76 | 116.90 | 0.8500 | -341.3 | 999999 | |
| 1.27 | -15.00 | 1.15 | -15.00 | -18.83 | 149.58 | -53.13 | 115.40 | 0.8404 | 537.4 | 999999 | |
| 0.73 | -16.00 | 0.67 | -16.00 | -19.27 | 149.32 | -53.39 | 115.81 | 0.8438 | 425.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.48 | -21.05 | 148.25 | -54.47 | 117.44 | 0.8577 | 410.0 | 296.2 | |
| 0.91 | -12.00 | 0.86 | -12.00 | -20.30 | 148.59 | -54.12 | 116.72 | 0.8529 | 250.9 | 999999 | |
| 1.09 | 6.08 | 1.02 | 5.69 | -19.69 | 148.79 | -53.93 | 116.11 | 0.8495 | 452.5 | 162.4 | |
| 0.00 | 1.45 | 0.00 | 1.37 | -20.04 | 148.50 | -54.21 | 116.40 | 0.8529 | 330.0 | 311.5 | |
| 3.18 | -12.00 | 3.02 | -12.00 | -20.29 | 148.20 | -54.51 | 116.57 | 0.8560 | 378.1 | 999999 | |
| 0.00 | 4.27 | 0.00 | 3.99 | -19.41 | 148.60 | -54.12 | 115.72 | 0.8503 | -104.0 | -1.7 | |
| 0.00 | 0.82 | 0.00 | 0.80 | -21.07 | 147.20 | -55.51 | 117.11 | 0.8660 | -397.0 | -351.7 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -15.29 | 149.13 | -53.59 | 111.19 | 0.8347 | -331.0 | -279.2 | |
| 0.00 | 0.54 | 0.00 | 0.54 | -20.09 | 146.41 | -56.31 | 115.77 | 0.8696 | -493.0 | -500.7 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -20.50 | 146.12 | -56.60 | 116.13 | 0.8729 | -590.0 | -611.3 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -20.40 | 146.11 | -56.60 | 116.02 | 0.8727 | -501.0 | -479.5 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -20.28 | 145.95 | -56.77 | 115.84 | 0.8737 | -585.0 | -584.7 | |
| 0.00 | 2.09 | 0.00 | 2.14 | -20.54 | 145.56 | -57.16 | 115.99 | 0.8772 | -453.0 | -419.5 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -20.23 | 145.68 | -57.04 | 115.70 | 0.8756 | -511.0 | -404.3 | |
| 0.00 | 1.36 | 0.00 | 1.41 | -20.60 | 145.10 | -57.62 | 115.92 | 0.8808 | -485.0 | -402.1 | |
| 0.00 | 1.00 | 0.00 | 1.05 | -20.58 | 144.80 | -57.92 | 115.81 | 0.8830 | -285.0 | -238.5 | |
| 0.00 | 0.73 | 0.00 | 0.74 | -19.46 | 145.39 | -57.32 | 114.76 | 0.8759 | -587.0 | -562.1 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -19.26 | 145.38 | -57.33 | 114.54 | 0.8756 | -479.0 | -422.9 | |
| 0.00 | 0.91 | 0.00 | 0.95 | -20.39 | 144.73 | -57.98 | 115.58 | 0.8831 | -455.0 | -384.1 | |
| 0.00 | 0.73 | 0.00 | 0.81 | -21.54 | 143.17 | -59.55 | 116.37 | 0.8968 | -278.0 | -266.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
