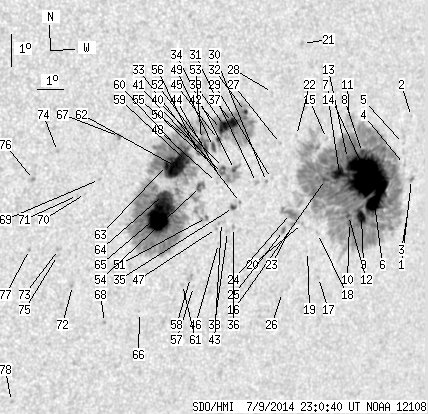

SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 314.33 | 1714.62 | 204.04 | 1110.79 | -6.99 | 240.96 | 38.80 | 254.36 | 0.6467 | 100.2 | 67.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 2.91 | 0.45 | 2.04 | -7.15 | 246.00 | 43.84 | 255.98 | 0.7106 | 440.6 | 368.6 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -5.19 | 245.80 | 43.64 | 258.64 | 0.7033 | -123.0 | -104.9 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -8.01 | 245.98 | 43.82 | 254.78 | 0.7128 | -224.0 | -145.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -6.66 | 245.65 | 43.49 | 256.54 | 0.7051 | 315.0 | 252.2 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -6.01 | 245.54 | 43.37 | 257.42 | 0.7021 | 429.0 | 380.2 | |
| 21.34 | 904.70 | 14.65 | 611.08 | -7.79 | 244.52 | 42.35 | 254.61 | 0.6946 | 782.3 | 401.2 | |
| 115.76 | -6.00 | 78.73 | -6.00 | -6.97 | 244.13 | 41.97 | 255.64 | 0.6875 | 1145.4 | 999999 | |
| 2.72 | -6.00 | 1.84 | -6.00 | -6.21 | 243.84 | 41.68 | 256.63 | 0.6818 | 855.6 | 999999 | |
| 9.17 | -6.00 | 6.26 | -6.00 | -8.20 | 244.03 | 41.87 | 253.85 | 0.6900 | 941.4 | 999999 | |
| 2.72 | -6.00 | 1.85 | -6.00 | -8.37 | 243.55 | 41.39 | 253.45 | 0.6847 | 770.7 | 999999 | |
| 0.00 | 11.17 | 0.00 | 7.45 | -5.19 | 243.22 | 41.06 | 257.91 | 0.6713 | 404.0 | 413.3 | |
| 1.45 | -6.00 | 0.98 | -6.00 | -8.15 | 243.48 | 41.32 | 253.74 | 0.6831 | 992.9 | 999999 | |
| 0.27 | -6.00 | 0.18 | -6.00 | -6.37 | 243.24 | 41.08 | 256.21 | 0.6748 | 1216.0 | 999999 | |
| 9.81 | -6.00 | 6.55 | -6.00 | -6.82 | 242.96 | 40.80 | 255.46 | 0.6726 | 1242.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -5.71 | 242.33 | 40.17 | 256.88 | 0.6614 | 587.0 | 573.3 | |
| 2.91 | -6.00 | 1.92 | -6.00 | -6.98 | 242.41 | 40.25 | 255.03 | 0.6662 | 1153.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -10.04 | 242.51 | 40.35 | 250.67 | 0.6780 | -619.0 | -455.6 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -8.65 | 242.28 | 40.12 | 252.55 | 0.6701 | 535.0 | 493.6 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -9.20 | 241.95 | 39.79 | 251.63 | 0.6679 | 642.0 | 503.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -8.31 | 241.64 | 39.48 | 252.79 | 0.6608 | 776.0 | 687.0 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -2.74 | 241.20 | 39.04 | 261.05 | 0.6391 | 642.0 | 474.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -5.56 | 241.13 | 38.97 | 256.69 | 0.6454 | 520.0 | 343.6 | |
| 0.00 | 2.36 | 0.00 | 1.55 | -8.33 | 241.24 | 39.08 | 252.60 | 0.6559 | 210.0 | 250.5 | |
| 0.00 | 12.98 | 0.00 | 8.47 | -7.98 | 241.12 | 38.96 | 253.07 | 0.6531 | 565.0 | 198.9 | |
| 1.09 | 3.00 | 0.71 | 1.95 | -8.50 | 240.90 | 38.74 | 252.21 | 0.6523 | -565.6 | -343.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -10.45 | 241.12 | 38.96 | 249.47 | 0.6626 | 651.0 | 599.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -5.78 | 240.51 | 38.35 | 256.14 | 0.6381 | -490.0 | -420.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -4.19 | 240.10 | 37.93 | 258.46 | 0.6280 | 678.0 | 533.3 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -6.85 | 240.26 | 38.09 | 254.41 | 0.6382 | -158.0 | -118.4 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -6.94 | 240.07 | 37.91 | 254.21 | 0.6361 | -607.0 | -493.0 | |
| 0.00 | 2.27 | 0.00 | 1.45 | -6.95 | 239.68 | 37.52 | 254.03 | 0.6311 | 812.0 | 636.7 | |
| 1.54 | 663.48 | 0.97 | 407.01 | -4.74 | 239.09 | 36.92 | 257.27 | 0.6160 | 687.8 | -402.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -7.55 | 239.12 | 36.96 | 252.87 | 0.6259 | 506.0 | 415.9 | |
| 1.91 | 26.06 | 1.20 | 16.36 | -6.51 | 238.79 | 36.63 | 254.35 | 0.6179 | -509.1 | -120.2 | |
| 1.82 | 3.09 | 1.15 | 1.95 | -7.70 | 238.86 | 36.70 | 252.54 | 0.6231 | 732.6 | 650.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -8.32 | 238.93 | 36.77 | 251.61 | 0.6264 | -460.0 | -359.2 | |
| 7.81 | -32.00 | 4.88 | -32.00 | -5.06 | 238.61 | 36.45 | 256.59 | 0.6106 | -849.9 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.44 | -8.44 | 238.71 | 36.55 | 251.33 | 0.6240 | -519.0 | -425.1 | |
| 6.63 | -32.00 | 4.12 | -32.00 | -5.14 | 238.31 | 36.15 | 256.35 | 0.6068 | -987.0 | 999999 | |
| 1.27 | -34.00 | 0.79 | -34.00 | -6.44 | 238.37 | 36.20 | 254.30 | 0.6119 | -703.2 | 999999 | |
| 1.27 | -34.00 | 0.79 | -34.00 | -6.62 | 238.34 | 36.18 | 254.00 | 0.6123 | -553.7 | 999999 | |
| 3.81 | -32.00 | 2.37 | -32.00 | -5.25 | 238.20 | 36.04 | 256.12 | 0.6057 | -1002.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.77 | -8.14 | 238.45 | 36.29 | 251.65 | 0.6195 | -438.0 | -428.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -6.74 | 238.28 | 36.12 | 253.78 | 0.6118 | -180.0 | -262.7 | |
| 2.00 | -32.00 | 1.24 | -32.00 | -5.56 | 238.11 | 35.95 | 255.59 | 0.6055 | -736.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -8.80 | 238.40 | 36.24 | 250.63 | 0.6216 | -437.0 | -337.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.32 | 238.28 | 36.12 | 251.29 | 0.6179 | -493.0 | -434.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -6.89 | 238.14 | 35.98 | 253.48 | 0.6105 | -342.0 | -272.5 | |
| 2.63 | -32.00 | 1.63 | -32.00 | -5.77 | 237.94 | 35.77 | 255.19 | 0.6038 | -746.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -6.29 | 237.86 | 35.70 | 254.32 | 0.6047 | -649.0 | -580.7 | |
| 0.64 | 20.79 | 0.40 | 12.92 | -7.97 | 237.86 | 35.70 | 251.66 | 0.6110 | -525.0 | -218.4 | |
| 3.27 | -32.00 | 2.02 | -32.00 | -5.79 | 237.63 | 35.47 | 255.03 | 0.5998 | -736.0 | 999999 | |
| 1.27 | -32.00 | 0.78 | -32.00 | -5.53 | 237.47 | 35.30 | 255.38 | 0.5967 | -772.6 | 999999 | |
| 3.45 | 7.35 | 2.14 | 4.56 | -6.99 | 237.54 | 35.38 | 253.06 | 0.6030 | -614.5 | -415.0 | |
| 3.72 | -32.00 | 2.29 | -32.00 | -5.78 | 237.41 | 35.25 | 254.95 | 0.5967 | -879.2 | 999999 | |
| 0.54 | -32.00 | 0.34 | -32.00 | -5.96 | 237.38 | 35.22 | 254.64 | 0.5971 | -785.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -10.11 | 237.61 | 35.45 | 248.20 | 0.6171 | -452.0 | -415.7 | |
| 0.00 | 3.36 | 0.00 | 2.10 | -9.82 | 237.46 | 35.30 | 248.57 | 0.6138 | -708.0 | -639.7 | |
| 2.91 | -32.00 | 1.78 | -32.00 | -6.19 | 236.95 | 34.79 | 254.08 | 0.5920 | -730.2 | 999999 | |
| 5.17 | -32.00 | 3.17 | -32.00 | -5.94 | 236.82 | 34.66 | 254.44 | 0.5893 | -912.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -10.03 | 237.18 | 35.02 | 248.09 | 0.6113 | -267.0 | -275.3 | |
| 33.14 | -32.00 | 20.24 | -32.00 | -6.33 | 236.55 | 34.39 | 253.67 | 0.5871 | -1049.7 | 999999 | |
| 3.90 | -32.00 | 2.37 | -32.00 | -6.29 | 236.21 | 34.05 | 253.59 | 0.5824 | -1409.7 | 999999 | |
| 2.27 | -32.00 | 1.38 | -32.00 | -7.18 | 236.17 | 34.01 | 252.09 | 0.5854 | -982.0 | 999999 | |
| 54.75 | -32.00 | 33.44 | -32.00 | -7.80 | 236.08 | 33.92 | 251.04 | 0.5867 | -1184.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -10.85 | 235.66 | 33.50 | 245.94 | 0.5959 | -623.0 | -566.2 | |
| 0.73 | 2.45 | 0.43 | 1.46 | -5.32 | 234.43 | 32.26 | 254.40 | 0.5540 | -778.2 | -677.3 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -11.11 | 234.40 | 32.24 | 244.71 | 0.5811 | -696.0 | -606.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.63 | 233.79 | 31.63 | 251.80 | 0.5504 | -865.0 | -705.5 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.05 | 233.31 | 31.15 | 250.81 | 0.5457 | -741.0 | -593.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -7.10 | 233.03 | 30.87 | 250.55 | 0.5420 | -577.0 | -494.2 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -9.90 | 233.10 | 30.94 | 245.80 | 0.5574 | -694.0 | -546.5 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -8.76 | 232.48 | 30.32 | 247.32 | 0.5429 | -786.0 | -657.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -5.71 | 232.23 | 30.06 | 252.59 | 0.5245 | -819.0 | -687.8 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -8.94 | 232.47 | 30.30 | 246.99 | 0.5436 | -574.0 | -577.4 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -6.55 | 231.43 | 29.27 | 250.58 | 0.5170 | -892.0 | -766.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.72 | 231.45 | 29.29 | 246.68 | 0.5286 | -830.0 | -719.3 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -13.51 | 231.33 | 29.17 | 238.60 | 0.5574 | -289.0 | -390.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
