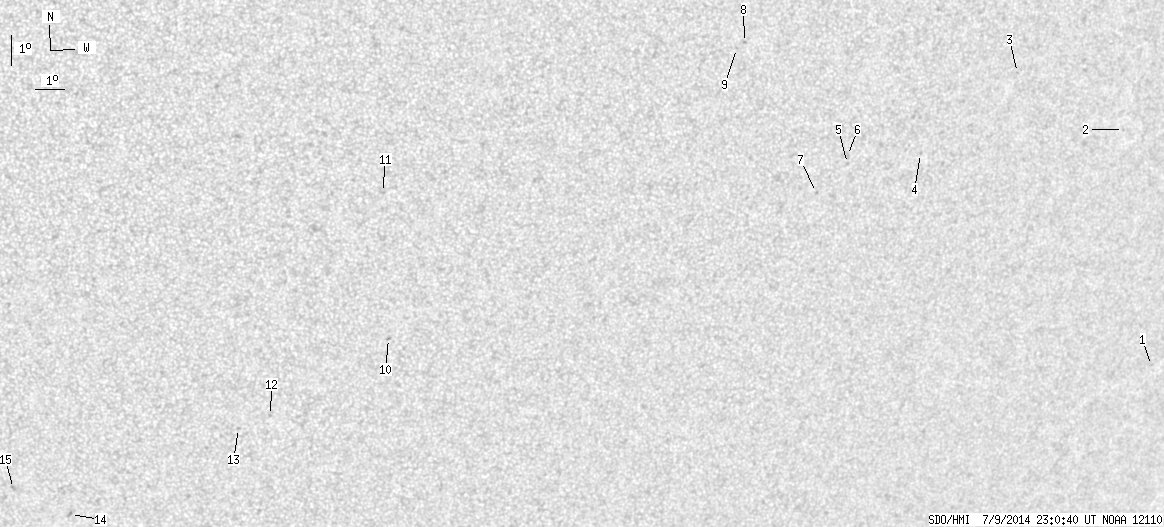

SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.53 | 0.00 | 12.24 | -20.58 | 221.68 | 19.52 | 215.51 | 0.5513 | -489.2 | -450.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.43 | -24.58 | 245.24 | 43.08 | 233.53 | 0.7746 | -600.0 | -529.0 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -16.54 | 241.38 | 39.22 | 241.19 | 0.6940 | 489.0 | 432.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.51 | 236.75 | 34.59 | 241.15 | 0.6297 | 717.0 | 626.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -17.00 | 233.53 | 31.37 | 235.22 | 0.6084 | -459.0 | -364.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -17.23 | 230.88 | 28.72 | 232.59 | 0.5800 | -574.0 | -467.2 | |
| 0.00 | 2.91 | 0.00 | 1.76 | -16.97 | 230.84 | 28.68 | 232.93 | 0.5774 | -658.0 | -499.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -18.14 | 229.91 | 27.75 | 230.37 | 0.5767 | -600.0 | -519.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.20 | 226.69 | 24.53 | 234.66 | 0.4974 | -813.0 | -697.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -13.38 | 226.43 | 24.27 | 234.08 | 0.4958 | -611.0 | -542.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.65 | 215.61 | 13.44 | 205.81 | 0.4949 | -767.0 | -641.5 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -17.77 | 214.99 | 12.83 | 210.01 | 0.4245 | -695.0 | -530.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -25.24 | 211.82 | 9.66 | 197.39 | 0.5099 | -720.0 | -633.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -25.68 | 210.76 | 8.60 | 195.33 | 0.5117 | -601.0 | -423.5 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -28.70 | 205.12 | 2.96 | 184.82 | 0.5412 | -764.0 | -694.6 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -27.76 | 203.13 | 0.97 | 181.64 | 0.5256 | -682.0 | -633.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
