SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.49 | 247.51 | 21.59 | 122.87 | 6.01 | 204.14 | 1.97 | 298.95 | 0.0625 | -325.7 | -243.9 | |
|
previous
or next observation for the same group /

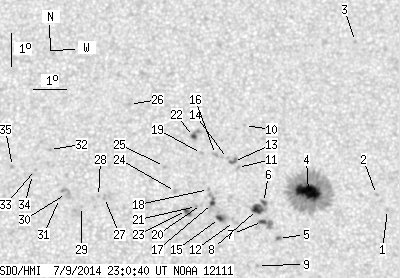

back to the solar disc SDO HMI 2014-07-09 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.41 | 5.46 | 207.85 | 5.68 | 286.53 | 0.1033 | -885.0 | -744.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.92 | 207.51 | 5.35 | 291.87 | 0.1004 | -899.0 | -641.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.60 | 206.93 | 4.77 | 325.44 | 0.1447 | -807.0 | -618.5 | |
| 24.42 | 146.71 | 12.13 | 72.86 | 6.02 | 205.43 | 3.26 | 304.48 | 0.0690 | -1427.9 | -467.0 | |
| 0.64 | 1.91 | 0.32 | 0.95 | 4.60 | 204.50 | 2.34 | 288.90 | 0.0432 | -1189.0 | -956.3 | |
| 1.18 | 14.71 | 0.59 | 7.29 | 5.69 | 204.04 | 1.88 | 315.33 | 0.0467 | -992.2 | -801.7 | |
| 2.09 | 9.81 | 1.04 | 4.86 | 5.12 | 204.01 | 1.85 | 305.54 | 0.0397 | -1046.4 | -809.2 | |
| 6.72 | -6.00 | 3.33 | -6.00 | 5.48 | 203.86 | 1.70 | 314.86 | 0.0418 | -1228.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 3.78 | 203.85 | 1.69 | 269.18 | 0.0296 | -1074.0 | -737.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.05 | 203.47 | 1.31 | 342.99 | 0.0778 | -724.0 | -566.5 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 6.76 | 203.25 | 1.09 | 339.92 | 0.0553 | -978.0 | -760.5 | |
| 0.00 | 3.36 | 0.00 | 1.66 | 5.12 | 203.15 | 0.99 | 323.09 | 0.0289 | 10.0 | -65.1 | |
| 1.18 | 4.27 | 0.59 | 2.12 | 6.95 | 203.13 | 0.97 | 343.01 | 0.0576 | -1152.3 | -886.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.04 | 202.95 | 0.78 | 346.48 | 0.0584 | -819.0 | -693.1 | |
| 2.45 | 7.72 | 1.21 | 3.82 | 5.21 | 202.70 | 0.53 | 339.31 | 0.0264 | 912.5 | 262.7 | |
| 0.00 | 2.72 | 0.00 | 1.35 | 7.16 | 202.58 | 0.42 | 352.99 | 0.0593 | -595.0 | -357.2 | |
| 1.63 | 9.81 | 0.81 | 4.86 | 5.67 | 202.48 | 0.32 | 350.28 | 0.0332 | 1045.4 | 585.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.09 | 202.36 | 0.20 | 355.06 | 0.0403 | 891.0 | 673.2 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.19 | 202.15 | -0.01 | 0.23 | 0.0594 | -774.0 | -547.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.64 | 202.15 | -0.02 | 0.49 | 0.0322 | 785.0 | 515.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.58 | 201.99 | -0.17 | 5.41 | 0.0313 | 931.0 | 722.3 | |
| 1.82 | 6.36 | 0.90 | 3.16 | 7.71 | 201.90 | -0.26 | 3.76 | 0.0687 | 1157.0 | 867.8 | |
| 1.36 | 4.81 | 0.67 | 2.38 | 5.46 | 201.69 | -0.47 | 15.95 | 0.0302 | 1122.7 | 996.0 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 6.03 | 201.35 | -0.81 | 19.87 | 0.0416 | 935.0 | 671.5 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.80 | 201.01 | -1.15 | 20.86 | 0.0562 | 946.0 | 724.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.69 | 199.93 | -2.23 | 24.30 | 0.0940 | 875.0 | 612.5 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 5.85 | 199.17 | -2.99 | 55.35 | 0.0633 | 960.0 | 777.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.88 | 198.99 | -3.17 | 56.54 | 0.0663 | 823.0 | 622.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 5.57 | 198.47 | -3.69 | 64.14 | 0.0715 | 926.0 | 678.0 | |
| 0.00 | 6.99 | 0.00 | 3.47 | 5.97 | 198.01 | -4.15 | 62.20 | 0.0818 | 983.0 | 844.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 5.82 | 197.79 | -4.37 | 65.00 | 0.0840 | 883.0 | 579.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.31 | 197.47 | -4.69 | 52.86 | 0.1021 | 962.0 | 762.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.70 | 197.05 | -5.11 | 60.16 | 0.1025 | 988.0 | 799.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.54 | 196.96 | -5.20 | 61.90 | 0.1026 | 828.0 | 693.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.78 | 196.34 | -5.82 | 62.53 | 0.1140 | 920.0 | 738.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
