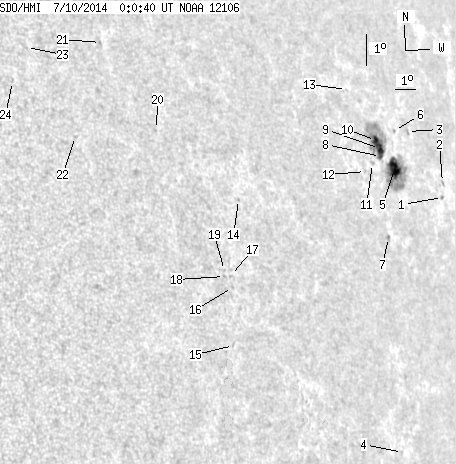

SDO HMI 2014-07-10 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.78 | 131.22 | 28.94 | 129.41 | 14.70 | 261.32 | 59.71 | 284.85 | 0.8649 | -295.6 | -175.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.50 | 13.38 | 265.13 | 63.52 | 283.07 | 0.8958 | -499.0 | -439.7 | |
| 0.00 | 1.45 | 0.00 | 1.62 | 13.84 | 265.36 | 63.75 | 283.56 | 0.8976 | -298.0 | -253.4 | |
| 0.00 | 2.18 | 0.00 | 2.32 | 15.53 | 263.79 | 62.18 | 285.56 | 0.8864 | 142.0 | 114.1 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 5.79 | 260.19 | 58.58 | 274.46 | 0.8537 | 358.0 | 322.3 | |
| 15.44 | 56.57 | 15.66 | 57.47 | 14.45 | 262.38 | 60.77 | 284.44 | 0.8746 | -598.3 | -181.9 | |
| 0.00 | 1.09 | 0.00 | 1.13 | 15.61 | 262.95 | 61.35 | 285.72 | 0.8799 | -300.0 | -223.8 | |
| 0.00 | 2.18 | 0.00 | 2.12 | 12.37 | 261.12 | 59.52 | 282.12 | 0.8630 | -541.0 | -436.6 | |
| 1.63 | 51.21 | 1.62 | 50.95 | 14.87 | 261.68 | 60.07 | 284.97 | 0.8690 | -634.5 | -283.0 | |
| 7.17 | -8.00 | 7.15 | -8.00 | 15.11 | 261.73 | 60.12 | 285.25 | 0.8696 | -611.1 | 999999 | |
| 4.54 | -8.00 | 4.51 | -8.00 | 15.37 | 261.60 | 59.99 | 285.56 | 0.8687 | -664.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.51 | 14.68 | 261.09 | 59.48 | 284.80 | 0.8639 | -607.0 | -568.4 | |
| 0.00 | 1.18 | 0.00 | 1.13 | 14.46 | 260.55 | 58.94 | 284.59 | 0.8592 | -376.0 | -275.0 | |
| 0.00 | 0.82 | 0.00 | 0.79 | 17.04 | 260.60 | 58.99 | 287.58 | 0.8616 | 130.0 | 83.7 | |
| 0.00 | 1.09 | 0.00 | 0.88 | 13.98 | 253.30 | 51.70 | 284.79 | 0.7898 | 406.0 | 379.1 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 9.53 | 251.90 | 50.29 | 279.23 | 0.7709 | 226.0 | 160.9 | |
| 0.00 | 1.09 | 0.00 | 0.85 | 11.30 | 252.25 | 50.64 | 281.49 | 0.7759 | 541.0 | 429.8 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 11.67 | 252.24 | 50.63 | 281.97 | 0.7762 | 547.0 | 479.1 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 11.65 | 251.94 | 50.33 | 281.98 | 0.7730 | 625.0 | 563.0 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 11.84 | 251.99 | 50.38 | 282.21 | 0.7736 | 628.0 | 544.6 | |
| 0.00 | 0.73 | 0.00 | 0.55 | 16.34 | 250.02 | 48.41 | 288.37 | 0.7585 | 444.0 | 374.5 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 19.17 | 248.36 | 46.75 | 292.48 | 0.7468 | 663.0 | 581.4 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 16.30 | 246.25 | 44.64 | 289.18 | 0.7164 | 649.0 | 549.3 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 19.17 | 244.96 | 43.35 | 293.50 | 0.7094 | 422.0 | 350.6 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 18.13 | 244.02 | 42.41 | 292.38 | 0.6954 | 138.0 | 230.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
