SDO HMI 2014-07-10 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.51 | 0.00 | 8.48 | 18.30 | 198.75 | -2.86 | 9.57 | 0.2623 | -493.6 | -389.8 | |
|
previous
or next observation for the same group /

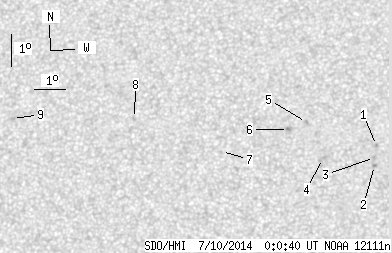

back to the solar disc SDO HMI 2014-07-10 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.60 | 18.16 | 202.18 | 0.57 | 357.80 | 0.2492 | -893.0 | -716.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 17.53 | 202.12 | 0.51 | 357.96 | 0.2385 | -977.0 | -839.1 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 17.78 | 202.12 | 0.51 | 357.99 | 0.2427 | -836.0 | -670.4 | |
| 0.00 | 3.81 | 0.00 | 1.95 | 17.75 | 200.45 | -1.15 | 4.55 | 0.2428 | -727.0 | -602.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.89 | 199.93 | -1.68 | 6.07 | 0.2628 | -786.0 | -680.0 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 18.67 | 199.36 | -2.25 | 8.26 | 0.2603 | -918.0 | -734.3 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 17.97 | 197.21 | -4.39 | 16.58 | 0.2565 | -744.0 | -566.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.99 | 194.37 | -7.24 | 24.42 | 0.2894 | 692.0 | 590.9 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 18.96 | 190.39 | -11.22 | 35.03 | 0.3220 | 747.0 | 651.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
