SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.68 | 129.95 | 30.46 | 131.21 | 14.64 | 261.60 | 60.54 | 284.69 | 0.8720 | -311.6 | -186.6 | |
|
previous
or next observation for the same group /

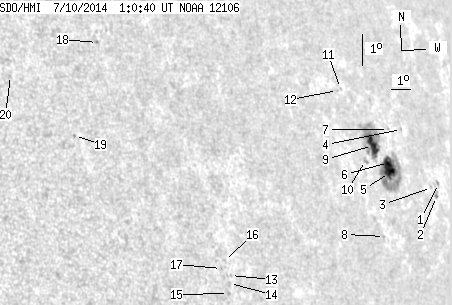

back to the solar disc SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.55 | 13.77 | 265.51 | 64.45 | 283.45 | 0.9028 | -194.0 | -196.3 | |
| 0.54 | 2.91 | 0.61 | 3.28 | 13.38 | 265.16 | 64.11 | 283.04 | 0.9001 | -366.2 | -359.1 | |
| 0.00 | 1.18 | 0.00 | 1.32 | 13.68 | 264.95 | 63.89 | 283.38 | 0.8986 | -482.0 | -369.9 | |
| 0.00 | 0.54 | 0.00 | 0.59 | 15.57 | 263.82 | 62.76 | 285.55 | 0.8909 | 148.0 | 133.2 | |
| 10.17 | 62.20 | 10.49 | 64.26 | 14.30 | 262.36 | 61.30 | 284.22 | 0.8788 | -610.2 | -164.8 | |
| 7.26 | -5.00 | 7.51 | -5.00 | 14.61 | 262.44 | 61.38 | 284.57 | 0.8796 | -491.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.76 | 15.62 | 262.95 | 61.89 | 285.68 | 0.8842 | -184.0 | -168.5 | |
| 0.00 | 1.00 | 0.00 | 0.99 | 12.37 | 261.21 | 60.15 | 282.08 | 0.8684 | -580.0 | -486.7 | |
| 11.71 | 47.31 | 11.85 | 47.83 | 15.19 | 261.67 | 60.61 | 285.29 | 0.8737 | -606.2 | -303.8 | |
| 0.00 | 2.45 | 0.00 | 2.43 | 14.75 | 261.01 | 59.96 | 284.84 | 0.8680 | -654.0 | -590.6 | |
| 0.00 | 0.73 | 0.00 | 0.72 | 17.05 | 260.56 | 59.51 | 287.53 | 0.8659 | 198.0 | 131.9 | |
| 0.00 | 0.64 | 0.00 | 0.62 | 17.00 | 260.35 | 59.29 | 287.50 | 0.8641 | 277.0 | 234.6 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 11.64 | 252.38 | 51.33 | 281.86 | 0.7836 | 353.0 | 287.4 | |
| 0.00 | 1.73 | 0.00 | 1.37 | 11.40 | 252.27 | 51.21 | 281.56 | 0.7822 | 535.0 | 424.9 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 11.09 | 252.15 | 51.09 | 281.18 | 0.7806 | 547.0 | 484.8 | |
| 0.00 | 1.27 | 0.00 | 1.01 | 12.11 | 252.21 | 51.15 | 282.48 | 0.7821 | 558.0 | 479.2 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 11.88 | 252.00 | 50.94 | 282.20 | 0.7797 | 628.0 | 569.1 | |
| 0.00 | 1.18 | 0.00 | 0.88 | 19.15 | 248.32 | 47.27 | 292.31 | 0.7523 | 654.0 | 562.6 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 16.31 | 246.29 | 45.24 | 289.04 | 0.7232 | 591.0 | 518.3 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 18.30 | 244.05 | 42.99 | 292.42 | 0.7026 | 624.0 | 555.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
