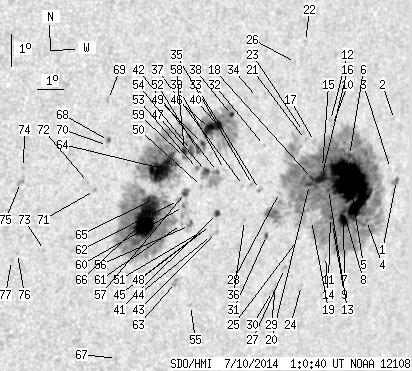

SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 309.92 | 1683.63 | 204.27 | 1107.58 | -7.00 | 240.90 | 39.84 | 254.74 | 0.6601 | 92.2 | 65.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 4.90 | 1.24 | 3.51 | -7.07 | 246.14 | 45.09 | 256.44 | 0.7252 | 430.7 | 330.1 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -5.17 | 245.86 | 44.80 | 258.95 | 0.7173 | -111.0 | -75.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -6.69 | 245.84 | 44.78 | 256.88 | 0.7206 | 425.0 | 334.8 | |
| 1.00 | 883.17 | 0.71 | 606.92 | -8.26 | 245.00 | 43.94 | 254.48 | 0.7151 | 168.5 | 392.9 | |
| 129.21 | -4.00 | 89.60 | -4.00 | -7.10 | 244.17 | 43.12 | 255.80 | 0.7019 | 1053.3 | 999999 | |
| 1.91 | -4.00 | 1.31 | -4.00 | -6.20 | 244.03 | 42.98 | 257.03 | 0.6977 | 693.5 | 999999 | |
| 7.72 | -4.00 | 5.36 | -4.00 | -8.18 | 244.01 | 42.95 | 254.25 | 0.7031 | 908.4 | 999999 | |
| 2.27 | -4.00 | 1.57 | -4.00 | -7.93 | 243.98 | 42.92 | 254.59 | 0.7019 | 845.5 | 999999 | |
| 1.91 | -4.00 | 1.32 | -4.00 | -8.28 | 243.56 | 42.51 | 253.95 | 0.6980 | 790.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -5.23 | 243.24 | 42.18 | 258.16 | 0.6855 | 693.0 | 590.4 | |
| 1.54 | -4.00 | 1.06 | -4.00 | -8.09 | 243.45 | 42.40 | 254.18 | 0.6961 | 974.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.17 | -5.08 | 243.14 | 42.08 | 258.36 | 0.6839 | 396.0 | 330.8 | |
| 1.00 | -4.00 | 0.68 | -4.00 | -7.21 | 243.26 | 42.21 | 255.35 | 0.6912 | 996.5 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.45 | -9.31 | 243.41 | 42.36 | 252.48 | 0.6995 | 96.0 | 117.0 | |
| 0.27 | -4.00 | 0.18 | -4.00 | -6.52 | 242.94 | 41.88 | 256.23 | 0.6852 | 1036.3 | 999999 | |
| 9.90 | -4.00 | 6.72 | -4.00 | -6.83 | 242.93 | 41.87 | 255.79 | 0.6860 | 1170.6 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.07 | -5.70 | 242.53 | 41.47 | 257.29 | 0.6779 | 339.0 | 290.9 | |
| 0.27 | -4.00 | 0.18 | -4.00 | -6.84 | 242.56 | 41.50 | 255.65 | 0.6814 | 1290.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -8.15 | 242.67 | 41.61 | 253.82 | 0.6868 | 250.0 | 313.8 | |
| 2.81 | -4.00 | 1.90 | -4.00 | -7.02 | 242.46 | 41.40 | 255.35 | 0.6807 | 1172.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.15 | -5.62 | 242.16 | 41.10 | 257.29 | 0.6729 | 451.0 | 468.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -2.59 | 241.97 | 40.91 | 261.70 | 0.6635 | 595.0 | 463.6 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -5.37 | 242.05 | 41.00 | 257.62 | 0.6710 | 193.0 | 248.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -10.17 | 242.55 | 41.49 | 250.94 | 0.6922 | -495.0 | -465.0 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -8.69 | 242.21 | 41.15 | 252.89 | 0.6829 | 674.0 | 556.7 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -3.22 | 241.59 | 40.54 | 260.67 | 0.6599 | 559.0 | 476.3 | |
| 0.00 | 2.36 | 0.00 | 1.59 | -9.61 | 241.76 | 40.70 | 251.41 | 0.6807 | 633.0 | 529.1 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -7.22 | 241.26 | 40.20 | 254.65 | 0.6663 | 521.0 | 478.3 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -10.09 | 241.46 | 40.41 | 250.60 | 0.6789 | 614.0 | 574.5 | |
| 0.00 | 2.18 | 0.00 | 1.47 | -10.31 | 241.37 | 40.32 | 250.26 | 0.6786 | 702.0 | 558.5 | |
| 1.36 | 2.63 | 0.90 | 1.74 | -8.54 | 240.88 | 39.83 | 252.59 | 0.6661 | -357.4 | -277.1 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -5.73 | 240.52 | 39.46 | 256.59 | 0.6523 | -425.0 | -317.4 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -7.09 | 240.44 | 39.38 | 254.54 | 0.6556 | -305.0 | -211.8 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -4.23 | 240.13 | 39.08 | 258.74 | 0.6432 | 642.0 | 561.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -6.92 | 240.15 | 39.09 | 254.68 | 0.6513 | -527.0 | -384.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -8.03 | 239.94 | 38.89 | 252.95 | 0.6525 | 571.0 | 440.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -6.93 | 239.79 | 38.73 | 254.52 | 0.6468 | 511.0 | 459.8 | |
| 1.54 | 673.23 | 0.98 | 418.84 | -4.71 | 239.14 | 38.09 | 257.69 | 0.6315 | 671.1 | -387.8 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -6.40 | 239.00 | 37.94 | 255.02 | 0.6347 | -397.0 | -324.4 | |
| 6.36 | -38.00 | 4.03 | -38.00 | -5.03 | 238.66 | 37.60 | 257.02 | 0.6260 | -779.7 | 999999 | |
| 2.54 | 3.90 | 1.63 | 2.51 | -7.76 | 238.85 | 37.80 | 252.89 | 0.6376 | 762.0 | 630.0 | |
| 0.91 | 27.60 | 0.58 | 17.56 | -6.46 | 238.73 | 37.67 | 254.84 | 0.6314 | -499.1 | -100.4 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -8.35 | 238.88 | 37.82 | 252.01 | 0.6401 | -441.0 | -382.1 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -8.44 | 238.69 | 37.64 | 251.80 | 0.6381 | -530.0 | -371.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -8.13 | 238.62 | 37.56 | 252.24 | 0.6359 | -103.0 | -226.3 | |
| 10.26 | -38.00 | 6.48 | -38.00 | -5.11 | 238.32 | 37.26 | 256.78 | 0.6216 | -936.5 | 999999 | |
| 3.72 | -42.00 | 2.36 | -42.00 | -6.44 | 238.30 | 37.24 | 254.70 | 0.6257 | -686.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -8.24 | 238.40 | 37.34 | 251.97 | 0.6335 | -438.0 | -427.6 | |
| 1.82 | -38.00 | 1.14 | -38.00 | -5.56 | 238.08 | 37.02 | 255.98 | 0.6199 | -696.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -6.90 | 238.15 | 37.09 | 253.93 | 0.6253 | -390.0 | -272.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -8.33 | 238.21 | 37.16 | 251.76 | 0.6315 | -562.0 | -486.8 | |
| 2.81 | -38.00 | 1.77 | -38.00 | -5.74 | 237.90 | 36.84 | 255.63 | 0.6181 | -717.2 | 999999 | |
| 0.64 | 2.18 | 0.40 | 1.37 | -6.33 | 237.94 | 36.89 | 254.73 | 0.6207 | -714.4 | -588.6 | |
| 3.81 | -38.00 | 2.39 | -38.00 | -5.76 | 237.67 | 36.61 | 255.51 | 0.6151 | -733.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -10.61 | 238.15 | 37.09 | 248.31 | 0.6403 | -468.0 | -377.1 | |
| 0.00 | 5.63 | 0.00 | 3.57 | -8.09 | 237.80 | 36.75 | 251.93 | 0.6253 | -537.0 | -286.0 | |
| 3.45 | 5.72 | 2.17 | 3.60 | -7.06 | 237.55 | 36.49 | 253.42 | 0.6180 | -624.3 | -411.6 | |
| 3.27 | -38.00 | 2.04 | -38.00 | -5.75 | 237.40 | 36.35 | 255.42 | 0.6115 | -856.3 | 999999 | |
| 0.73 | -38.00 | 0.45 | -38.00 | -5.97 | 237.42 | 36.36 | 255.09 | 0.6124 | -716.8 | 999999 | |
| 0.73 | 8.63 | 0.46 | 5.44 | -7.49 | 237.51 | 36.45 | 252.73 | 0.6191 | -386.2 | -84.3 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -8.05 | 237.49 | 36.43 | 251.86 | 0.6210 | -311.0 | -259.9 | |
| 0.00 | 2.18 | 0.00 | 1.37 | -7.29 | 237.30 | 36.24 | 252.94 | 0.6157 | -660.0 | -498.4 | |
| 0.00 | 3.63 | 0.00 | 2.31 | -9.86 | 237.47 | 36.41 | 249.08 | 0.6283 | -667.0 | -609.1 | |
| 44.77 | -38.00 | 27.73 | -38.00 | -6.27 | 236.57 | 35.51 | 254.25 | 0.6021 | -1010.9 | 999999 | |
| 0.27 | -38.00 | 0.17 | -38.00 | -7.19 | 236.38 | 35.32 | 252.68 | 0.6031 | -873.3 | 999999 | |
| 58.39 | -38.00 | 36.16 | -38.00 | -7.81 | 236.14 | 35.08 | 251.59 | 0.6023 | -1121.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -12.17 | 235.53 | 34.48 | 244.50 | 0.6153 | -192.0 | -198.1 | |
| 1.00 | 2.18 | 0.60 | 1.31 | -5.33 | 234.53 | 33.47 | 254.92 | 0.5709 | -750.5 | -584.2 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -4.06 | 234.46 | 33.40 | 257.07 | 0.5656 | -680.0 | -591.2 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -5.48 | 234.50 | 33.44 | 254.65 | 0.5711 | -513.0 | -453.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -6.86 | 234.12 | 33.06 | 252.14 | 0.5712 | -621.0 | -616.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -6.60 | 233.88 | 32.82 | 252.45 | 0.5669 | -819.0 | -669.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.66 | 232.45 | 31.40 | 248.16 | 0.5569 | -716.0 | -612.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -6.05 | 231.50 | 30.44 | 252.15 | 0.5314 | -714.0 | -563.1 | |
| 0.00 | 3.18 | 0.00 | 1.86 | -6.51 | 231.42 | 30.36 | 251.28 | 0.5324 | -835.0 | -662.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.72 | 231.49 | 30.43 | 247.44 | 0.5442 | -824.0 | -662.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.93 | 231.29 | 30.23 | 246.95 | 0.5427 | -651.0 | -620.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
