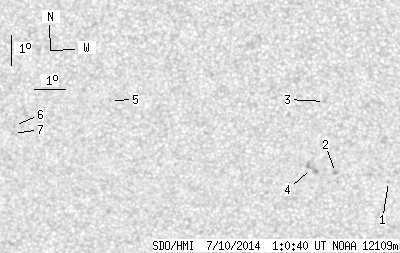

SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.53 | 0.00 | 7.98 | -21.47 | 201.17 | 0.12 | 180.10 | 0.4347 | 70.3 | 302.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.43 | 206.05 | 5.00 | 190.32 | 0.4511 | 563.0 | 484.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.11 | 204.30 | 3.24 | 186.83 | 0.4421 | 796.0 | 671.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.73 | 203.89 | 2.83 | 186.64 | 0.4037 | 804.0 | 668.0 | |
| 0.00 | 6.99 | 0.00 | 3.85 | -21.97 | 203.50 | 2.45 | 185.20 | 0.4386 | 610.0 | 689.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -19.69 | 196.96 | -4.10 | 170.42 | 0.4060 | -833.0 | -692.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.54 | 193.79 | -7.26 | 163.97 | 0.4304 | -767.0 | -694.7 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -20.81 | 193.75 | -7.31 | 164.05 | 0.4346 | -681.0 | -531.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
