SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.23 | 203.12 | 37.34 | 181.51 | -19.82 | 149.13 | -51.92 | 116.99 | 0.8329 | 418.7 | 72.0 | |
|
previous
or next observation for the same group /

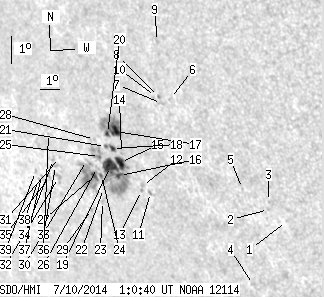

back to the solar disc SDO HMI 2014-07-10 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.56 | -21.39 | 157.20 | -43.86 | 122.35 | 0.7659 | 589.0 | 496.5 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -21.02 | 156.51 | -44.55 | 121.56 | 0.7707 | 729.0 | 606.6 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -20.75 | 156.61 | -44.44 | 121.29 | 0.7685 | 658.0 | 682.5 | |
| 0.00 | 2.00 | 0.00 | 1.64 | -23.64 | 154.70 | -46.36 | 123.70 | 0.7991 | 234.0 | 191.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -20.37 | 155.56 | -45.50 | 120.32 | 0.7768 | 459.0 | 523.3 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -17.53 | 153.21 | -47.85 | 115.88 | 0.7880 | 570.0 | 439.5 | |
| 0.00 | 2.54 | 0.00 | 2.06 | -17.71 | 152.71 | -48.35 | 115.91 | 0.7935 | 540.0 | 359.2 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -17.49 | 152.64 | -48.41 | 115.61 | 0.7933 | 660.0 | 584.6 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -15.68 | 153.20 | -47.85 | 113.65 | 0.7815 | 353.0 | 367.3 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -17.50 | 152.49 | -48.56 | 115.56 | 0.7948 | 396.0 | 401.8 | |
| 0.00 | 1.82 | 0.00 | 1.57 | -20.74 | 150.92 | -50.14 | 118.71 | 0.8206 | 385.0 | 410.9 | |
| 0.00 | 1.36 | 0.00 | 1.18 | -20.52 | 150.61 | -50.45 | 118.34 | 0.8226 | 561.0 | 407.9 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -20.69 | 150.48 | -50.58 | 118.49 | 0.8243 | 375.0 | 305.0 | |
| 0.00 | 0.91 | 0.00 | 0.79 | -19.49 | 149.99 | -51.07 | 116.92 | 0.8246 | 684.0 | 584.0 | |
| 6.99 | 73.19 | 6.13 | 65.04 | -19.80 | 149.80 | -51.26 | 117.20 | 0.8272 | 835.5 | 137.2 | |
| 2.91 | -15.00 | 2.57 | -15.00 | -20.25 | 149.54 | -51.51 | 117.61 | 0.8309 | 509.9 | 999999 | |
| 7.26 | 35.87 | 6.29 | 31.13 | -18.77 | 150.00 | -51.06 | 116.09 | 0.8222 | 934.8 | 354.8 | |
| 2.18 | 5.99 | 1.91 | 5.27 | -19.35 | 149.59 | -51.47 | 116.61 | 0.8276 | 779.0 | 531.8 | |
| 15.53 | -15.00 | 13.83 | -15.00 | -19.97 | 149.20 | -51.86 | 117.17 | 0.8330 | 535.8 | 999999 | |
| 1.63 | -17.00 | 1.43 | -17.00 | -18.86 | 149.54 | -51.51 | 116.03 | 0.8265 | 445.1 | 999999 | |
| 0.91 | -18.00 | 0.80 | -18.00 | -19.30 | 149.24 | -51.81 | 116.43 | 0.8305 | 457.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -20.74 | 148.46 | -52.60 | 117.76 | 0.8417 | -103.0 | -60.2 | |
| 0.00 | 1.45 | 0.00 | 1.34 | -21.18 | 148.17 | -52.88 | 118.16 | 0.8454 | 477.0 | 332.8 | |
| 0.91 | 1.91 | 0.82 | 1.73 | -20.30 | 148.56 | -52.49 | 117.31 | 0.8394 | 289.7 | 227.5 | |
| 0.73 | 11.62 | 0.65 | 10.45 | -19.66 | 148.76 | -52.30 | 116.66 | 0.8358 | 470.2 | 106.5 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -20.04 | 148.48 | -52.58 | 116.98 | 0.8394 | 334.0 | 274.6 | |
| 3.18 | 37.59 | 2.91 | 34.69 | -20.32 | 148.18 | -52.88 | 117.19 | 0.8428 | 354.4 | -179.8 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -19.10 | 148.75 | -52.30 | 116.02 | 0.8341 | 60.0 | 64.1 | |
| 0.00 | 1.73 | 0.00 | 1.63 | -21.49 | 147.40 | -53.65 | 118.23 | 0.8526 | -193.0 | -182.3 | |
| 0.00 | 1.00 | 0.00 | 0.91 | -19.83 | 147.98 | -53.08 | 116.57 | 0.8429 | 223.0 | 186.1 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -19.82 | 146.50 | -54.56 | 116.04 | 0.8551 | -597.0 | -475.7 | |
| 0.00 | 4.81 | 0.00 | 4.65 | -20.50 | 146.08 | -54.98 | 116.67 | 0.8604 | -599.0 | -501.7 | |
| 0.00 | 2.00 | 0.00 | 1.92 | -20.10 | 146.12 | -54.93 | 116.24 | 0.8589 | -538.0 | -537.3 | |
| 0.00 | 1.63 | 0.00 | 1.57 | -19.90 | 146.11 | -54.94 | 116.01 | 0.8585 | -624.0 | -625.9 | |
| 0.00 | 2.09 | 0.00 | 2.04 | -20.50 | 145.57 | -55.49 | 116.49 | 0.8644 | -505.0 | -484.1 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -19.04 | 146.27 | -54.79 | 115.10 | 0.8549 | 154.0 | 173.0 | |
| 0.00 | 0.91 | 0.00 | 0.90 | -20.49 | 145.10 | -55.95 | 116.34 | 0.8680 | -478.0 | -448.7 | |
| 0.00 | 0.54 | 0.00 | 0.54 | -20.64 | 144.84 | -56.21 | 116.41 | 0.8704 | -331.0 | -333.7 | |
| 0.00 | 1.36 | 0.00 | 1.36 | -20.37 | 144.82 | -56.24 | 116.12 | 0.8699 | -486.0 | -430.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
