SDO HMI 2014-07-10 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 294.14 | 1565.52 | 159.26 | 845.80 | -7.73 | 221.06 | 20.55 | 240.51 | 0.4012 | 803.7 | 325.8 | |
|
previous
or next observation for the same group /

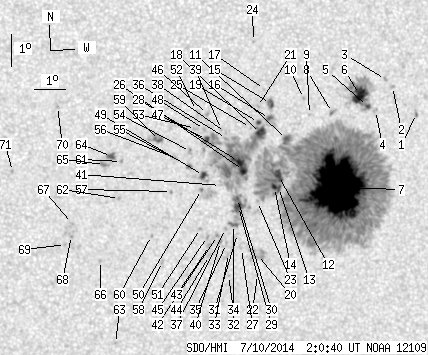

back to the solar disc SDO HMI 2014-07-10 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.30 | -5.77 | 224.41 | 23.90 | 248.23 | 0.4359 | 926.0 | 771.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -4.92 | 223.58 | 23.07 | 249.42 | 0.4188 | -622.0 | -527.6 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -4.69 | 223.34 | 22.83 | 249.72 | 0.4140 | -750.0 | -576.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -5.64 | 223.04 | 22.53 | 247.32 | 0.4150 | -732.0 | -563.0 | |
| 2.09 | 61.66 | 1.13 | 33.37 | -5.51 | 222.77 | 22.26 | 247.37 | 0.4103 | -946.0 | 371.0 | |
| 16.89 | -5.00 | 9.14 | -5.00 | -5.13 | 222.49 | 21.98 | 247.97 | 0.4039 | 983.5 | 999999 | |
| 216.23 | 1152.89 | 117.63 | 626.06 | -8.00 | 221.89 | 21.38 | 240.98 | 0.4146 | 1548.0 | 459.2 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -5.67 | 221.62 | 21.11 | 245.89 | 0.3944 | 994.0 | 692.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -5.71 | 220.87 | 20.36 | 245.00 | 0.3836 | -569.0 | -339.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.21 | 220.65 | 20.15 | 245.97 | 0.3772 | 899.0 | 764.2 | |
| 3.81 | -7.00 | 2.04 | -7.00 | -6.46 | 220.15 | 19.64 | 242.38 | 0.3785 | -218.1 | 999999 | |
| 6.99 | -7.00 | 3.75 | -7.00 | -7.57 | 219.93 | 19.43 | 239.54 | 0.3841 | 1195.1 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -7.95 | 219.95 | 19.44 | 238.72 | 0.3874 | 1332.0 | 999999 | |
| 2.18 | -7.00 | 1.17 | -7.00 | -7.95 | 219.82 | 19.31 | 238.56 | 0.3855 | 1349.3 | 999999 | |
| 3.00 | 5.27 | 1.59 | 2.80 | -5.34 | 219.59 | 19.08 | 244.45 | 0.3623 | -945.6 | -784.0 | |
| 1.73 | 202.33 | 0.92 | 107.53 | -5.80 | 219.57 | 19.06 | 243.28 | 0.3653 | -760.1 | 205.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.90 | 219.38 | 18.87 | 245.32 | 0.3562 | -708.0 | -550.3 | |
| 7.36 | -16.00 | 3.91 | -16.00 | -6.26 | 219.29 | 18.79 | 241.82 | 0.3647 | -339.3 | 999999 | |
| 1.18 | -16.00 | 0.63 | -16.00 | -5.92 | 219.22 | 18.71 | 242.56 | 0.3610 | -953.4 | 999999 | |
| 0.00 | 16.53 | 0.00 | 8.92 | -10.03 | 219.38 | 18.87 | 233.47 | 0.3980 | -235.0 | -40.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -5.42 | 219.17 | 18.66 | 243.74 | 0.3567 | -551.0 | -535.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.66 | 219.41 | 18.91 | 232.26 | 0.4044 | -622.0 | -396.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.37 | 219.29 | 18.78 | 236.89 | 0.3818 | 886.0 | 671.1 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -3.42 | 218.99 | 18.48 | 248.83 | 0.3408 | -771.0 | -670.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -6.06 | 218.96 | 18.46 | 241.87 | 0.3585 | -463.0 | -455.1 | |
| 5.36 | -16.00 | 2.85 | -16.00 | -7.39 | 218.79 | 18.28 | 238.42 | 0.3667 | 1137.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.83 | 218.84 | 18.33 | 233.11 | 0.3892 | -507.0 | -411.3 | |
| 7.45 | -16.00 | 3.96 | -16.00 | -7.11 | 218.61 | 18.11 | 238.85 | 0.3619 | 1261.3 | 999999 | |
| 5.63 | -16.00 | 3.01 | -16.00 | -8.51 | 218.67 | 18.17 | 235.70 | 0.3749 | 840.6 | 999999 | |
| 1.63 | -16.00 | 0.87 | -16.00 | -8.26 | 218.63 | 18.12 | 236.20 | 0.3720 | 1034.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.35 | 218.69 | 18.18 | 233.87 | 0.3827 | -397.0 | -319.5 | |
| 1.54 | -16.00 | 0.83 | -16.00 | -9.07 | 218.54 | 18.03 | 234.27 | 0.3782 | -637.8 | 999999 | |
| 0.00 | 6.45 | 0.00 | 3.46 | -9.97 | 218.43 | 17.92 | 232.17 | 0.3853 | -613.0 | -500.6 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -10.67 | 218.47 | 17.96 | 230.81 | 0.3926 | -645.0 | -545.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.66 | 218.34 | 17.84 | 232.71 | 0.3812 | -639.0 | -482.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.39 | 218.20 | 17.69 | 240.03 | 0.3501 | -708.0 | -534.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.19 | 218.29 | 17.78 | 233.63 | 0.3760 | -869.0 | -748.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.20 | 218.16 | 17.65 | 240.45 | 0.3481 | -664.0 | -660.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.11 | 218.03 | 17.52 | 240.50 | 0.3454 | -644.0 | -401.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -9.59 | 218.15 | 17.64 | 232.54 | 0.3780 | -802.0 | -725.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.84 | 218.06 | 17.56 | 236.32 | 0.3606 | -407.0 | -346.5 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -9.40 | 218.04 | 17.53 | 232.78 | 0.3748 | -1014.0 | -769.8 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -9.71 | 217.80 | 17.29 | 231.74 | 0.3747 | -804.0 | -716.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -10.02 | 217.81 | 17.31 | 231.10 | 0.3780 | -701.0 | -565.8 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -9.43 | 217.72 | 17.21 | 232.22 | 0.3709 | -948.0 | -792.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -5.63 | 217.56 | 17.06 | 241.07 | 0.3350 | -892.0 | -718.7 | |
| 2.63 | 21.52 | 1.39 | 11.35 | -6.40 | 217.56 | 17.05 | 239.06 | 0.3412 | -1021.9 | -519.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.09 | 217.48 | 16.98 | 239.75 | 0.3376 | -916.0 | -756.9 | |
| 3.18 | 7.17 | 1.68 | 3.79 | -7.52 | 217.50 | 16.99 | 236.22 | 0.3501 | -888.6 | -575.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.95 | 217.45 | 16.95 | 235.12 | 0.3534 | -739.0 | -606.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.17 | 217.48 | 16.97 | 232.39 | 0.3653 | -854.0 | -654.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -5.50 | 217.21 | 16.70 | 240.90 | 0.3288 | -586.0 | -444.2 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -6.06 | 217.19 | 16.69 | 239.41 | 0.3331 | -676.0 | -657.3 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -6.77 | 217.06 | 16.55 | 237.38 | 0.3373 | -854.0 | -771.4 | |
| 1.00 | 2.45 | 0.53 | 1.29 | -7.23 | 217.04 | 16.53 | 236.20 | 0.3412 | -901.5 | -773.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.97 | 216.62 | 16.11 | 236.15 | 0.3331 | -766.0 | -623.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.00 | 216.49 | 15.99 | 233.44 | 0.3410 | -850.0 | -699.2 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -10.18 | 216.30 | 15.80 | 228.20 | 0.3609 | -714.0 | -578.4 | |
| 1.27 | 11.17 | 0.66 | 5.83 | -6.41 | 216.05 | 15.55 | 236.67 | 0.3202 | -912.6 | -727.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.36 | 215.91 | 15.40 | 229.27 | 0.3473 | -722.0 | -671.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -7.03 | 214.87 | 14.36 | 232.88 | 0.3100 | -812.0 | -600.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.18 | 214.84 | 14.33 | 229.95 | 0.3215 | -955.0 | -780.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -12.74 | 214.93 | 14.42 | 220.62 | 0.3746 | -716.0 | -524.9 | |
| 2.72 | 6.08 | 1.42 | 3.16 | -6.87 | 214.55 | 14.04 | 232.68 | 0.3042 | -1037.6 | -836.8 | |
| 0.00 | 3.54 | 0.00 | 1.84 | -7.12 | 214.33 | 13.82 | 231.61 | 0.3038 | -1043.0 | -904.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -10.11 | 214.31 | 13.81 | 224.52 | 0.3365 | -788.0 | -557.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.94 | 213.38 | 12.87 | 225.11 | 0.3120 | -955.0 | -783.8 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -9.31 | 213.36 | 12.85 | 224.21 | 0.3162 | -734.0 | -817.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.59 | 213.18 | 12.67 | 223.19 | 0.3174 | -743.0 | -545.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.30 | 212.81 | 12.30 | 233.50 | 0.2651 | -822.0 | -655.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.29 | 211.44 | 10.94 | 224.49 | 0.2697 | -893.0 | -699.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
