SDO HMI 2014-07-10 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.53 | 0.00 | 6.94 | 18.20 | 198.81 | -1.15 | 2.96 | 0.2565 | -290.3 | -338.2 | |
|
previous
or next observation for the same group /

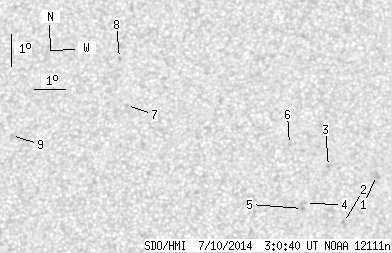

back to the solar disc SDO HMI 2014-07-10 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.54 | 0.00 | 1.81 | 17.74 | 202.10 | 2.14 | 351.58 | 0.2442 | -872.0 | -746.3 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 16.27 | 201.03 | 1.08 | 355.22 | 0.2172 | -755.0 | -633.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 18.03 | 200.57 | 0.61 | 357.64 | 0.2466 | -907.0 | -658.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 16.87 | 199.83 | -0.13 | 0.55 | 0.2266 | -591.0 | -507.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.71 | 199.73 | -0.23 | 0.97 | 0.2240 | -986.0 | -891.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.72 | 199.31 | -0.64 | 2.37 | 0.2584 | -834.0 | -621.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.94 | 194.02 | -5.94 | 19.30 | 0.2957 | 761.0 | 511.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.44 | 193.73 | -6.23 | 18.44 | 0.3207 | 761.0 | 655.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 18.97 | 190.31 | -9.65 | 31.17 | 0.3075 | 810.0 | 660.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
