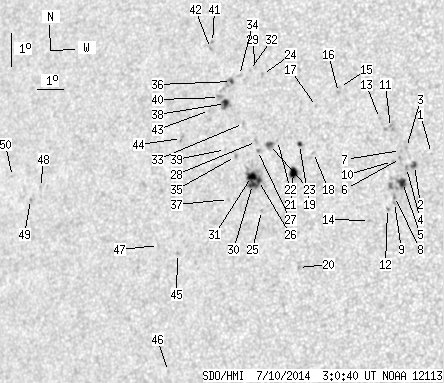

SDO HMI 2014-07-10 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.34 | 140.39 | 18.31 | 85.01 | 9.20 | 165.20 | -34.76 | 79.35 | 0.5742 | -212.0 | -124.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.41 | 9.37 | 170.59 | -29.36 | 77.75 | 0.4971 | -696.0 | -482.5 | |
| 1.27 | 3.54 | 0.73 | 2.03 | 8.98 | 170.02 | -29.93 | 78.68 | 0.5046 | -1048.5 | -824.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 9.53 | 169.69 | -30.27 | 77.72 | 0.5108 | -753.0 | -586.1 | |
| 0.00 | 2.00 | 0.00 | 1.15 | 8.91 | 169.74 | -30.21 | 78.89 | 0.5086 | -848.0 | -643.7 | |
| 4.27 | 15.17 | 2.45 | 8.73 | 8.45 | 169.64 | -30.32 | 79.82 | 0.5093 | -1049.4 | -638.0 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 9.18 | 169.50 | -30.45 | 78.43 | 0.5127 | -831.0 | -631.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 9.43 | 169.48 | -30.48 | 77.97 | 0.5136 | -632.0 | -462.2 | |
| 0.00 | 2.00 | 0.00 | 1.15 | 8.02 | 169.39 | -30.56 | 80.73 | 0.5122 | -823.0 | -657.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 7.83 | 169.41 | -30.55 | 81.09 | 0.5117 | -671.0 | -556.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 9.08 | 169.23 | -30.73 | 78.70 | 0.5166 | -500.0 | -410.2 | |
| 0.00 | 6.90 | 0.00 | 4.00 | 10.12 | 169.05 | -30.91 | 76.77 | 0.5215 | -676.0 | -647.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 7.64 | 169.17 | -30.79 | 81.50 | 0.5149 | -570.0 | -373.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 10.38 | 168.62 | -31.33 | 76.41 | 0.5283 | -733.0 | -556.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 7.25 | 168.55 | -31.40 | 82.35 | 0.5236 | -606.0 | -424.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 11.28 | 167.05 | -32.91 | 75.26 | 0.5531 | -523.0 | -357.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 11.13 | 167.03 | -32.93 | 75.54 | 0.5529 | -631.0 | -535.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 10.67 | 166.27 | -33.69 | 76.57 | 0.5625 | -434.0 | -437.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 9.26 | 166.32 | -33.64 | 79.06 | 0.5589 | -256.0 | -207.5 | |
| 1.36 | 2.63 | 0.82 | 1.58 | 9.48 | 165.78 | -34.18 | 78.78 | 0.5671 | 671.7 | 532.1 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 5.73 | 166.07 | -33.89 | 85.42 | 0.5586 | -777.0 | -515.6 | |
| 6.27 | 8.36 | 3.76 | 5.02 | 8.62 | 165.64 | -34.31 | 80.32 | 0.5675 | -771.5 | -457.1 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 9.58 | 164.94 | -35.02 | 78.80 | 0.5790 | 612.0 | 485.0 | |
| 2.00 | 5.00 | 1.22 | 3.04 | 9.44 | 164.65 | -35.31 | 79.09 | 0.5828 | 932.7 | 810.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 11.58 | 164.10 | -35.86 | 75.61 | 0.5946 | 635.0 | 511.7 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 7.42 | 164.56 | -35.40 | 82.58 | 0.5815 | -732.0 | -594.2 | |
| 2.00 | 29.15 | 1.22 | 17.82 | 8.33 | 164.35 | -35.60 | 81.04 | 0.5853 | -1086.5 | -582.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 9.24 | 164.22 | -35.74 | 79.51 | 0.5885 | 848.0 | 613.8 | |
| 0.00 | 2.00 | 0.00 | 1.22 | 9.52 | 164.15 | -35.81 | 79.06 | 0.5899 | 635.0 | 503.0 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 11.78 | 163.80 | -36.16 | 75.35 | 0.5992 | 627.0 | 620.1 | |
| 3.00 | -26.00 | 1.83 | -26.00 | 8.20 | 164.14 | -35.82 | 81.30 | 0.5881 | -890.9 | 999999 | |
| 5.54 | -26.00 | 3.39 | -26.00 | 8.44 | 164.08 | -35.88 | 80.89 | 0.5893 | -911.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 11.68 | 163.58 | -36.37 | 75.58 | 0.6019 | 632.0 | 503.6 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 10.05 | 163.58 | -36.38 | 78.28 | 0.5986 | 549.0 | 474.6 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 11.51 | 163.22 | -36.74 | 75.95 | 0.6064 | 674.0 | 586.8 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 9.03 | 163.40 | -36.56 | 80.01 | 0.5995 | -698.0 | -472.2 | |
| 0.82 | 8.63 | 0.51 | 5.39 | 11.32 | 162.94 | -37.02 | 76.34 | 0.6098 | 801.8 | 550.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 7.71 | 163.27 | -36.69 | 82.24 | 0.5997 | -560.0 | -452.8 | |
| 3.81 | 8.63 | 2.38 | 5.38 | 10.63 | 162.80 | -37.15 | 77.48 | 0.6103 | 943.7 | 718.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 9.23 | 162.99 | -36.97 | 79.75 | 0.6054 | -484.0 | -444.3 | |
| 0.00 | 3.36 | 0.00 | 2.10 | 10.81 | 162.54 | -37.41 | 77.25 | 0.6141 | 727.0 | 586.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 12.49 | 162.00 | -37.95 | 74.70 | 0.6248 | 533.0 | 563.0 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 12.30 | 161.96 | -38.00 | 75.01 | 0.6250 | 743.0 | 594.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 10.40 | 162.21 | -37.75 | 77.99 | 0.6178 | 717.0 | 574.2 | |
| 0.00 | 2.63 | 0.00 | 1.68 | 9.50 | 161.23 | -38.73 | 79.60 | 0.6296 | 691.0 | 648.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 5.98 | 161.45 | -38.51 | 85.20 | 0.6237 | -615.0 | -556.0 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 2.37 | 161.30 | -38.66 | 90.99 | 0.6265 | -432.0 | -351.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 6.20 | 160.68 | -39.28 | 84.89 | 0.6341 | -519.0 | -380.8 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 7.75 | 155.63 | -44.33 | 82.82 | 0.7001 | 595.0 | 545.3 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 7.37 | 155.25 | -44.71 | 83.39 | 0.7047 | 800.0 | 699.5 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 8.03 | 154.37 | -45.59 | 82.50 | 0.7157 | 557.0 | 451.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
