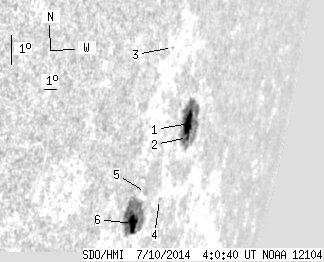

SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.89 | 124.43 | 33.08 | 180.13 | -11.92 | 267.95 | 68.54 | 255.81 | 0.9406 | 22.4 | -99.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 64.22 | 18.31 | 98.86 | -10.61 | 269.35 | 69.95 | 257.40 | 0.9475 | 439.5 | 61.7 | |
| 0.27 | -1.00 | 0.42 | -1.00 | -11.06 | 269.50 | 70.09 | 256.96 | 0.9486 | 307.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -8.09 | 266.90 | 67.49 | 259.73 | 0.9311 | 468.0 | 441.3 | |
| 0.00 | 1.27 | 0.00 | 1.86 | -12.92 | 268.04 | 68.64 | 254.79 | 0.9421 | 228.0 | 194.4 | |
| 0.00 | 2.72 | 0.00 | 3.74 | -12.61 | 266.69 | 67.28 | 254.89 | 0.9339 | -154.0 | -148.0 | |
| 10.63 | 55.95 | 14.35 | 75.30 | -13.56 | 266.16 | 66.75 | 253.80 | 0.9317 | -571.0 | -319.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
