SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.89 | 118.16 | 29.04 | 125.02 | 14.35 | 261.47 | 62.06 | 284.25 | 0.8840 | -289.6 | -181.7 | |
|
previous
or next observation for the same group /

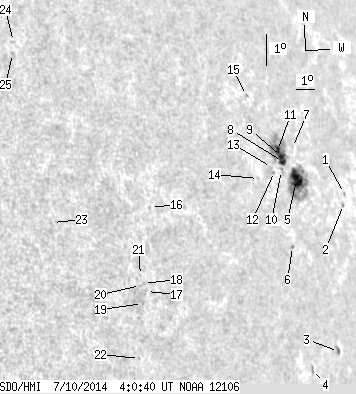

back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.22 | 13.77 | 265.63 | 66.22 | 283.37 | 0.9153 | -256.0 | -211.7 | |
| 0.00 | 1.73 | 0.00 | 2.08 | 13.44 | 265.37 | 65.96 | 283.02 | 0.9134 | -443.0 | -382.8 | |
| 0.64 | 3.45 | 0.71 | 3.82 | 9.01 | 263.10 | 63.69 | 278.17 | 0.8962 | -186.4 | -268.0 | |
| 0.00 | 2.36 | 0.00 | 2.46 | 8.57 | 261.19 | 61.79 | 277.68 | 0.8811 | 184.0 | 154.1 | |
| 15.62 | 54.32 | 17.01 | 59.23 | 14.40 | 262.41 | 63.00 | 284.22 | 0.8922 | -552.8 | -165.5 | |
| 0.00 | 1.27 | 0.00 | 1.33 | 12.38 | 261.20 | 61.79 | 282.00 | 0.8819 | -455.0 | -419.9 | |
| 0.00 | 1.00 | 0.00 | 1.10 | 15.39 | 262.66 | 63.25 | 285.32 | 0.8945 | -173.0 | -161.5 | |
| 3.27 | 37.42 | 3.49 | 39.82 | 15.01 | 261.75 | 62.34 | 284.94 | 0.8874 | -484.2 | -323.6 | |
| 4.00 | -8.00 | 4.26 | -8.00 | 15.16 | 261.76 | 62.35 | 285.12 | 0.8875 | -542.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 2.41 | 14.73 | 261.54 | 62.13 | 284.65 | 0.8856 | -514.0 | -495.6 | |
| 3.36 | -8.00 | 3.57 | -8.00 | 15.36 | 261.59 | 62.18 | 285.36 | 0.8863 | -633.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.85 | 14.73 | 261.07 | 61.66 | 284.68 | 0.8819 | -642.0 | -571.0 | |
| 0.00 | 1.18 | 0.00 | 1.23 | 14.86 | 260.93 | 61.53 | 284.84 | 0.8809 | -566.0 | -459.0 | |
| 0.00 | 0.64 | 0.00 | 0.64 | 14.58 | 259.94 | 60.53 | 284.59 | 0.8726 | -376.0 | -386.7 | |
| 0.00 | 1.09 | 0.00 | 1.12 | 17.16 | 260.49 | 61.08 | 287.49 | 0.8788 | 302.0 | 237.7 | |
| 0.00 | 0.54 | 0.00 | 0.46 | 14.03 | 253.39 | 53.98 | 284.56 | 0.8129 | 459.0 | 391.5 | |
| 0.00 | 1.63 | 0.00 | 1.34 | 11.48 | 252.39 | 52.98 | 281.49 | 0.8007 | 424.0 | 351.5 | |
| 0.00 | 0.91 | 0.00 | 0.75 | 11.73 | 252.30 | 52.89 | 281.81 | 0.8000 | 380.0 | 407.5 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 11.12 | 252.09 | 52.68 | 281.07 | 0.7973 | 388.0 | 363.1 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 11.67 | 252.13 | 52.72 | 281.76 | 0.7982 | 613.0 | 572.7 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 11.98 | 252.22 | 52.81 | 282.13 | 0.7993 | 439.0 | 438.3 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 9.45 | 251.53 | 52.12 | 279.00 | 0.7906 | 495.0 | 478.2 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 13.83 | 248.36 | 48.95 | 284.97 | 0.7602 | 303.0 | 271.4 | |
| 0.00 | 1.54 | 0.00 | 1.20 | 19.53 | 248.44 | 49.03 | 292.33 | 0.7716 | 476.0 | 431.2 | |
| 0.00 | 1.63 | 0.00 | 1.26 | 19.16 | 248.24 | 48.83 | 291.90 | 0.7687 | 555.0 | 451.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
