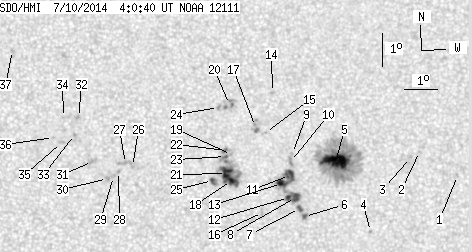

SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.60 | 310.39 | 32.11 | 154.49 | 5.88 | 203.91 | 4.50 | 270.36 | 0.0920 | -198.6 | -126.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | 5.48 | 209.24 | 9.83 | 279.93 | 0.1733 | -750.0 | -558.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 6.23 | 208.07 | 8.66 | 285.86 | 0.1563 | -752.0 | -579.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.05 | 207.79 | 8.38 | 285.19 | 0.1508 | -770.0 | -561.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.81 | 206.52 | 7.12 | 270.01 | 0.1242 | -880.0 | -685.7 | |
| 26.98 | 157.32 | 13.45 | 78.45 | 5.95 | 205.47 | 6.06 | 289.53 | 0.1120 | -1349.0 | -412.2 | |
| 1.09 | 2.82 | 0.54 | 1.40 | 4.28 | 204.50 | 5.09 | 275.19 | 0.0893 | -1128.2 | -815.7 | |
| 1.45 | 2.91 | 0.72 | 1.45 | 4.53 | 204.35 | 4.94 | 278.15 | 0.0871 | -1125.1 | -881.1 | |
| 5.09 | 37.70 | 2.53 | 18.74 | 4.86 | 204.23 | 4.82 | 282.23 | 0.0861 | -1153.0 | -787.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.20 | 204.15 | 4.74 | 296.82 | 0.0925 | -794.0 | -607.1 | |
| 0.00 | 3.91 | 0.00 | 1.94 | 5.96 | 204.09 | 4.68 | 294.69 | 0.0897 | -1032.0 | -782.7 | |
| 7.27 | -8.00 | 3.61 | -8.00 | 5.53 | 204.05 | 4.64 | 290.33 | 0.0863 | -1169.5 | 999999 | |
| 2.18 | -8.00 | 1.08 | -8.00 | 4.86 | 204.01 | 4.61 | 282.78 | 0.0824 | -1073.4 | 999999 | |
| 4.63 | -8.00 | 2.30 | -8.00 | 5.29 | 203.80 | 4.39 | 288.55 | 0.0808 | -1210.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 8.07 | 203.55 | 4.15 | 315.95 | 0.1034 | -968.0 | -739.0 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 6.85 | 203.33 | 3.92 | 307.86 | 0.0863 | 655.0 | 426.4 | |
| 0.00 | 2.54 | 0.00 | 1.26 | 4.41 | 203.21 | 3.81 | 278.75 | 0.0673 | 716.0 | 571.0 | |
| 0.00 | 6.18 | 0.00 | 3.07 | 7.03 | 203.02 | 3.61 | 311.82 | 0.0843 | -953.0 | -840.3 | |
| 5.09 | 43.96 | 2.52 | 21.82 | 5.39 | 202.27 | 2.86 | 298.71 | 0.0569 | 1106.5 | 621.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.18 | 202.28 | 2.87 | 309.54 | 0.0648 | 604.0 | 429.7 | |
| 0.00 | 6.72 | 0.00 | 3.34 | 7.71 | 202.23 | 2.82 | 324.25 | 0.0837 | 489.0 | 897.3 | |
| 8.27 | -18.00 | 4.10 | -18.00 | 5.60 | 202.12 | 2.71 | 303.33 | 0.0566 | 1275.9 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.49 | 6.31 | 202.12 | 2.71 | 312.53 | 0.0642 | 816.0 | 747.1 | |
| 0.73 | -18.00 | 0.36 | -18.00 | 6.12 | 202.09 | 2.68 | 310.67 | 0.0616 | 1019.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 7.62 | 201.89 | 2.48 | 327.03 | 0.0791 | 1117.0 | 858.8 | |
| 1.82 | 5.27 | 0.90 | 2.61 | 5.39 | 201.69 | 2.28 | 304.52 | 0.0483 | 1079.2 | 907.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 5.83 | 199.24 | -0.17 | 4.81 | 0.0350 | 874.0 | 582.5 | |
| 0.00 | 5.72 | 0.00 | 2.84 | 5.92 | 199.03 | -0.38 | 10.36 | 0.0371 | 1115.0 | 766.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.67 | 198.81 | -0.60 | 17.91 | 0.0339 | 1002.0 | 732.4 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 5.52 | 198.66 | -0.75 | 23.89 | 0.0323 | 834.0 | 673.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 5.46 | 198.47 | -0.93 | 29.76 | 0.0328 | 894.0 | 782.9 | |
| 0.00 | 5.27 | 0.00 | 2.61 | 5.98 | 198.01 | -1.39 | 32.88 | 0.0448 | 1072.0 | 761.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.32 | 197.58 | -1.83 | 27.46 | 0.0689 | 945.0 | 720.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.80 | 197.46 | -1.95 | 33.09 | 0.0621 | 996.0 | 743.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.32 | 197.12 | -2.29 | 33.05 | 0.0729 | 788.0 | 651.9 | |
| 0.00 | 2.54 | 0.00 | 1.26 | 6.56 | 197.06 | -2.35 | 40.54 | 0.0628 | 896.0 | 729.6 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.71 | 196.82 | -2.59 | 41.81 | 0.0677 | 841.0 | 679.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.36 | 195.53 | -3.87 | 34.64 | 0.1178 | 776.0 | 564.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
