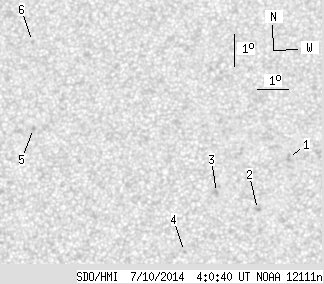

SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.36 | 0.00 | 5.81 | 17.60 | 198.79 | -0.62 | 1.35 | 0.2446 | -294.0 | -337.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.53 | 17.78 | 202.06 | 2.66 | 349.62 | 0.2461 | -806.0 | -742.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 16.15 | 201.06 | 1.65 | 352.63 | 0.2161 | -924.0 | -760.5 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 16.69 | 199.76 | 0.35 | 358.50 | 0.2235 | -926.0 | -771.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.85 | 198.74 | -0.67 | 3.37 | 0.1923 | -897.0 | -665.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 18.69 | 193.87 | -5.54 | 19.62 | 0.2736 | 991.0 | 715.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.45 | 193.74 | -5.67 | 16.89 | 0.3179 | 798.0 | 644.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
