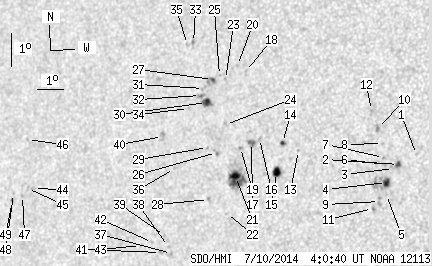

SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.59 | 130.90 | 15.36 | 79.53 | 9.05 | 164.35 | -35.06 | 79.66 | 0.5780 | -114.0 | -126.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.36 | 9.30 | 170.65 | -28.76 | 77.71 | 0.4879 | -605.0 | -448.9 | |
| 1.45 | 3.00 | 0.83 | 1.71 | 8.98 | 170.04 | -29.37 | 78.55 | 0.4962 | -1001.0 | -817.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 8.85 | 169.88 | -29.53 | 78.85 | 0.4984 | -390.0 | -468.2 | |
| 3.81 | 13.17 | 2.18 | 7.54 | 8.41 | 169.67 | -29.74 | 79.77 | 0.5007 | -1093.2 | -632.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 8.05 | 169.70 | -29.71 | 80.49 | 0.4996 | -688.0 | -534.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 8.96 | 169.58 | -29.83 | 78.70 | 0.5030 | -710.0 | -622.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 9.18 | 169.49 | -29.92 | 78.31 | 0.5048 | -811.0 | -658.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 9.60 | 169.42 | -29.99 | 77.49 | 0.5069 | -722.0 | -615.7 | |
| 0.00 | 3.54 | 0.00 | 2.03 | 7.83 | 169.46 | -29.94 | 80.98 | 0.5027 | -472.0 | -593.3 | |
| 0.00 | 3.27 | 0.00 | 1.88 | 10.06 | 169.19 | -30.22 | 76.68 | 0.5112 | -890.0 | -722.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 7.61 | 169.23 | -30.18 | 81.47 | 0.5058 | -635.0 | -471.9 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 10.60 | 168.92 | -30.49 | 75.73 | 0.5166 | -741.0 | -671.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 9.29 | 166.40 | -33.01 | 78.88 | 0.5500 | -325.0 | -288.6 | |
| 1.27 | 2.54 | 0.76 | 1.52 | 9.51 | 165.78 | -33.63 | 78.62 | 0.5592 | 759.4 | 606.8 | |
| 5.90 | 8.08 | 3.52 | 4.82 | 8.59 | 165.66 | -33.75 | 80.29 | 0.5595 | -797.9 | -481.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 9.60 | 164.91 | -34.50 | 78.65 | 0.5717 | 700.0 | 573.5 | |
| 1.45 | 4.45 | 0.88 | 2.69 | 9.47 | 164.63 | -34.78 | 78.94 | 0.5755 | 960.3 | 794.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 11.64 | 164.12 | -35.29 | 75.37 | 0.5870 | 671.0 | 529.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 9.30 | 164.23 | -35.18 | 79.31 | 0.5808 | 749.0 | 649.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 11.81 | 163.79 | -35.62 | 75.17 | 0.5920 | 790.0 | 649.8 | |
| 5.99 | 29.79 | 3.64 | 18.09 | 8.41 | 164.14 | -35.27 | 80.86 | 0.5807 | -947.1 | -645.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 7.27 | 163.91 | -35.50 | 82.86 | 0.5827 | -552.0 | -396.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 11.36 | 163.39 | -36.02 | 76.02 | 0.5963 | 648.0 | 591.1 | |
| 0.00 | 2.45 | 0.00 | 1.50 | 9.98 | 163.58 | -35.83 | 78.28 | 0.5910 | 486.0 | 360.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 11.48 | 163.14 | -36.27 | 75.90 | 0.5999 | 688.0 | 573.2 | |
| 0.00 | 2.45 | 0.00 | 1.51 | 9.11 | 163.34 | -36.07 | 79.79 | 0.5929 | -603.0 | -445.4 | |
| 1.27 | 5.36 | 0.79 | 3.32 | 11.34 | 162.89 | -36.52 | 76.18 | 0.6031 | 802.3 | 586.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 7.67 | 163.19 | -36.22 | 82.25 | 0.5932 | -595.0 | -497.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 9.25 | 162.98 | -36.43 | 79.62 | 0.5981 | -546.0 | -416.2 | |
| 4.45 | 6.99 | 2.76 | 4.34 | 10.63 | 162.76 | -36.65 | 77.39 | 0.6034 | 909.7 | 699.6 | |
| 0.00 | 2.00 | 0.00 | 1.24 | 11.05 | 162.58 | -36.83 | 76.73 | 0.6066 | 537.0 | 474.3 | |
| 0.00 | 2.82 | 0.00 | 1.75 | 10.83 | 162.50 | -36.91 | 77.11 | 0.6073 | 697.0 | 579.4 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 12.45 | 161.97 | -37.44 | 74.62 | 0.6178 | 696.0 | 623.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 10.42 | 162.09 | -37.32 | 77.87 | 0.6121 | 734.0 | 630.0 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 12.38 | 161.75 | -37.66 | 74.80 | 0.6207 | 518.0 | 406.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 8.56 | 161.78 | -37.63 | 80.95 | 0.6136 | -517.0 | -428.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 5.97 | 161.91 | -37.50 | 85.19 | 0.6098 | -732.0 | -620.0 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 6.18 | 161.78 | -37.63 | 84.85 | 0.6117 | -710.0 | -542.0 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 6.50 | 161.60 | -37.81 | 84.33 | 0.6144 | -552.0 | -453.8 | |
| 0.00 | 4.45 | 0.00 | 2.81 | 9.52 | 161.19 | -38.22 | 79.49 | 0.6228 | 669.0 | 553.1 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 5.98 | 161.48 | -37.92 | 85.19 | 0.6157 | -612.0 | -483.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 6.27 | 161.15 | -38.26 | 84.73 | 0.6204 | -598.0 | -481.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 6.16 | 160.69 | -38.72 | 84.93 | 0.6266 | -487.0 | -414.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 7.71 | 156.16 | -43.25 | 82.81 | 0.6867 | 319.0 | 371.2 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 7.70 | 155.90 | -43.51 | 82.84 | 0.6899 | 628.0 | 528.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 9.20 | 155.69 | -43.72 | 80.70 | 0.6936 | 593.0 | 448.9 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 7.48 | 155.72 | -43.69 | 83.18 | 0.6921 | 586.0 | 507.9 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 7.52 | 155.33 | -44.08 | 83.14 | 0.6970 | 584.0 | 481.9 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 7.31 | 155.31 | -44.10 | 83.45 | 0.6971 | 680.0 | 678.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
