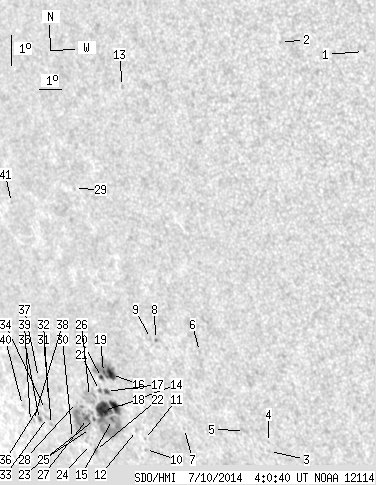

SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.07 | 198.37 | 38.55 | 170.75 | -19.69 | 149.11 | -50.30 | 117.46 | 0.8182 | 385.2 | 86.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.28 | -7.87 | 163.33 | -36.08 | 108.06 | 0.6158 | 523.0 | 527.2 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -7.72 | 160.11 | -39.30 | 106.46 | 0.6567 | 614.0 | 506.9 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -20.99 | 156.63 | -42.77 | 122.46 | 0.7537 | 660.0 | 667.0 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -20.69 | 156.70 | -42.71 | 122.13 | 0.7516 | 629.0 | 550.9 | |
| 0.00 | 3.18 | 0.00 | 2.41 | -20.33 | 155.75 | -43.66 | 121.20 | 0.7591 | 516.0 | 371.9 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -17.79 | 154.58 | -44.83 | 117.54 | 0.7593 | 193.0 | 208.8 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -20.40 | 152.95 | -46.46 | 119.92 | 0.7861 | 182.0 | 236.7 | |
| 0.36 | 1.36 | 0.28 | 1.07 | -17.49 | 152.65 | -46.76 | 116.32 | 0.7773 | 741.0 | 621.4 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -17.47 | 152.42 | -46.98 | 116.19 | 0.7795 | 444.0 | 442.8 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -21.22 | 150.71 | -48.70 | 119.87 | 0.8098 | 488.0 | 394.1 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -20.88 | 150.81 | -48.60 | 119.53 | 0.8076 | 454.0 | 407.9 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -20.59 | 150.54 | -48.87 | 119.08 | 0.8090 | 645.0 | 476.2 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.41 | 153.21 | -46.20 | 106.34 | 0.7443 | 617.0 | 547.8 | |
| 7.81 | 74.39 | 6.61 | 63.89 | -19.87 | 149.80 | -49.61 | 117.94 | 0.8129 | 830.0 | 105.1 | |
| 1.27 | -14.00 | 1.09 | -14.00 | -20.28 | 149.47 | -49.94 | 118.28 | 0.8174 | 444.0 | 999999 | |
| 5.81 | 34.24 | 4.85 | 28.71 | -18.77 | 150.06 | -49.35 | 116.76 | 0.8067 | 946.2 | 361.6 | |
| 1.73 | 6.54 | 1.46 | 5.55 | -19.35 | 149.57 | -49.84 | 117.25 | 0.8132 | 825.6 | 582.7 | |
| 19.17 | -14.00 | 16.48 | -14.00 | -20.00 | 149.14 | -50.27 | 117.83 | 0.8194 | 427.0 | 999999 | |
| 1.73 | -16.00 | 1.45 | -16.00 | -18.72 | 149.68 | -49.73 | 116.56 | 0.8101 | 837.0 | 999999 | |
| 1.18 | -16.00 | 1.00 | -16.00 | -18.90 | 149.51 | -49.90 | 116.69 | 0.8122 | 427.5 | 999999 | |
| 0.73 | -17.00 | 0.62 | -17.00 | -19.34 | 149.22 | -50.19 | 117.10 | 0.8163 | 515.4 | 999999 | |
| 0.73 | 2.63 | 0.65 | 2.35 | -21.39 | 148.07 | -51.34 | 118.99 | 0.8333 | 313.5 | 177.8 | |
| 0.73 | -14.00 | 0.64 | -14.00 | -20.33 | 148.52 | -50.89 | 117.97 | 0.8259 | 224.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -21.20 | 147.90 | -51.51 | 118.71 | 0.8341 | 303.0 | 288.0 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -20.65 | 148.17 | -51.24 | 118.19 | 0.8300 | 16.0 | 27.1 | |
| 0.00 | 13.44 | 0.00 | 11.65 | -19.57 | 148.61 | -50.80 | 117.12 | 0.8225 | 79.0 | 126.8 | |
| 2.82 | 35.06 | 2.48 | 31.12 | -20.32 | 148.17 | -51.24 | 117.81 | 0.8289 | 419.6 | -134.3 | |
| 0.00 | 0.73 | 0.00 | 0.64 | -19.81 | 147.83 | -51.58 | 117.10 | 0.8302 | 339.0 | 246.1 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -12.77 | 150.25 | -49.16 | 109.63 | 0.7856 | 499.0 | 423.9 | |
| 0.00 | 3.45 | 0.00 | 3.14 | -21.05 | 147.02 | -52.39 | 118.20 | 0.8410 | -290.0 | -304.1 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -20.63 | 146.09 | -53.32 | 117.40 | 0.8474 | -574.0 | -509.8 | |
| 0.00 | 0.64 | 0.00 | 0.58 | -19.79 | 146.34 | -53.07 | 116.54 | 0.8428 | -545.0 | -546.1 | |
| 0.00 | 2.36 | 0.00 | 2.19 | -20.41 | 145.98 | -53.43 | 117.11 | 0.8476 | -473.0 | -486.1 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -20.14 | 146.01 | -53.40 | 116.81 | 0.8466 | -577.0 | -541.6 | |
| 1.00 | 2.54 | 0.94 | 2.39 | -20.50 | 145.49 | -53.92 | 117.04 | 0.8519 | -554.5 | -443.1 | |
| 0.00 | 0.82 | 0.00 | 0.76 | -20.02 | 145.74 | -53.67 | 116.59 | 0.8485 | -647.0 | -554.4 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -19.08 | 146.14 | -53.27 | 115.66 | 0.8424 | 263.0 | 198.8 | |
| 0.00 | 1.18 | 0.00 | 1.12 | -20.55 | 145.13 | -54.28 | 116.97 | 0.8550 | -535.0 | -423.8 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -20.60 | 144.94 | -54.47 | 116.95 | 0.8567 | -320.0 | -338.7 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -20.08 | 144.76 | -54.65 | 116.32 | 0.8566 | -504.0 | -431.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -13.38 | 146.93 | -52.48 | 109.33 | 0.8198 | 442.0 | 337.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
