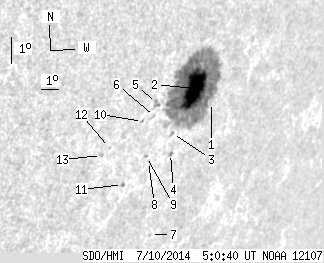

SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.77 | 292.79 | 46.88 | 280.90 | -19.18 | 254.00 | 55.14 | 244.84 | 0.8583 | 685.3 | 239.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.36 | -19.64 | 255.36 | 56.50 | 244.77 | 0.8702 | -276.0 | -262.5 | |
| 47.96 | 277.52 | 46.10 | 266.66 | -19.10 | 254.09 | 55.23 | 244.96 | 0.8588 | 859.1 | 243.2 | |
| 0.00 | 1.73 | 0.00 | 1.66 | -20.56 | 253.59 | 54.73 | 243.18 | 0.8587 | 377.0 | 300.8 | |
| 0.45 | 1.73 | 0.44 | 1.68 | -21.24 | 253.85 | 54.99 | 242.51 | 0.8626 | 369.4 | 343.1 | |
| 0.00 | 4.18 | 0.00 | 3.84 | -19.49 | 252.16 | 53.30 | 243.89 | 0.8439 | 763.0 | 603.1 | |
| 0.00 | 0.73 | 0.00 | 0.67 | -19.92 | 252.26 | 53.40 | 243.43 | 0.8460 | 573.0 | 475.4 | |
| 0.00 | 0.55 | 0.00 | 0.55 | -24.00 | 254.35 | 55.49 | 239.67 | 0.8741 | -332.0 | -331.5 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -21.44 | 252.72 | 53.86 | 241.89 | 0.8542 | 377.0 | 382.3 | |
| 0.00 | 1.09 | 0.00 | 1.02 | -21.26 | 252.51 | 53.65 | 242.02 | 0.8520 | 579.0 | 466.5 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -20.05 | 251.68 | 52.82 | 243.07 | 0.8415 | -152.0 | -98.1 | |
| 0.36 | 1.54 | 0.34 | 1.44 | -22.15 | 251.66 | 52.80 | 240.72 | 0.8479 | -421.5 | -315.3 | |
| 0.00 | 0.36 | 0.00 | 0.32 | -20.84 | 250.29 | 51.43 | 241.67 | 0.8323 | -461.0 | -490.0 | |
| 0.00 | 1.64 | 0.00 | 1.45 | -21.09 | 249.99 | 51.13 | 241.27 | 0.8306 | -672.0 | -582.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
