SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 268.37 | 1535.35 | 147.12 | 838.81 | -7.74 | 221.14 | 22.28 | 242.38 | 0.4256 | 812.3 | 333.4 | |
|
previous
or next observation for the same group /

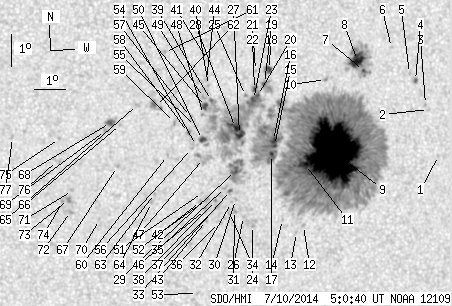

back to the solar disc SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.19 | 225.49 | 26.63 | 245.58 | 0.4892 | 544.0 | 395.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.75 | 225.06 | 26.19 | 248.02 | 0.4747 | 406.0 | 417.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.59 | 224.94 | 26.08 | 248.24 | 0.4722 | 700.0 | 581.7 | |
| 0.82 | 2.00 | 0.46 | 1.12 | -5.84 | 224.56 | 25.70 | 249.48 | 0.4626 | 926.9 | 805.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -5.62 | 224.35 | 25.49 | 249.77 | 0.4583 | 569.0 | 506.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -4.79 | 223.71 | 24.84 | 251.03 | 0.4446 | -694.0 | -510.6 | |
| 1.09 | 61.50 | 0.60 | 33.73 | -5.48 | 222.79 | 23.93 | 248.86 | 0.4347 | -974.5 | 221.3 | |
| 14.53 | -7.00 | 7.97 | -7.00 | -5.16 | 222.58 | 23.72 | 249.37 | 0.4298 | 1068.8 | 999999 | |
| 204.66 | 1303.82 | 112.69 | 713.96 | -7.96 | 221.91 | 23.05 | 242.81 | 0.4378 | 1617.5 | 422.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -5.72 | 221.53 | 22.67 | 247.24 | 0.4177 | 835.0 | 738.9 | |
| 3.82 | -9.00 | 2.09 | -9.00 | -8.34 | 221.00 | 22.14 | 241.06 | 0.4278 | 1491.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -10.25 | 221.06 | 22.20 | 237.31 | 0.4436 | 219.0 | 156.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -10.47 | 220.84 | 21.98 | 236.64 | 0.4424 | -563.0 | -385.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.04 | 220.34 | 21.48 | 236.86 | 0.4324 | -545.0 | -455.5 | |
| 1.82 | -9.00 | 0.99 | -9.00 | -7.72 | 219.94 | 21.08 | 241.19 | 0.4084 | 1242.4 | 999999 | |
| 4.18 | -9.00 | 2.26 | -9.00 | -7.57 | 219.90 | 21.04 | 241.48 | 0.4067 | 1228.0 | 999999 | |
| 1.64 | -9.00 | 0.89 | -9.00 | -8.00 | 219.85 | 20.99 | 240.49 | 0.4093 | 1431.6 | 999999 | |
| 2.91 | 5.36 | 1.56 | 2.88 | -5.36 | 219.64 | 20.78 | 246.23 | 0.3876 | -881.9 | -752.0 | |
| 1.18 | 10.45 | 0.63 | 5.62 | -5.79 | 219.52 | 20.66 | 245.09 | 0.3887 | -660.8 | -81.5 | |
| 0.73 | -9.00 | 0.39 | -9.00 | -6.16 | 219.31 | 20.45 | 244.00 | 0.3881 | -570.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -5.38 | 219.21 | 20.35 | 245.74 | 0.3814 | -708.0 | -624.9 | |
| 1.64 | -9.00 | 0.88 | -9.00 | -5.97 | 219.20 | 20.34 | 244.33 | 0.3852 | -909.9 | 999999 | |
| 2.00 | -9.00 | 1.07 | -9.00 | -6.28 | 219.18 | 20.32 | 243.58 | 0.3871 | -402.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -10.21 | 219.36 | 20.50 | 235.31 | 0.4209 | 225.0 | 328.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -6.15 | 218.91 | 20.05 | 243.58 | 0.3823 | -750.0 | -560.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.92 | 219.04 | 20.18 | 235.48 | 0.4142 | -510.0 | -403.0 | |
| 5.63 | -9.00 | 3.03 | -9.00 | -7.35 | 218.77 | 19.91 | 240.62 | 0.3892 | 1087.8 | 999999 | |
| 8.90 | -9.00 | 4.78 | -9.00 | -7.13 | 218.63 | 19.77 | 240.95 | 0.3855 | 1219.4 | 999999 | |
| 3.72 | 31.25 | 2.01 | 16.87 | -8.47 | 218.69 | 19.83 | 238.05 | 0.3972 | 1025.5 | 669.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -9.38 | 218.74 | 19.88 | 236.19 | 0.4055 | -483.0 | -382.2 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -9.72 | 218.73 | 19.87 | 235.47 | 0.4084 | -521.0 | -460.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.47 | 218.62 | 19.76 | 235.84 | 0.4047 | -639.0 | -479.0 | |
| 0.64 | 2.09 | 0.34 | 1.13 | -9.09 | 218.56 | 19.70 | 236.55 | 0.4007 | -601.3 | -452.8 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -9.78 | 218.57 | 19.71 | 235.13 | 0.4068 | -615.0 | -436.0 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -8.99 | 218.39 | 19.53 | 236.53 | 0.3975 | -704.0 | -592.2 | |
| 0.00 | 2.54 | 0.00 | 1.38 | -10.09 | 218.26 | 19.40 | 234.08 | 0.4055 | -536.0 | -478.0 | |
| 0.00 | 2.82 | 0.00 | 1.52 | -9.58 | 218.17 | 19.30 | 234.98 | 0.3997 | -780.0 | -641.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.39 | 218.09 | 19.23 | 235.27 | 0.3970 | -981.0 | -853.5 | |
| 0.55 | -9.00 | 0.29 | -9.00 | -6.27 | 217.81 | 18.95 | 241.95 | 0.3674 | -851.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -5.81 | 217.70 | 18.84 | 242.95 | 0.3622 | -644.0 | -527.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.00 | 217.64 | 18.78 | 244.91 | 0.3557 | -704.0 | -627.7 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -9.35 | 217.79 | 18.93 | 234.94 | 0.3928 | -1048.0 | -857.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.01 | 217.83 | 18.97 | 233.62 | 0.3993 | -668.0 | -532.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -5.62 | 217.63 | 18.77 | 243.33 | 0.3598 | -795.0 | -679.2 | |
| 2.91 | -9.00 | 1.55 | -9.00 | -6.46 | 217.63 | 18.76 | 241.27 | 0.3661 | -1033.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -9.67 | 217.78 | 18.92 | 234.26 | 0.3954 | -770.0 | -671.3 | |
| 0.00 | 11.54 | 0.00 | 6.17 | -8.07 | 217.63 | 18.77 | 237.51 | 0.3793 | 30.0 | -96.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.70 | 217.57 | 18.71 | 240.61 | 0.3672 | -742.0 | -586.0 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -6.17 | 217.55 | 18.69 | 241.86 | 0.3628 | -894.0 | -768.6 | |
| 2.73 | 6.36 | 1.45 | 3.40 | -7.48 | 217.57 | 18.71 | 238.78 | 0.3735 | -843.1 | -542.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -9.13 | 217.65 | 18.79 | 235.21 | 0.3889 | -840.0 | -692.1 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -9.41 | 217.60 | 18.74 | 234.54 | 0.3908 | -899.0 | -651.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -12.31 | 217.69 | 18.83 | 228.94 | 0.4199 | -804.0 | -543.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.66 | 217.38 | 18.52 | 238.10 | 0.3724 | -593.0 | -439.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.07 | 217.33 | 18.46 | 239.41 | 0.3667 | -660.0 | -514.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -7.75 | 217.22 | 18.36 | 237.68 | 0.3710 | -631.0 | -529.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -6.75 | 217.15 | 18.29 | 239.92 | 0.3617 | -942.0 | -746.5 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -7.25 | 217.11 | 18.25 | 238.68 | 0.3651 | -1023.0 | -815.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.93 | 216.64 | 17.78 | 238.79 | 0.3560 | -826.0 | -722.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -7.95 | 216.46 | 17.60 | 236.09 | 0.3623 | -784.0 | -526.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -4.76 | 216.25 | 17.39 | 243.82 | 0.3333 | -739.0 | -644.6 | |
| 0.00 | 7.72 | 0.00 | 4.07 | -6.42 | 216.01 | 17.15 | 239.13 | 0.3429 | -1012.0 | -794.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.13 | 216.09 | 17.23 | 232.87 | 0.3684 | -835.0 | -656.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -9.41 | 216.01 | 17.15 | 232.13 | 0.3701 | -802.0 | -674.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -6.35 | 215.43 | 16.57 | 238.45 | 0.3341 | -763.0 | -612.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -6.95 | 214.91 | 16.05 | 236.06 | 0.3322 | -843.0 | -659.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.26 | 214.86 | 16.00 | 232.80 | 0.3439 | -964.0 | -735.2 | |
| 2.27 | 6.45 | 1.19 | 3.38 | -6.89 | 214.59 | 15.73 | 235.69 | 0.3272 | -1048.0 | -743.8 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -7.13 | 214.44 | 15.57 | 234.81 | 0.3274 | -874.0 | -732.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.91 | 214.36 | 15.50 | 228.21 | 0.3545 | -727.0 | -483.9 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -8.98 | 213.45 | 14.59 | 228.55 | 0.3334 | -990.0 | -800.3 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -9.64 | 213.41 | 14.55 | 227.01 | 0.3402 | -830.0 | -648.3 | |
| 0.00 | 3.45 | 0.00 | 1.81 | -9.26 | 213.34 | 14.47 | 227.69 | 0.3350 | -1011.0 | -904.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.32 | 213.15 | 14.29 | 227.18 | 0.3334 | -838.0 | -744.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.35 | 212.98 | 14.12 | 231.55 | 0.3103 | -892.0 | -674.9 | |
| 0.00 | 4.09 | 0.00 | 2.13 | -8.04 | 212.94 | 14.08 | 229.76 | 0.3169 | -387.0 | -545.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.30 | 211.49 | 12.63 | 228.56 | 0.2907 | -839.0 | -715.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
