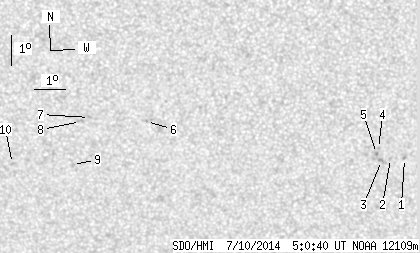

SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.43 | 0.00 | 8.51 | -21.64 | 198.44 | -0.42 | 179.00 | 0.4399 | 136.9 | 97.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.04 | 204.40 | 5.54 | 191.60 | 0.4471 | 824.0 | 686.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.03 | 203.94 | 5.08 | 190.66 | 0.4456 | 858.0 | 613.9 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -22.10 | 203.65 | 4.79 | 190.03 | 0.4458 | 866.0 | 744.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.69 | 203.53 | 4.67 | 189.97 | 0.4392 | 829.0 | 588.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.86 | 203.47 | 4.61 | 189.77 | 0.4417 | 1009.0 | 832.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.76 | 195.94 | -2.92 | 173.46 | 0.4208 | -838.0 | -681.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.64 | 194.08 | -4.78 | 169.33 | 0.4232 | -715.0 | -549.8 | |
| 0.00 | 2.63 | 0.00 | 1.44 | -20.77 | 193.78 | -5.08 | 168.75 | 0.4262 | -653.0 | -543.9 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -22.23 | 193.46 | -5.40 | 168.78 | 0.4495 | -43.0 | -87.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.21 | 191.47 | -7.39 | 164.82 | 0.4563 | -768.0 | -551.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
