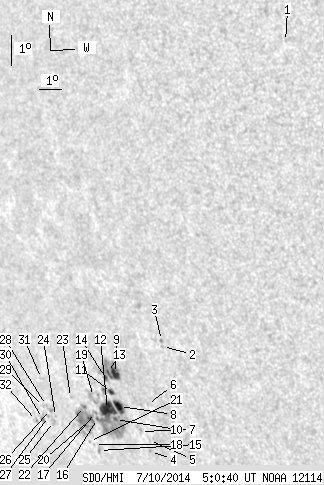

SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.97 | 194.98 | 34.55 | 166.70 | -19.79 | 148.92 | -49.94 | 117.72 | 0.8154 | 419.6 | 59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.41 | -7.70 | 160.03 | -38.83 | 106.61 | 0.6506 | 589.0 | 540.6 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -17.72 | 152.67 | -46.19 | 116.84 | 0.7726 | 491.0 | 451.1 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -17.52 | 152.69 | -46.17 | 116.61 | 0.7717 | 689.0 | 621.9 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -21.28 | 150.72 | -48.14 | 120.20 | 0.8051 | 509.0 | 400.2 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -20.91 | 150.83 | -48.03 | 119.81 | 0.8026 | 526.0 | 420.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -19.70 | 151.24 | -47.62 | 118.57 | 0.7942 | 505.0 | 388.5 | |
| 0.00 | 1.82 | 0.00 | 1.51 | -20.63 | 150.51 | -48.35 | 119.35 | 0.8044 | 600.0 | 396.5 | |
| 7.81 | 80.85 | 6.54 | 68.60 | -19.84 | 149.81 | -49.05 | 118.13 | 0.8078 | 853.9 | 77.0 | |
| 6.18 | 31.34 | 5.10 | 25.97 | -18.73 | 150.06 | -48.80 | 116.95 | 0.8016 | 943.2 | 397.4 | |
| 1.18 | -8.00 | 1.00 | -8.00 | -20.29 | 149.42 | -49.44 | 118.49 | 0.8130 | 433.7 | 999999 | |
| 2.27 | 7.18 | 1.90 | 6.03 | -19.38 | 149.60 | -49.26 | 117.52 | 0.8081 | 791.2 | 508.5 | |
| 17.17 | -8.00 | 14.57 | -8.00 | -19.97 | 149.15 | -49.71 | 118.02 | 0.8142 | 538.2 | 999999 | |
| 1.00 | -9.00 | 0.83 | -9.00 | -18.72 | 149.67 | -49.19 | 116.78 | 0.8051 | 741.1 | 999999 | |
| 1.36 | -9.00 | 1.14 | -9.00 | -18.90 | 149.50 | -49.36 | 116.91 | 0.8073 | 506.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.92 | -21.39 | 148.09 | -50.77 | 119.21 | 0.8285 | 310.0 | 213.3 | |
| 0.91 | -8.00 | 0.78 | -8.00 | -20.30 | 148.50 | -50.36 | 118.14 | 0.8212 | 278.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.65 | -20.10 | 148.48 | -50.38 | 117.90 | 0.8206 | 504.0 | 369.4 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -21.20 | 147.92 | -50.94 | 118.93 | 0.8293 | 353.0 | 315.0 | |
| 0.00 | 9.36 | 0.00 | 8.01 | -19.57 | 148.62 | -50.24 | 117.34 | 0.8176 | 70.0 | 145.4 | |
| 2.54 | 36.34 | 2.22 | 31.89 | -20.36 | 148.11 | -50.75 | 118.05 | 0.8248 | 413.1 | -149.9 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -21.11 | 147.70 | -51.16 | 118.74 | 0.8308 | 172.0 | 126.9 | |
| 0.55 | -20.00 | 0.47 | -20.00 | -19.93 | 148.00 | -50.87 | 117.52 | 0.8244 | 221.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -19.67 | 147.39 | -51.47 | 116.98 | 0.8288 | 345.0 | 258.2 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -20.36 | 146.27 | -52.59 | 117.35 | 0.8406 | -451.0 | -408.2 | |
| 0.00 | 3.09 | 0.00 | 2.83 | -20.53 | 146.07 | -52.79 | 117.48 | 0.8427 | -548.0 | -520.0 | |
| 0.00 | 2.18 | 0.00 | 1.99 | -20.13 | 146.11 | -52.75 | 117.04 | 0.8412 | -626.0 | -597.0 | |
| 0.00 | 1.00 | 0.00 | 0.92 | -20.38 | 145.88 | -52.98 | 117.23 | 0.8439 | -444.0 | -411.9 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -20.01 | 145.95 | -52.91 | 116.84 | 0.8422 | -674.0 | -589.5 | |
| 0.00 | 1.00 | 0.00 | 0.92 | -20.05 | 145.77 | -53.09 | 116.83 | 0.8438 | -625.0 | -569.4 | |
| 0.00 | 3.09 | 0.00 | 2.86 | -20.46 | 145.51 | -53.35 | 117.20 | 0.8472 | -630.0 | -520.1 | |
| 0.00 | 1.64 | 0.00 | 1.48 | -19.11 | 146.11 | -52.75 | 115.88 | 0.8381 | 210.0 | 137.2 | |
| 0.00 | 1.64 | 0.00 | 1.53 | -20.55 | 145.13 | -53.73 | 117.16 | 0.8506 | -550.0 | -418.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
