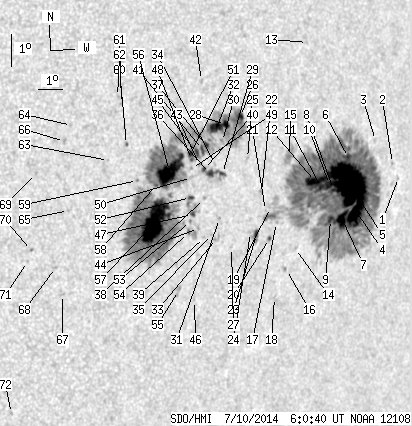

SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 309.51 | 1577.88 | 213.32 | 1083.56 | -7.04 | 240.91 | 42.60 | 255.61 | 0.6944 | 133.1 | 61.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.69 | -6.93 | 246.40 | 48.09 | 257.43 | 0.7591 | 385.0 | 290.4 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -6.47 | 246.07 | 47.75 | 257.93 | 0.7544 | 461.0 | 350.7 | |
| 0.00 | 1.82 | 0.00 | 1.34 | -5.72 | 245.21 | 46.89 | 258.71 | 0.7431 | 127.0 | 121.2 | |
| 25.62 | 829.96 | 18.85 | 598.33 | -7.89 | 244.63 | 46.31 | 255.68 | 0.7415 | 679.0 | 389.4 | |
| 96.93 | -4.00 | 70.42 | -4.00 | -6.97 | 244.14 | 45.83 | 256.77 | 0.7337 | 1208.7 | 999999 | |
| 2.45 | -4.00 | 1.77 | -4.00 | -6.19 | 244.05 | 45.74 | 257.79 | 0.7308 | 732.0 | 999999 | |
| 11.17 | -4.00 | 8.14 | -4.00 | -8.11 | 244.03 | 45.72 | 255.21 | 0.7353 | 959.1 | 999999 | |
| 2.09 | -4.00 | 1.50 | -4.00 | -7.15 | 243.51 | 45.19 | 256.34 | 0.7268 | 1156.4 | 999999 | |
| 3.09 | -4.00 | 2.23 | -4.00 | -8.08 | 243.50 | 45.19 | 255.09 | 0.7291 | 993.3 | 999999 | |
| 5.72 | -4.00 | 4.09 | -4.00 | -6.99 | 243.31 | 45.00 | 256.51 | 0.7241 | 1112.8 | 999999 | |
| 5.00 | -4.00 | 3.56 | -4.00 | -7.06 | 242.97 | 44.66 | 256.30 | 0.7203 | 1054.4 | 999999 | |
| 13.81 | -4.00 | 9.77 | -4.00 | -6.86 | 242.69 | 44.38 | 256.49 | 0.7164 | 1208.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -2.55 | 242.01 | 43.70 | 262.34 | 0.6986 | 520.0 | 399.4 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -8.92 | 242.10 | 43.79 | 253.50 | 0.7153 | 458.0 | 420.8 | |
| 0.00 | 12.90 | 0.00 | 8.92 | -6.00 | 241.49 | 43.18 | 257.33 | 0.6998 | 487.0 | 482.4 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -9.56 | 241.82 | 43.51 | 252.53 | 0.7140 | 481.0 | 536.4 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -8.06 | 241.18 | 42.86 | 254.36 | 0.7017 | 441.0 | 413.0 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -10.42 | 241.45 | 43.14 | 251.23 | 0.7125 | 420.0 | 369.7 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -7.58 | 240.86 | 42.55 | 254.92 | 0.6965 | 313.0 | 239.5 | |
| 0.91 | 1.73 | 0.63 | 1.19 | -8.55 | 240.95 | 42.63 | 253.60 | 0.7005 | -495.8 | -420.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -7.67 | 240.66 | 42.35 | 254.74 | 0.6944 | -318.0 | -249.1 | |
| 0.00 | 1.82 | 0.00 | 1.24 | -7.06 | 240.43 | 42.12 | 255.50 | 0.6897 | -470.0 | -353.6 | |
| 2.63 | 6.81 | 1.80 | 4.67 | -8.40 | 240.38 | 42.07 | 253.61 | 0.6932 | 712.1 | 504.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -8.32 | 240.12 | 41.81 | 253.62 | 0.6898 | 427.0 | 322.6 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -6.01 | 239.74 | 41.43 | 256.79 | 0.6782 | -414.0 | -263.1 | |
| 3.00 | 325.68 | 2.00 | 211.43 | -4.70 | 239.35 | 41.04 | 258.58 | 0.6698 | 692.2 | -352.8 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -8.76 | 239.40 | 41.08 | 252.73 | 0.6824 | -363.0 | -281.8 | |
| 4.45 | -26.00 | 2.94 | -26.00 | -4.92 | 238.76 | 40.45 | 258.09 | 0.6628 | -663.0 | 999999 | |
| 1.64 | 16.44 | 1.08 | 10.85 | -6.43 | 238.76 | 40.45 | 255.86 | 0.6671 | -414.7 | -325.1 | |
| 0.00 | 2.63 | 0.00 | 1.74 | -5.44 | 238.68 | 40.36 | 257.29 | 0.6632 | -299.0 | -174.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -7.83 | 238.79 | 40.48 | 253.84 | 0.6719 | 651.0 | 599.4 | |
| 10.08 | -26.00 | 6.62 | -26.00 | -4.99 | 238.40 | 40.09 | 257.86 | 0.6585 | -895.5 | 999999 | |
| 0.00 | 3.82 | 0.00 | 2.55 | -8.45 | 238.74 | 40.43 | 252.92 | 0.6734 | -480.0 | -376.0 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -6.14 | 238.45 | 40.14 | 256.18 | 0.6624 | -293.0 | -219.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -8.31 | 238.52 | 40.21 | 253.03 | 0.6702 | -497.0 | -444.5 | |
| 3.63 | -29.00 | 2.39 | -29.00 | -6.41 | 238.28 | 39.97 | 255.72 | 0.6609 | -628.1 | 999999 | |
| 2.63 | -26.00 | 1.72 | -26.00 | -5.53 | 238.04 | 39.73 | 256.94 | 0.6553 | -807.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -7.18 | 238.11 | 39.80 | 254.53 | 0.6612 | -325.0 | -249.3 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -8.39 | 238.25 | 39.94 | 252.81 | 0.6671 | -486.0 | -430.6 | |
| 1.36 | -29.00 | 0.89 | -29.00 | -6.27 | 237.99 | 39.67 | 255.82 | 0.6568 | -624.2 | 999999 | |
| 2.18 | -26.00 | 1.42 | -26.00 | -5.65 | 237.89 | 39.58 | 256.72 | 0.6537 | -750.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -3.52 | 237.71 | 39.40 | 259.89 | 0.6458 | -447.0 | -387.9 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -6.11 | 237.81 | 39.50 | 256.00 | 0.6541 | -515.0 | -430.4 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -8.10 | 237.97 | 39.66 | 253.12 | 0.6626 | -455.0 | -315.1 | |
| 2.82 | -26.00 | 1.83 | -26.00 | -5.73 | 237.66 | 39.35 | 256.52 | 0.6510 | -761.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -10.36 | 238.12 | 39.80 | 249.93 | 0.6727 | -477.0 | -394.3 | |
| 1.54 | 15.44 | 1.01 | 10.11 | -7.65 | 237.68 | 39.37 | 253.67 | 0.6574 | -481.0 | -280.1 | |
| 1.00 | -26.00 | 0.65 | -26.00 | -5.94 | 237.48 | 39.17 | 256.14 | 0.6493 | -732.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -6.22 | 237.50 | 39.19 | 255.73 | 0.6504 | -557.0 | -464.7 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -6.50 | 237.53 | 39.21 | 255.32 | 0.6516 | 110.0 | 100.4 | |
| 2.63 | -26.00 | 1.71 | -26.00 | -5.75 | 237.42 | 39.11 | 256.41 | 0.6480 | -858.9 | 999999 | |
| 1.73 | -47.00 | 1.13 | -47.00 | -7.12 | 237.55 | 39.24 | 254.40 | 0.6539 | -633.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -7.87 | 237.63 | 39.32 | 253.33 | 0.6574 | -395.0 | -325.9 | |
| 0.64 | 7.63 | 0.42 | 5.02 | -8.21 | 237.59 | 39.27 | 252.81 | 0.6581 | -437.0 | 59.2 | |
| 0.00 | 4.72 | 0.00 | 3.12 | -10.01 | 237.42 | 39.11 | 250.11 | 0.6629 | -596.0 | -481.4 | |
| 39.43 | -26.00 | 25.35 | -26.00 | -6.27 | 236.64 | 38.33 | 255.33 | 0.6394 | -1012.5 | 999999 | |
| 59.87 | 304.06 | 38.48 | 195.30 | -7.81 | 236.24 | 37.93 | 252.85 | 0.6395 | -1117.1 | -420.3 | |
| 0.91 | -26.00 | 0.58 | -26.00 | -6.69 | 236.13 | 37.82 | 254.51 | 0.6342 | -823.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -6.50 | 235.41 | 37.10 | 254.51 | 0.6242 | -854.0 | -722.7 | |
| 0.55 | 1.54 | 0.34 | 0.97 | -5.37 | 234.90 | 36.59 | 256.10 | 0.6136 | -697.5 | -623.5 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -4.09 | 234.64 | 36.32 | 258.05 | 0.6062 | -765.0 | -668.8 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -3.87 | 234.47 | 36.16 | 258.35 | 0.6033 | -315.0 | -262.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -5.83 | 234.25 | 35.94 | 255.09 | 0.6064 | -728.0 | -583.9 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -4.69 | 232.79 | 34.48 | 256.37 | 0.5827 | -617.0 | -528.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -7.33 | 232.87 | 34.55 | 252.07 | 0.5934 | -712.0 | -568.0 | |
| 0.00 | 2.09 | 0.00 | 1.27 | -5.18 | 232.56 | 34.25 | 255.47 | 0.5811 | -866.0 | -695.3 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -9.95 | 232.91 | 34.60 | 247.94 | 0.6057 | -578.0 | -464.4 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -9.09 | 232.55 | 34.24 | 249.08 | 0.5970 | -613.0 | -407.3 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -6.13 | 231.59 | 33.27 | 253.43 | 0.5713 | -797.0 | -565.2 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -8.52 | 231.60 | 33.29 | 249.47 | 0.5818 | -761.0 | -653.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -8.86 | 231.49 | 33.17 | 248.86 | 0.5819 | -569.0 | -517.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -13.65 | 231.51 | 33.20 | 241.41 | 0.6082 | -721.0 | -618.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
