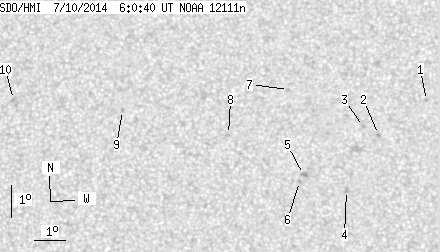

SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.25 | 0.00 | 8.32 | 17.70 | 198.86 | 0.54 | 357.13 | 0.2486 | -440.2 | -379.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.97 | 203.70 | 5.39 | 341.23 | 0.2771 | -739.0 | -523.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.91 | 202.12 | 3.81 | 345.42 | 0.2524 | -969.0 | -785.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.16 | 201.65 | 3.33 | 347.41 | 0.2547 | -766.0 | -628.7 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 16.16 | 201.07 | 2.76 | 347.79 | 0.2193 | -953.0 | -674.1 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 16.67 | 199.71 | 1.39 | 354.00 | 0.2242 | -887.0 | -804.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.45 | 199.58 | 1.27 | 354.46 | 0.2202 | -794.0 | -643.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 19.34 | 199.25 | 0.93 | 356.70 | 0.2688 | -569.0 | -500.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.92 | 197.32 | -1.00 | 3.89 | 0.2449 | -715.0 | -555.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.67 | 193.90 | -4.41 | 15.89 | 0.2675 | 973.0 | 738.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 19.00 | 190.36 | -7.96 | 26.54 | 0.2942 | 1017.0 | 777.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
