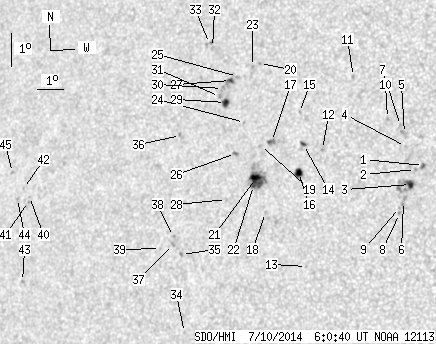

SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.00 | 127.62 | 14.24 | 76.26 | 8.96 | 164.68 | -33.63 | 79.52 | 0.5577 | -146.3 | -162.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.55 | 2.54 | 0.31 | 1.43 | 8.96 | 170.14 | -28.17 | 78.24 | 0.4783 | -1012.2 | -835.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 8.83 | 169.87 | -28.44 | 78.59 | 0.4820 | -893.0 | -669.9 | |
| 3.82 | 15.44 | 2.16 | 8.74 | 8.37 | 169.73 | -28.58 | 79.59 | 0.4831 | -1055.8 | -613.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 9.53 | 169.46 | -28.85 | 77.31 | 0.4898 | -641.0 | -584.1 | |
| 0.00 | 4.27 | 0.00 | 2.43 | 9.92 | 169.39 | -28.93 | 76.53 | 0.4919 | -784.0 | -618.4 | |
| 0.00 | 3.82 | 0.00 | 2.16 | 7.84 | 169.53 | -28.78 | 80.72 | 0.4853 | -730.0 | -701.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 10.16 | 169.22 | -29.09 | 76.11 | 0.4950 | -701.0 | -578.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 7.47 | 169.41 | -28.90 | 81.51 | 0.4864 | -623.0 | -530.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 7.66 | 169.40 | -28.91 | 81.13 | 0.4869 | -546.0 | -439.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 10.36 | 168.74 | -29.57 | 75.88 | 0.5026 | -719.0 | -609.0 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 11.61 | 167.37 | -30.94 | 73.99 | 0.5260 | -530.0 | -444.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 9.34 | 166.50 | -31.81 | 78.52 | 0.5328 | -647.0 | -485.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 5.75 | 166.21 | -32.10 | 85.31 | 0.5326 | -633.0 | -521.8 | |
| 1.27 | 3.54 | 0.75 | 2.09 | 9.47 | 165.79 | -32.52 | 78.45 | 0.5433 | 777.2 | 482.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 10.44 | 165.54 | -32.78 | 76.75 | 0.5491 | -559.0 | -475.5 | |
| 4.91 | 6.81 | 2.89 | 4.01 | 8.60 | 165.70 | -32.62 | 80.06 | 0.5432 | -823.9 | -537.7 | |
| 0.00 | 4.45 | 0.00 | 2.66 | 9.52 | 164.60 | -33.71 | 78.64 | 0.5604 | 946.0 | 831.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 7.34 | 164.59 | -33.72 | 82.53 | 0.5574 | -583.0 | -387.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.38 | 164.21 | -34.10 | 78.97 | 0.5657 | 838.0 | 636.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 11.89 | 163.85 | -34.46 | 74.70 | 0.5762 | 719.0 | 619.8 | |
| 6.63 | 29.89 | 3.98 | 17.91 | 8.37 | 164.13 | -34.18 | 80.77 | 0.5653 | -954.8 | -615.2 | |
| 1.27 | -21.00 | 0.76 | -21.00 | 8.15 | 164.08 | -34.24 | 81.17 | 0.5658 | -762.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 11.79 | 163.60 | -34.71 | 74.95 | 0.5794 | 782.0 | 624.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 10.06 | 163.53 | -34.78 | 77.93 | 0.5766 | 610.0 | 559.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 11.46 | 163.08 | -35.24 | 75.66 | 0.5858 | 674.0 | 592.9 | |
| 0.00 | 2.00 | 0.00 | 1.21 | 9.10 | 163.30 | -35.01 | 79.64 | 0.5781 | -708.0 | -566.0 | |
| 1.73 | 5.63 | 1.06 | 3.45 | 11.33 | 162.83 | -35.48 | 75.95 | 0.5889 | 815.4 | 664.8 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 7.68 | 163.11 | -35.21 | 82.11 | 0.5790 | -404.0 | -343.5 | |
| 3.82 | 6.27 | 2.33 | 3.83 | 10.65 | 162.73 | -35.58 | 77.12 | 0.5888 | 934.6 | 585.3 | |
| 0.00 | 2.00 | 0.00 | 1.23 | 11.07 | 162.56 | -35.75 | 76.45 | 0.5920 | 541.0 | 515.6 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 10.82 | 162.48 | -35.83 | 76.89 | 0.5926 | 684.0 | 573.4 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 12.32 | 161.99 | -36.33 | 74.54 | 0.6027 | 746.0 | 649.1 | |
| 0.00 | 2.82 | 0.00 | 1.75 | 12.43 | 161.85 | -36.46 | 74.39 | 0.6048 | 603.0 | 502.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 3.57 | 161.80 | -36.51 | 89.19 | 0.5961 | -590.0 | -514.4 | |
| 0.00 | 1.64 | 0.00 | 1.01 | 5.94 | 161.54 | -36.77 | 85.21 | 0.5997 | -573.0 | -490.8 | |
| 0.00 | 2.36 | 0.00 | 1.47 | 9.57 | 161.14 | -37.18 | 79.24 | 0.6087 | 504.0 | 590.2 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 6.24 | 161.21 | -37.10 | 84.74 | 0.6044 | -679.0 | -529.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 6.48 | 161.19 | -37.12 | 84.34 | 0.6048 | -701.0 | -597.9 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 6.09 | 160.72 | -37.59 | 85.00 | 0.6111 | -408.0 | -417.0 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 7.46 | 155.29 | -43.02 | 83.18 | 0.6836 | 640.0 | 552.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 7.30 | 155.27 | -43.04 | 83.41 | 0.6838 | 833.0 | 682.4 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 7.69 | 155.01 | -43.30 | 82.86 | 0.6873 | 626.0 | 556.0 | |
| 0.00 | 1.54 | 0.00 | 1.04 | 4.86 | 155.26 | -43.05 | 87.00 | 0.6835 | 671.0 | 451.4 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 7.37 | 154.80 | -43.52 | 83.33 | 0.6898 | 625.0 | 513.9 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 8.16 | 154.48 | -43.83 | 82.22 | 0.6942 | 709.0 | 546.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
