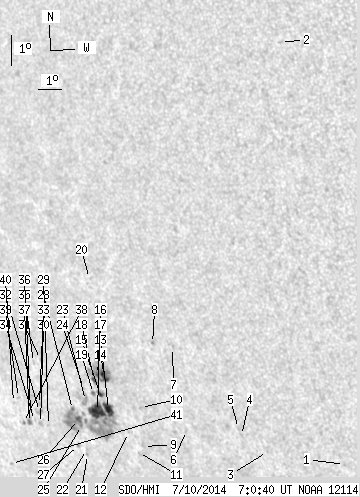

SDO HMI 2014-07-10 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.52 | 203.86 | 35.18 | 169.59 | -19.75 | 149.09 | -48.67 | 118.21 | 0.8037 | 391.5 | 90.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.82 | -21.24 | 159.85 | -37.91 | 125.65 | 0.7071 | 564.0 | 410.6 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -7.68 | 160.04 | -37.72 | 107.05 | 0.6365 | 717.0 | 586.2 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -20.94 | 156.68 | -41.09 | 123.34 | 0.7370 | 664.0 | 597.0 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -20.45 | 155.71 | -42.06 | 122.20 | 0.7441 | 631.0 | 462.1 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -20.22 | 155.65 | -42.11 | 121.89 | 0.7434 | 463.0 | 331.5 | |
| 0.00 | 1.82 | 0.00 | 1.40 | -20.40 | 153.26 | -44.51 | 120.86 | 0.7677 | 120.0 | 197.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -17.65 | 153.56 | -44.20 | 117.67 | 0.7525 | 603.0 | 505.6 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -17.56 | 152.69 | -45.08 | 117.16 | 0.7610 | 749.0 | 632.4 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -21.05 | 150.99 | -46.77 | 120.54 | 0.7918 | 379.0 | 284.4 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -19.73 | 151.37 | -46.39 | 119.17 | 0.7828 | 510.0 | 480.8 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -21.26 | 150.66 | -47.11 | 120.64 | 0.7957 | 348.0 | 371.1 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -20.61 | 150.45 | -47.31 | 119.78 | 0.7950 | 554.0 | 489.8 | |
| 8.63 | 82.40 | 7.06 | 68.32 | -19.88 | 149.78 | -47.98 | 118.63 | 0.7983 | 862.2 | 112.5 | |
| 5.18 | 37.61 | 4.18 | 30.46 | -18.78 | 150.02 | -47.75 | 117.44 | 0.7918 | 946.0 | 380.8 | |
| 2.27 | 5.91 | 1.86 | 4.84 | -19.39 | 149.59 | -48.18 | 117.98 | 0.7982 | 789.8 | 579.4 | |
| 16.63 | -13.00 | 13.79 | -13.00 | -19.97 | 149.20 | -48.56 | 118.50 | 0.8039 | 575.9 | 999999 | |
| 1.36 | -14.00 | 1.11 | -14.00 | -18.73 | 149.70 | -48.07 | 117.25 | 0.7947 | 688.5 | 999999 | |
| 2.09 | -14.00 | 1.71 | -14.00 | -18.94 | 149.47 | -48.29 | 117.40 | 0.7976 | 504.3 | 999999 | |
| 0.82 | -15.00 | 0.67 | -15.00 | -19.38 | 149.25 | -48.51 | 117.82 | 0.8013 | 558.6 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.43 | -15.57 | 150.40 | -47.36 | 113.74 | 0.7764 | 435.0 | 419.0 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -21.47 | 148.04 | -49.72 | 119.73 | 0.8198 | 271.0 | 229.5 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -21.30 | 148.07 | -49.70 | 119.55 | 0.8189 | 426.0 | 262.9 | |
| 0.00 | 5.45 | 0.00 | 4.55 | -19.63 | 148.75 | -49.01 | 117.92 | 0.8068 | 530.0 | 432.9 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -19.23 | 148.82 | -48.95 | 117.48 | 0.8048 | 320.0 | 268.6 | |
| 0.27 | 32.61 | 0.23 | 27.88 | -20.49 | 148.18 | -49.58 | 118.67 | 0.8150 | 370.0 | -94.1 | |
| 3.00 | -25.00 | 2.55 | -25.00 | -20.30 | 148.12 | -49.65 | 118.42 | 0.8149 | 480.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -21.18 | 147.72 | -50.05 | 119.27 | 0.8216 | 255.0 | 195.8 | |
| 0.82 | -25.00 | 0.70 | -25.00 | -19.97 | 147.96 | -49.81 | 117.99 | 0.8152 | 274.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -20.58 | 146.44 | -51.32 | 118.09 | 0.8305 | -727.0 | -619.4 | |
| 0.00 | 2.27 | 0.00 | 2.03 | -20.54 | 146.04 | -51.72 | 117.89 | 0.8338 | -597.0 | -543.1 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -18.38 | 147.01 | -50.76 | 115.77 | 0.8183 | 538.0 | 395.4 | |
| 0.00 | 3.54 | 0.00 | 3.14 | -20.13 | 146.18 | -51.58 | 117.48 | 0.8313 | -692.0 | -608.4 | |
| 0.00 | 2.00 | 0.00 | 1.76 | -19.90 | 146.29 | -51.47 | 117.25 | 0.8296 | -697.0 | -604.1 | |
| 0.00 | 1.73 | 0.00 | 1.55 | -20.46 | 145.77 | -52.00 | 117.69 | 0.8359 | -498.0 | -416.7 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -18.50 | 146.60 | -51.17 | 115.76 | 0.8224 | 334.0 | 257.6 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -20.13 | 145.71 | -52.05 | 117.29 | 0.8353 | -622.0 | -560.7 | |
| 1.09 | 3.63 | 0.99 | 3.28 | -20.54 | 145.46 | -52.31 | 117.67 | 0.8387 | -570.4 | -489.7 | |
| 0.36 | 1.36 | 0.33 | 1.24 | -20.56 | 145.13 | -52.64 | 117.56 | 0.8416 | -449.5 | -387.7 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -19.72 | 145.26 | -52.50 | 116.67 | 0.8379 | -776.0 | -653.4 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -19.91 | 144.91 | -52.86 | 116.75 | 0.8414 | -571.0 | -523.5 | |
| 0.00 | 1.09 | 0.00 | 1.04 | -22.01 | 143.70 | -54.07 | 118.66 | 0.8576 | -484.0 | -401.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
