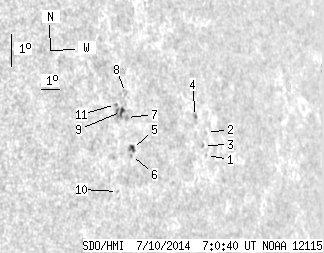

SDO HMI 2014-07-10 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 24.27 | 2.79 | 20.53 | 7.89 | 252.10 | 54.33 | 276.96 | 0.8126 | 118.3 | 168.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.84 | 6.79 | 255.39 | 57.62 | 275.60 | 0.8447 | -460.0 | -342.8 | |
| 0.00 | 0.64 | 0.00 | 0.59 | 7.49 | 255.53 | 57.76 | 276.43 | 0.8460 | -525.0 | -458.7 | |
| 0.00 | 1.64 | 0.00 | 1.50 | 7.10 | 255.28 | 57.51 | 275.98 | 0.8437 | -501.0 | -454.1 | |
| 0.00 | 1.91 | 0.00 | 1.74 | 8.01 | 255.01 | 57.24 | 277.06 | 0.8412 | -607.0 | -510.0 | |
| 1.64 | 4.09 | 1.36 | 3.40 | 7.23 | 251.41 | 53.65 | 276.15 | 0.8058 | 564.9 | 545.5 | |
| 0.00 | 1.00 | 0.00 | 0.83 | 7.02 | 251.32 | 53.56 | 275.89 | 0.8049 | 553.0 | 449.3 | |
| 0.00 | 2.36 | 0.00 | 1.96 | 8.19 | 251.28 | 53.51 | 277.34 | 0.8046 | -230.0 | -190.6 | |
| 0.00 | 3.00 | 0.00 | 2.50 | 8.95 | 251.38 | 53.62 | 278.29 | 0.8059 | 432.0 | 416.5 | |
| 1.73 | 6.45 | 1.43 | 5.32 | 8.38 | 251.06 | 53.29 | 277.59 | 0.8023 | 594.2 | 532.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 5.96 | 250.44 | 52.67 | 274.56 | 0.7956 | 543.0 | 444.5 | |
| 0.00 | 1.27 | 0.00 | 1.04 | 8.61 | 250.79 | 53.03 | 277.89 | 0.7997 | 572.0 | 507.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
