SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.71 | 119.29 | 29.81 | 192.77 | -11.94 | 267.95 | 70.74 | 256.11 | 0.9525 | -56.3 | -101.1 | |
|
previous
or next observation for the same group /

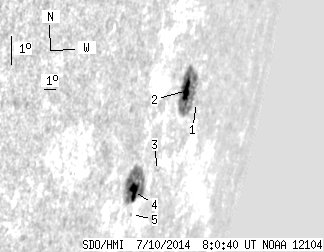

back to the solar disc SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 5.07 | -11.09 | 270.67 | 73.45 | 257.38 | 0.9652 | -110.0 | -142.5 | |
| 8.72 | 59.23 | 14.94 | 102.60 | -10.62 | 269.31 | 72.10 | 257.68 | 0.9586 | 429.7 | 33.9 | |
| 0.00 | 1.18 | 0.00 | 1.91 | -13.05 | 267.96 | 70.74 | 254.97 | 0.9536 | 273.0 | 293.0 | |
| 9.99 | 55.60 | 14.87 | 82.36 | -13.59 | 266.10 | 68.89 | 254.12 | 0.9442 | -554.2 | -283.7 | |
| 0.00 | 0.55 | 0.00 | 0.83 | -14.34 | 266.42 | 69.20 | 253.38 | 0.9466 | -189.0 | -166.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
