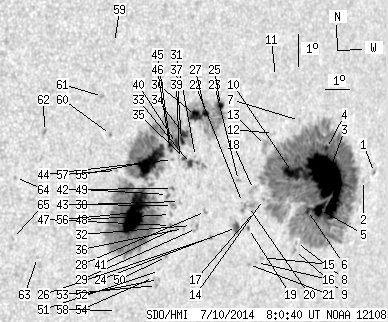

SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 281.35 | 1532.84 | 197.07 | 1074.06 | -7.02 | 241.07 | 43.85 | 256.05 | 0.7095 | 123.7 | 80.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.99 | -7.07 | 246.45 | 49.24 | 257.52 | 0.7721 | -318.0 | -228.4 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -7.30 | 245.97 | 48.75 | 257.11 | 0.7673 | 166.0 | 108.7 | |
| 113.38 | 811.92 | 84.31 | 597.83 | -7.18 | 244.25 | 47.03 | 256.82 | 0.7479 | 1164.8 | 395.1 | |
| 2.27 | -3.00 | 1.68 | -3.00 | -6.21 | 244.13 | 46.91 | 258.06 | 0.7443 | 732.4 | 999999 | |
| 9.81 | -3.00 | 7.30 | -3.00 | -8.10 | 244.06 | 46.84 | 255.56 | 0.7481 | 1015.0 | 999999 | |
| 2.45 | -3.00 | 1.81 | -3.00 | -8.10 | 243.52 | 46.30 | 255.39 | 0.7420 | 966.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.31 | -5.28 | 242.83 | 45.61 | 258.98 | 0.7272 | 258.0 | 217.4 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -9.08 | 243.18 | 45.97 | 254.00 | 0.7408 | 479.0 | 389.4 | |
| 0.00 | 2.18 | 0.00 | 1.60 | -9.33 | 243.14 | 45.92 | 253.66 | 0.7410 | 545.0 | 433.0 | |
| 15.44 | -3.00 | 11.15 | -3.00 | -6.88 | 242.69 | 45.47 | 256.78 | 0.7294 | 1171.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -3.87 | 241.67 | 44.45 | 260.64 | 0.7105 | 611.0 | 464.9 | |
| 0.00 | 2.00 | 0.00 | 1.41 | -5.63 | 241.73 | 44.51 | 258.22 | 0.7150 | 266.0 | 299.0 | |
| 0.00 | 9.36 | 0.00 | 6.58 | -5.98 | 241.42 | 44.20 | 257.64 | 0.7121 | 360.0 | 421.4 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -7.66 | 241.53 | 44.31 | 255.38 | 0.7178 | 870.0 | 747.1 | |
| 0.00 | 1.82 | 0.00 | 1.30 | -9.48 | 241.71 | 44.49 | 252.98 | 0.7252 | 670.0 | 550.0 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -9.62 | 241.51 | 44.30 | 252.72 | 0.7234 | 643.0 | 508.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -8.02 | 241.19 | 43.97 | 254.78 | 0.7148 | 568.0 | 504.7 | |
| 0.00 | 5.27 | 0.00 | 3.70 | -7.33 | 241.05 | 43.84 | 255.68 | 0.7113 | 354.0 | 349.7 | |
| 0.45 | 1.64 | 0.32 | 1.15 | -8.54 | 241.00 | 43.78 | 254.01 | 0.7141 | -469.6 | -439.0 | |
| 0.00 | 8.90 | 0.00 | 6.25 | -7.85 | 240.91 | 43.69 | 254.92 | 0.7110 | 338.0 | 48.8 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -9.67 | 241.18 | 43.96 | 252.54 | 0.7196 | 624.0 | 550.0 | |
| 0.00 | 0.55 | 0.00 | 0.38 | -7.71 | 240.63 | 43.42 | 255.02 | 0.7073 | -482.0 | -289.8 | |
| 0.00 | 2.00 | 0.00 | 1.39 | -7.02 | 240.38 | 43.16 | 255.90 | 0.7023 | -517.0 | -379.9 | |
| 3.82 | 6.72 | 2.67 | 4.70 | -8.48 | 240.48 | 43.26 | 253.91 | 0.7078 | 948.4 | 646.5 | |
| 3.63 | 97.39 | 2.46 | 65.49 | -4.65 | 239.41 | 42.19 | 258.96 | 0.6843 | 640.0 | -25.9 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -8.74 | 239.42 | 42.20 | 253.17 | 0.6960 | -397.0 | -336.8 | |
| 3.45 | -25.00 | 2.32 | -25.00 | -4.87 | 238.80 | 41.59 | 258.48 | 0.6772 | -668.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.36 | -7.92 | 239.11 | 41.89 | 254.21 | 0.6895 | -505.0 | -363.2 | |
| 0.00 | 3.09 | 0.00 | 2.10 | -8.43 | 238.80 | 41.58 | 253.38 | 0.6874 | -387.0 | -385.8 | |
| 9.36 | -25.00 | 6.25 | -25.00 | -4.92 | 238.40 | 41.18 | 258.30 | 0.6722 | -865.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -6.19 | 238.50 | 41.29 | 256.48 | 0.6770 | -383.0 | -282.4 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -8.33 | 238.58 | 41.36 | 253.44 | 0.6844 | -540.0 | -390.6 | |
| 3.00 | 14.63 | 2.01 | 9.81 | -6.39 | 238.32 | 41.10 | 256.12 | 0.6752 | -587.2 | -365.1 | |
| 3.72 | 508.03 | 2.47 | 331.88 | -5.48 | 237.99 | 40.78 | 257.35 | 0.6686 | -769.6 | -446.3 | |
| 1.00 | -33.00 | 0.67 | -33.00 | -6.23 | 238.06 | 40.84 | 256.28 | 0.6715 | -662.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -8.41 | 238.26 | 41.04 | 253.21 | 0.6808 | -390.0 | -389.2 | |
| 2.73 | -34.00 | 1.81 | -34.00 | -5.66 | 237.89 | 40.67 | 257.05 | 0.6677 | -646.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -7.56 | 237.99 | 40.78 | 254.33 | 0.6747 | -233.0 | -178.6 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -6.19 | 237.85 | 40.64 | 256.27 | 0.6688 | -528.0 | -390.8 | |
| 3.36 | -34.00 | 2.23 | -34.00 | -5.75 | 237.69 | 40.47 | 256.86 | 0.6655 | -725.9 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.01 | -8.36 | 237.97 | 40.75 | 253.16 | 0.6770 | -318.0 | -135.8 | |
| 0.45 | 2.00 | 0.30 | 1.33 | -7.14 | 237.66 | 40.45 | 254.82 | 0.6693 | -526.2 | -469.9 | |
| 0.00 | 5.27 | 0.00 | 3.51 | -7.67 | 237.72 | 40.50 | 254.07 | 0.6717 | -542.0 | -374.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -6.24 | 237.57 | 40.36 | 256.10 | 0.6654 | -527.0 | -481.6 | |
| 2.82 | -34.00 | 1.86 | -34.00 | -5.77 | 237.45 | 40.23 | 256.76 | 0.6625 | -888.0 | 999999 | |
| 0.82 | -34.00 | 0.54 | -34.00 | -5.95 | 237.47 | 40.25 | 256.49 | 0.6632 | -671.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.15 | -8.29 | 237.71 | 40.50 | 253.17 | 0.6737 | -443.0 | -315.3 | |
| 0.00 | 1.91 | 0.00 | 1.27 | -7.95 | 237.67 | 40.46 | 253.65 | 0.6720 | -355.0 | -305.4 | |
| 0.00 | 3.82 | 0.00 | 2.53 | -7.32 | 237.48 | 40.26 | 254.49 | 0.6675 | -665.0 | -526.5 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -9.26 | 237.68 | 40.46 | 251.77 | 0.6766 | -477.0 | -323.6 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -9.68 | 237.45 | 40.24 | 251.07 | 0.6754 | -457.0 | -392.7 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -9.96 | 237.45 | 40.24 | 250.67 | 0.6765 | -539.0 | -410.9 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -10.15 | 237.40 | 40.18 | 250.39 | 0.6765 | -573.0 | -422.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -9.89 | 237.24 | 40.02 | 250.68 | 0.6736 | -87.0 | -144.0 | |
| 39.97 | -34.00 | 26.12 | -34.00 | -6.26 | 236.69 | 39.48 | 255.77 | 0.6542 | -997.2 | 999999 | |
| 59.42 | -34.00 | 38.79 | -34.00 | -7.82 | 236.25 | 39.04 | 253.28 | 0.6538 | -1125.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -6.48 | 235.37 | 38.15 | 254.95 | 0.6379 | -852.0 | -680.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -10.87 | 235.90 | 38.68 | 248.68 | 0.6612 | -374.0 | -381.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -2.52 | 235.05 | 37.84 | 261.01 | 0.6227 | -604.0 | -507.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -5.35 | 235.05 | 37.83 | 256.56 | 0.6301 | -798.0 | -672.9 | |
| 0.00 | 1.91 | 0.00 | 1.20 | -4.17 | 234.66 | 37.44 | 258.29 | 0.6215 | -767.0 | -614.7 | |
| 0.00 | 1.91 | 0.00 | 1.17 | -5.15 | 232.51 | 35.29 | 255.93 | 0.5954 | -862.0 | -745.1 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -9.07 | 232.59 | 35.37 | 249.71 | 0.6117 | -589.0 | -483.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -6.54 | 231.52 | 34.31 | 253.24 | 0.5870 | -712.0 | -529.1 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -8.43 | 231.58 | 34.36 | 250.19 | 0.5957 | -799.0 | -615.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
