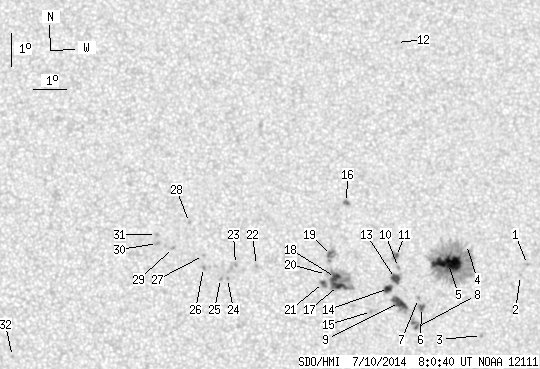

SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.06 | 276.17 | 31.00 | 138.04 | 5.75 | 204.17 | 6.96 | 280.22 | 0.1284 | -259.6 | -182.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.88 | 208.02 | 10.80 | 281.13 | 0.1908 | -943.0 | -815.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.55 | 207.79 | 10.58 | 279.58 | 0.1861 | -807.0 | -673.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 3.74 | 206.55 | 9.34 | 269.62 | 0.1626 | -994.0 | -795.0 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 6.52 | 206.13 | 8.92 | 287.09 | 0.1618 | -35.0 | -36.3 | |
| 27.16 | 150.72 | 13.61 | 75.54 | 5.94 | 205.56 | 8.35 | 284.47 | 0.1498 | -1351.2 | -400.3 | |
| 1.64 | 4.27 | 0.82 | 2.13 | 4.61 | 204.71 | 7.49 | 276.09 | 0.1313 | -1097.9 | -855.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 4.89 | 204.62 | 7.40 | 278.27 | 0.1303 | -795.0 | -663.2 | |
| 0.55 | 6.72 | 0.27 | 3.36 | 4.00 | 204.55 | 7.33 | 271.45 | 0.1279 | -1016.7 | -873.5 | |
| 8.27 | 15.17 | 4.13 | 7.57 | 4.77 | 204.04 | 6.82 | 277.96 | 0.1200 | -1172.1 | -811.2 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.84 | 204.02 | 6.80 | 286.62 | 0.1235 | -914.0 | -668.1 | |
| 1.18 | 5.00 | 0.59 | 2.49 | 6.17 | 203.96 | 6.74 | 289.35 | 0.1243 | -1079.5 | -859.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.73 | 204.10 | 6.88 | 322.95 | 0.1949 | -796.0 | -588.2 | |
| 4.91 | 8.09 | 2.45 | 4.04 | 5.50 | 203.92 | 6.70 | 284.16 | 0.1204 | -1191.1 | -747.9 | |
| 4.09 | 5.72 | 2.04 | 2.85 | 5.20 | 203.70 | 6.48 | 282.04 | 0.1155 | -1173.7 | -861.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.50 | 203.17 | 5.95 | 276.49 | 0.1045 | 955.0 | 814.1 | |
| 0.73 | 2.54 | 0.36 | 1.27 | 7.83 | 202.44 | 5.22 | 307.72 | 0.1145 | 1136.6 | 921.6 | |
| 6.72 | 36.34 | 3.34 | 18.08 | 5.30 | 202.17 | 4.95 | 286.61 | 0.0900 | 1128.9 | 420.9 | |
| 5.45 | -17.00 | 2.71 | -17.00 | 5.55 | 202.08 | 4.86 | 289.52 | 0.0898 | 1283.5 | 999999 | |
| 0.00 | 8.63 | 0.00 | 4.29 | 6.22 | 201.96 | 4.74 | 296.84 | 0.0925 | 912.0 | 825.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.64 | 201.80 | 4.58 | 291.60 | 0.0859 | 594.0 | 587.6 | |
| 1.36 | 4.09 | 0.68 | 2.03 | 5.40 | 201.71 | 4.49 | 289.26 | 0.0829 | 1101.7 | 912.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.93 | 199.65 | 2.44 | 310.66 | 0.0560 | 865.0 | 663.5 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 5.96 | 199.01 | 1.79 | 319.83 | 0.0484 | 1040.0 | 818.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.53 | 198.76 | 1.55 | 317.61 | 0.0400 | 976.0 | 787.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.54 | 198.55 | 1.33 | 321.83 | 0.0376 | 850.0 | 800.6 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 5.87 | 198.03 | 0.81 | 338.23 | 0.0382 | 1101.0 | 898.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.24 | 198.03 | 0.81 | 341.31 | 0.0442 | 883.0 | 691.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.25 | 197.60 | 0.39 | 353.57 | 0.0599 | 992.0 | 731.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.48 | 197.11 | -0.11 | 2.31 | 0.0462 | 1004.0 | 789.3 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 6.61 | 196.62 | -0.60 | 12.16 | 0.0494 | 1155.0 | 920.9 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 6.88 | 196.59 | -0.63 | 11.63 | 0.0542 | 953.0 | 772.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.15 | 192.19 | -5.03 | 97.76 | 0.0888 | 810.0 | 529.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
