SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.81 | 137.09 | 12.17 | 80.99 | 8.82 | 164.56 | -32.66 | 79.56 | 0.5435 | -136.9 | -187.6 | |
|
previous
or next observation for the same group /

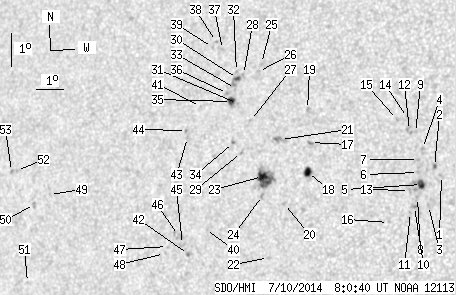

back to the solar disc SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.26 | 8.61 | 170.47 | -26.75 | 78.55 | 0.4559 | -702.0 | -547.1 | |
| 0.55 | 1.64 | 0.30 | 0.91 | 8.88 | 170.21 | -27.01 | 78.06 | 0.4605 | -984.3 | -804.2 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 7.68 | 170.09 | -27.13 | 80.68 | 0.4599 | -733.0 | -586.8 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 9.42 | 169.74 | -27.47 | 77.07 | 0.4689 | -719.0 | -542.2 | |
| 3.82 | 10.27 | 2.13 | 5.75 | 8.32 | 169.80 | -27.42 | 79.39 | 0.4655 | -1054.3 | -697.1 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 8.68 | 169.67 | -27.55 | 78.65 | 0.4683 | -780.0 | -605.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 9.08 | 169.63 | -27.58 | 77.82 | 0.4697 | -737.0 | -574.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 7.92 | 169.69 | -27.53 | 80.28 | 0.4664 | -745.0 | -589.0 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 9.90 | 169.46 | -27.76 | 76.16 | 0.4745 | -797.0 | -630.7 | |
| 0.00 | 2.54 | 0.00 | 1.42 | 7.64 | 169.60 | -27.61 | 80.89 | 0.4672 | -846.0 | -660.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 7.45 | 169.48 | -27.74 | 81.32 | 0.4688 | -484.0 | -403.7 | |
| 0.00 | 4.54 | 0.00 | 2.56 | 9.96 | 169.24 | -27.98 | 76.13 | 0.4778 | -474.0 | -647.9 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 8.12 | 169.39 | -27.82 | 79.92 | 0.4712 | -591.0 | -478.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 10.35 | 169.13 | -28.08 | 75.35 | 0.4806 | -766.0 | -497.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 10.28 | 168.79 | -28.43 | 75.64 | 0.4855 | -734.0 | -580.0 | |
| 0.00 | 0.55 | 0.00 | 0.31 | 7.12 | 168.73 | -28.49 | 82.16 | 0.4797 | -534.0 | -354.5 | |
| 0.00 | 2.09 | 0.00 | 1.22 | 9.48 | 165.76 | -31.46 | 78.17 | 0.5280 | 909.0 | 728.0 | |
| 4.91 | 6.81 | 2.85 | 3.96 | 8.56 | 165.74 | -31.48 | 79.92 | 0.5265 | -850.5 | -558.6 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 10.48 | 165.54 | -31.68 | 76.35 | 0.5334 | -601.0 | -521.6 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 7.58 | 164.99 | -32.23 | 81.89 | 0.5361 | 393.0 | 328.5 | |
| 0.00 | 6.63 | 0.00 | 3.91 | 9.53 | 164.66 | -32.56 | 78.35 | 0.5440 | 1063.0 | 729.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 5.92 | 164.53 | -32.69 | 85.04 | 0.5413 | -760.0 | -528.5 | |
| 6.27 | 26.07 | 3.71 | 15.42 | 8.38 | 164.11 | -33.11 | 80.57 | 0.5499 | -892.3 | -703.1 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 7.80 | 164.16 | -33.05 | 81.62 | 0.5483 | -746.0 | -638.8 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 11.84 | 163.67 | -33.55 | 74.51 | 0.5634 | 586.0 | 495.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 11.59 | 163.59 | -33.62 | 74.97 | 0.5638 | 741.0 | 558.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 10.07 | 163.49 | -33.73 | 77.67 | 0.5618 | 630.0 | 578.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 11.48 | 163.04 | -34.17 | 75.34 | 0.5711 | 569.0 | 503.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.08 | 163.26 | -33.96 | 79.47 | 0.5631 | -786.0 | -572.2 | |
| 1.54 | 6.63 | 0.93 | 4.01 | 11.34 | 162.84 | -34.38 | 75.62 | 0.5737 | 839.6 | 653.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 10.58 | 162.94 | -34.28 | 76.92 | 0.5706 | 753.0 | 671.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 11.56 | 162.77 | -34.45 | 75.28 | 0.5752 | 603.0 | 436.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 11.03 | 162.80 | -34.42 | 76.17 | 0.5735 | 587.0 | 473.3 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.38 | 162.93 | -34.29 | 79.02 | 0.5683 | -556.0 | -446.3 | |
| 3.72 | 6.27 | 2.25 | 3.79 | 10.63 | 162.70 | -34.51 | 76.89 | 0.5739 | 891.9 | 514.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 10.87 | 162.52 | -34.70 | 76.53 | 0.5770 | 620.0 | 540.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.21 | 162.14 | -35.08 | 74.35 | 0.5855 | 726.0 | 626.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 12.45 | 161.88 | -35.34 | 74.03 | 0.5897 | 688.0 | 538.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 12.26 | 161.75 | -35.47 | 74.39 | 0.5909 | 521.0 | 339.8 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 6.69 | 162.14 | -35.08 | 83.84 | 0.5763 | -494.0 | -538.9 | |
| 0.00 | 0.55 | 0.00 | 0.33 | 10.43 | 161.55 | -35.67 | 77.51 | 0.5895 | 535.0 | 440.2 | |
| 0.00 | 2.18 | 0.00 | 1.33 | 5.90 | 161.56 | -35.66 | 85.24 | 0.5841 | -690.0 | -532.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 9.47 | 161.18 | -36.04 | 79.21 | 0.5930 | 661.0 | 616.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 9.68 | 161.11 | -36.11 | 78.87 | 0.5942 | 665.0 | 588.4 | |
| 0.00 | 3.36 | 0.00 | 2.05 | 6.20 | 161.31 | -35.91 | 84.75 | 0.5877 | -554.0 | -472.4 | |
| 0.00 | 6.18 | 0.00 | 3.78 | 6.46 | 161.14 | -36.08 | 84.30 | 0.5903 | -607.0 | -532.6 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 6.11 | 160.74 | -36.47 | 84.92 | 0.5956 | -514.0 | -452.9 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 5.90 | 160.65 | -36.57 | 85.29 | 0.5969 | -416.0 | -369.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 7.51 | 155.94 | -41.27 | 83.00 | 0.6612 | 725.0 | 512.0 | |
| 0.00 | 2.54 | 0.00 | 1.69 | 7.18 | 155.36 | -41.85 | 83.54 | 0.6685 | 756.0 | 629.4 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 4.79 | 155.29 | -41.92 | 87.12 | 0.6689 | 597.0 | 488.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 8.18 | 154.49 | -42.73 | 82.10 | 0.6803 | 660.0 | 525.9 | |
| 0.00 | 1.54 | 0.00 | 1.04 | 8.14 | 154.28 | -42.93 | 82.18 | 0.6829 | 615.0 | 534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
