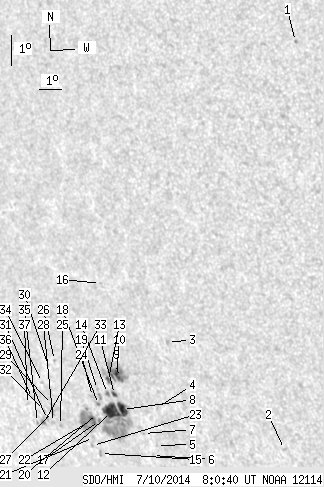

SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.97 | 201.33 | 30.30 | 165.93 | -19.76 | 148.98 | -48.23 | 118.40 | 0.7998 | 361.6 | 109.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.75 | -7.66 | 159.96 | -37.25 | 107.22 | 0.6303 | 684.0 | 592.5 | |
| 0.00 | 2.00 | 0.00 | 1.44 | -20.88 | 156.76 | -40.46 | 123.63 | 0.7305 | 642.0 | 531.7 | |
| 0.00 | 1.91 | 0.00 | 1.44 | -17.54 | 152.69 | -44.53 | 117.38 | 0.7553 | 827.0 | 592.0 | |
| 0.00 | 1.64 | 0.00 | 1.28 | -19.73 | 151.48 | -45.74 | 119.47 | 0.7765 | 507.0 | 394.0 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -21.02 | 150.93 | -46.29 | 120.74 | 0.7872 | 588.0 | 432.4 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -21.37 | 150.60 | -46.62 | 120.99 | 0.7918 | 564.0 | 426.6 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -20.64 | 150.47 | -46.75 | 120.08 | 0.7899 | 569.0 | 478.8 | |
| 8.45 | 90.21 | 6.84 | 73.90 | -19.88 | 149.76 | -47.45 | 118.87 | 0.7934 | 855.6 | 123.2 | |
| 1.27 | 32.61 | 1.02 | 26.13 | -18.81 | 149.98 | -47.23 | 117.71 | 0.7871 | 941.9 | 483.4 | |
| 1.27 | -9.00 | 1.02 | -9.00 | -18.69 | 149.94 | -47.28 | 117.53 | 0.7871 | 1010.6 | 999999 | |
| 1.73 | -8.00 | 1.40 | -8.00 | -19.39 | 149.57 | -47.65 | 118.21 | 0.7933 | 823.4 | 999999 | |
| 16.26 | -8.00 | 13.33 | -8.00 | -19.98 | 149.19 | -48.03 | 118.73 | 0.7990 | 580.7 | 999999 | |
| 1.82 | -9.00 | 1.47 | -9.00 | -18.91 | 149.47 | -47.75 | 117.59 | 0.7924 | 510.2 | 999999 | |
| 0.73 | 2.54 | 0.59 | 2.07 | -19.38 | 149.24 | -47.98 | 118.05 | 0.7963 | 578.0 | 477.2 | |
| 0.00 | 2.09 | 0.00 | 1.78 | -21.44 | 148.01 | -49.20 | 119.92 | 0.8152 | 336.0 | 272.7 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -15.75 | 150.18 | -47.04 | 114.08 | 0.7738 | 479.0 | 425.1 | |
| 0.36 | 31.62 | 0.30 | 26.72 | -20.31 | 148.46 | -48.76 | 118.81 | 0.8070 | 458.5 | -101.5 | |
| 0.45 | 4.36 | 0.38 | 3.60 | -19.77 | 148.64 | -48.58 | 118.26 | 0.8033 | 476.2 | 429.7 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -19.27 | 148.79 | -48.42 | 117.74 | 0.8000 | 357.0 | 312.7 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -20.08 | 148.46 | -48.76 | 118.54 | 0.8061 | 309.0 | 244.2 | |
| 0.00 | 1.73 | 0.00 | 1.46 | -20.91 | 147.90 | -49.32 | 119.26 | 0.8142 | -158.0 | -134.3 | |
| 3.45 | -17.00 | 2.90 | -17.00 | -20.30 | 148.12 | -49.10 | 118.65 | 0.8100 | 479.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -21.18 | 147.73 | -49.49 | 119.51 | 0.8168 | 285.0 | 256.4 | |
| 0.00 | 1.91 | 0.00 | 1.58 | -19.52 | 148.45 | -48.77 | 117.89 | 0.8042 | -143.0 | -123.1 | |
| 0.00 | 1.27 | 0.00 | 1.11 | -20.59 | 146.36 | -50.86 | 118.28 | 0.8265 | -696.0 | -614.8 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -18.41 | 147.00 | -50.21 | 116.02 | 0.8135 | 588.0 | 489.1 | |
| 0.00 | 3.54 | 0.00 | 3.10 | -20.13 | 146.21 | -51.01 | 117.70 | 0.8263 | -746.0 | -588.0 | |
| 0.00 | 1.64 | 0.00 | 1.44 | -20.51 | 146.04 | -51.18 | 118.06 | 0.8291 | -622.0 | -558.4 | |
| 0.00 | 1.82 | 0.00 | 1.58 | -19.90 | 146.27 | -50.95 | 117.45 | 0.8251 | -743.0 | -642.5 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -18.60 | 146.62 | -50.59 | 116.09 | 0.8176 | 359.0 | 249.9 | |
| 0.00 | 1.27 | 0.00 | 1.13 | -20.42 | 145.76 | -51.46 | 117.86 | 0.8311 | -650.0 | -470.4 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -20.13 | 145.74 | -51.47 | 117.51 | 0.8303 | -594.0 | -551.2 | |
| 1.18 | 3.63 | 1.05 | 3.24 | -20.54 | 145.50 | -51.72 | 117.88 | 0.8338 | -552.6 | -497.0 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -19.18 | 146.07 | -51.15 | 116.56 | 0.8245 | 146.0 | 108.6 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -20.55 | 145.17 | -52.05 | 117.78 | 0.8366 | -400.0 | -377.7 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -19.75 | 145.29 | -51.93 | 116.92 | 0.8331 | -728.0 | -654.2 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -19.97 | 144.92 | -52.30 | 117.03 | 0.8369 | -573.0 | -526.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
