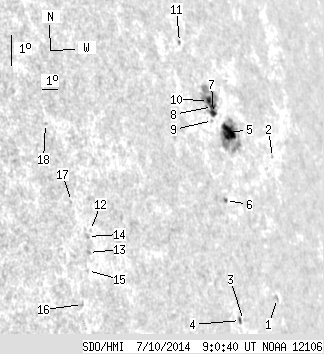

SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.54 | 99.47 | 29.15 | 115.74 | 14.16 | 261.56 | 64.89 | 283.84 | 0.9052 | -305.2 | -129.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 2.18 | 9.09 | 263.85 | 67.18 | 278.24 | 0.9213 | -410.0 | -328.0 | |
| 0.00 | 1.00 | 0.00 | 1.36 | 13.37 | 265.57 | 68.90 | 282.85 | 0.9325 | -429.0 | -345.9 | |
| 0.00 | 1.09 | 0.00 | 1.24 | 8.58 | 261.08 | 64.41 | 277.67 | 0.9016 | -167.0 | -117.5 | |
| 0.82 | 2.18 | 0.92 | 2.45 | 8.59 | 260.87 | 64.20 | 277.69 | 0.9001 | 70.7 | 136.8 | |
| 15.54 | 48.60 | 18.69 | 58.60 | 14.34 | 262.51 | 65.84 | 284.00 | 0.9128 | -510.6 | -109.7 | |
| 0.73 | 2.18 | 0.83 | 2.49 | 12.29 | 261.22 | 64.55 | 281.79 | 0.9031 | -460.9 | -378.9 | |
| 2.91 | 32.34 | 3.40 | 37.79 | 14.98 | 261.74 | 65.07 | 284.74 | 0.9076 | -562.6 | -259.3 | |
| 2.00 | -7.00 | 2.34 | -7.00 | 15.20 | 261.79 | 65.12 | 284.98 | 0.9080 | -477.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.37 | 14.77 | 261.54 | 64.87 | 284.52 | 0.9061 | -553.0 | -463.5 | |
| 2.54 | -7.00 | 2.97 | -7.00 | 15.40 | 261.61 | 64.94 | 285.21 | 0.9068 | -577.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.23 | 17.29 | 260.63 | 63.96 | 287.37 | 0.9007 | 32.0 | 36.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 11.86 | 252.51 | 55.84 | 281.73 | 0.8292 | 394.0 | 372.3 | |
| 0.00 | 1.82 | 0.00 | 1.59 | 11.20 | 252.20 | 55.53 | 280.95 | 0.8258 | 292.0 | 311.1 | |
| 0.00 | 2.36 | 0.00 | 2.07 | 11.69 | 252.29 | 55.62 | 281.53 | 0.8270 | 652.0 | 501.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 10.65 | 251.99 | 55.32 | 280.30 | 0.8235 | 589.0 | 485.7 | |
| 0.00 | 1.45 | 0.00 | 1.24 | 9.63 | 251.45 | 54.78 | 279.08 | 0.8178 | 599.0 | 457.9 | |
| 0.00 | 0.91 | 0.00 | 0.79 | 12.80 | 251.76 | 55.09 | 282.93 | 0.8226 | 525.0 | 440.1 | |
| 0.00 | 1.00 | 0.00 | 0.86 | 15.27 | 251.22 | 54.55 | 285.99 | 0.8196 | 522.0 | 471.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
