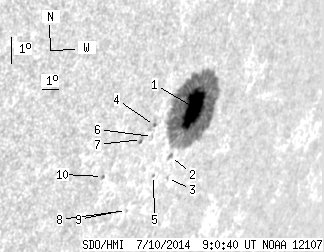

SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.88 | 279.80 | 47.76 | 284.61 | -19.16 | 253.93 | 57.26 | 245.51 | 0.8750 | 738.3 | 196.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.88 | 266.82 | 47.76 | 271.83 | -19.09 | 254.01 | 57.34 | 245.62 | 0.8754 | 855.5 | 201.1 | |
| 0.00 | 3.00 | 0.00 | 3.05 | -20.68 | 253.52 | 56.85 | 243.73 | 0.8755 | 506.0 | 323.8 | |
| 0.00 | 1.00 | 0.00 | 1.03 | -21.43 | 253.78 | 57.11 | 242.99 | 0.8793 | 467.0 | 333.9 | |
| 0.00 | 1.45 | 0.00 | 1.41 | -19.56 | 251.97 | 55.30 | 244.46 | 0.8606 | 564.0 | 569.8 | |
| 0.00 | 1.09 | 0.00 | 1.10 | -21.27 | 252.85 | 56.18 | 242.86 | 0.8719 | 165.0 | 261.2 | |
| 0.00 | 1.18 | 0.00 | 1.15 | -19.93 | 252.05 | 55.38 | 244.08 | 0.8622 | 512.0 | 361.5 | |
| 0.00 | 2.54 | 0.00 | 2.43 | -19.99 | 251.45 | 54.78 | 243.81 | 0.8576 | -133.0 | -154.9 | |
| 0.00 | 0.36 | 0.00 | 0.36 | -22.39 | 251.92 | 55.25 | 241.33 | 0.8679 | -236.0 | -255.5 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -22.39 | 251.41 | 54.74 | 241.15 | 0.8639 | -418.0 | -356.8 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -21.13 | 249.87 | 53.20 | 241.99 | 0.8480 | -381.0 | -439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
