SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.91 | 0.00 | 5.66 | -25.17 | 196.23 | -0.44 | 180.84 | 0.4972 | 49.8 | -67.3 | |
|
previous
or next observation for the same group /

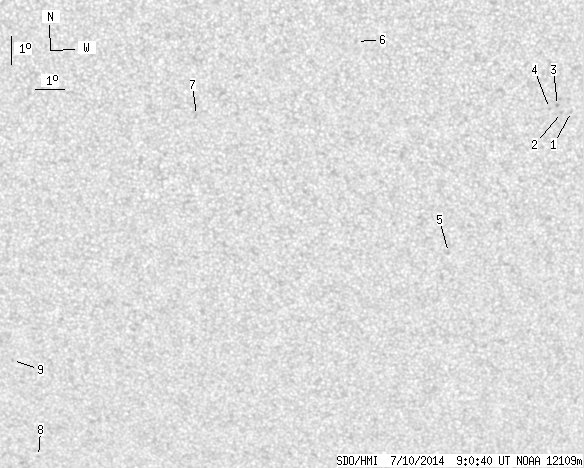

back to the solar disc SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.01 | 203.93 | 7.26 | 195.06 | 0.4530 | 704.0 | 640.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -22.04 | 203.60 | 6.93 | 194.39 | 0.4522 | 771.0 | 664.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.80 | 203.46 | 6.79 | 194.24 | 0.4480 | 932.0 | 699.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.90 | 203.20 | 6.53 | 193.66 | 0.4486 | 731.0 | 571.9 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -26.87 | 199.99 | 3.32 | 185.78 | 0.5153 | -411.0 | -418.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.62 | 196.85 | 0.18 | 180.42 | 0.4000 | -809.0 | -643.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -22.11 | 191.57 | -5.10 | 169.35 | 0.4471 | -746.0 | -624.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -34.49 | 185.00 | -11.67 | 164.94 | 0.6436 | -82.0 | -104.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -30.85 | 184.54 | -12.13 | 162.38 | 0.5982 | -642.0 | -538.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
