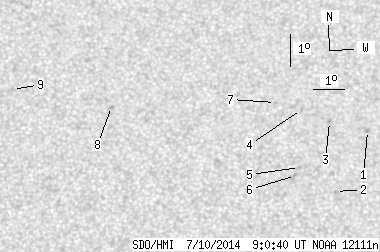

SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.73 | 0.00 | 6.00 | 17.94 | 198.78 | 2.11 | 351.38 | 0.2541 | -489.8 | -392.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.97 | 202.19 | 5.52 | 339.47 | 0.2619 | -923.0 | -803.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.07 | 201.11 | 4.44 | 340.65 | 0.2255 | -944.0 | -682.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 18.26 | 200.97 | 4.30 | 344.04 | 0.2602 | -894.0 | -735.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 18.65 | 200.08 | 3.41 | 347.56 | 0.2627 | -757.0 | -581.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.82 | 199.98 | 3.31 | 346.18 | 0.2323 | -852.0 | -723.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.57 | 199.85 | 3.18 | 346.45 | 0.2277 | -848.0 | -772.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 18.87 | 199.25 | 2.58 | 350.68 | 0.2638 | -857.0 | -621.9 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 18.75 | 193.96 | -2.71 | 9.86 | 0.2622 | 782.0 | 634.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 19.27 | 190.75 | -5.92 | 20.08 | 0.2848 | 885.0 | 645.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
